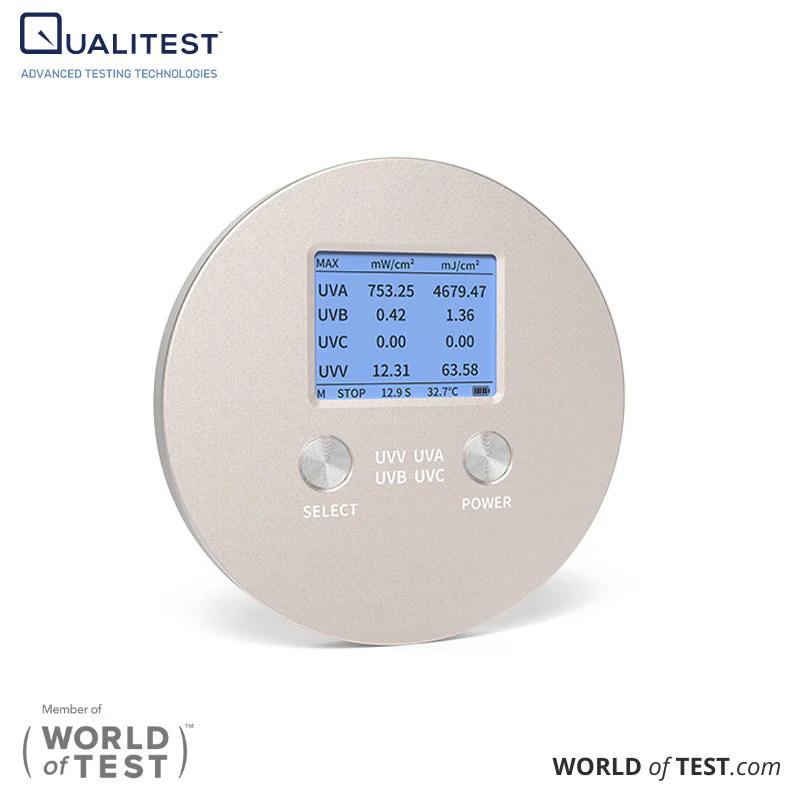

UV Puck Profiler – QualiUV-4Band measures UV energy, intensity, temperature, and exposure time across four bands (UVA, UVB, UVC, and UVV). It is ideal for testing UV intensity in curing machines, dryers, coating systems, exposure units, and printing equipment. The device also detects UV energy, intensity, and temperature in various light sources, including mercury, halogen, gallium, iron, and xenon lamps.

Measurement Standards Compliance

Meets verification requirements for ultraviolet radiometers
Complies with industry standards for UV-curable offset inks

UV Puck Profiler - QualiUV-4Band Features

Simultaneously Measure UVA, UVB, UVC, and UVV
The smart UV Puck Profiler automatically detects the test wavelength range and measures UV power and energy across all four bands (UVA, UVB, UVC, and UVV) at the same time. It enables users to monitor both surface curing (UVC) and deep curing (UVA/UVV) wavelengths, improving process control, product quality, and production speed.

Large LCD Display
The device features a large, easy-to-read LCD screen for real-time monitoring of temperature and UV power. It clearly displays test curves along with peak and minimum values for accurate analysis.

Ultra-High-Speed Data Capture
With a sampling rate of 2,048 measurements per second, the system delivers precise UV energy calculations through rapid data acquisition.

High-Temperature Resistant Design
Features a precision fast-response temperature sensor for real-time monitoring of actual curing chamber temperatures.

Precision Temperature Monitoring
Equipped with a high-accuracy, rapid-response temperature sensor that provides real-time measurements of curing chamber conditions.

Integrated Timer Function
Precisely tracks UV exposure duration to ensure consistent curing times, enabling reliable quality control and process documentation.

Certified Measurement Accuracy
This professional UV energy analyzer delivers precise measurements across all UV wavelengths, with certification from national metrology laboratories to ensure compliance with industry standards.
Advanced PC Software Integration
Features a USB Type-C interface for seamless connectivity with companion software. The powerful desktop application enables:
• Detailed data analysis and visualization
• Customizable test report generation
• Professional-grade graphing and printing capabilities

Dual Measurement Modes
Switch between automatic and manual operation to adapt to different testing requirements and environments.

Automatic Measurement Mode
In this mode, the system precisely tracks curing duration while simultaneously displaying real-time light intensity trends.

Manual Measurement Mode
Enables detailed analysis of combined UV light source distribution via power curve measurement, ideal for multi-source configurations.

Multiple Functions Can Be Set
Users can freely adjust measurement bands, units, smoothing, and other settings to meet diverse needs.

Selectable measurement bands
230–445nm full-band UV measurement
Built-in large-capacity memory: records up to 60,000 power data and 3,800 temperature data points
Last test data is automatically displayed after power-on — no risk of data loss

UV Puck Profiler - QualiUV-4Band Technical Specifications

Parameter	Value
Spectral Range	UVC：230nm-280nm λp = 254nm； UVB：280nm-315nm λp = 310nm； UVA：315nm-400nm λp = 365nm； UVV：395nm-445nm λp = 420nm；
Power Measuring Range	0 - 2000 mW/cm²
Power Resolution	0.01 mW/cm²
Energy Measuring Range	0 - 999999mJ/cm²
Measuring Accuracy(H is the Standard Value)	H<5mW/cm²: ±0.5mW/cm² H>=5mW/cm²: ±10%H, ±5% (typical)
Temperature Measuring Range	-55°C - +125°C
Sampling Speed	2048 times/second
Power Data Storage Interval	32 times/second
Temperature Data Storage Interval	2 times/second
Recording Period	32 min
Power Supply	2 AAA alkaline dry batteries
Display	Dot matrix LCD
Dimension	Diameter 120mm * thickness 13mm
Weight	225g

Packing

No.	Description	Quantity	Unit
1	UV Puck Profiler	1	pcs
2	USB Cable	1	pcs
3	Anti-static Gloves	1	pcs
4	Small Cross Screwdriver	1	pcs
5	User Manual	1	pcs
6	Calibration Report	1	pcs
7	Certificate/Warranty Card	1	pcs
8	Plastic Case	1	pcs
