Dual-Technology Precision for Paint & Coating Inspection
The QualiCTG-I Coating Thickness Gauge is a professional-grade Dry Film Thickness (DFT) meter designed for non-destructive measurement. Featuring a versatile **Fe/NFe integrated probe**, it automatically detects the substrate type to measure non-magnetic coatings (paint, plastic, zinc) on steel and insulating coatings (anodizing, paint) on non-ferrous metals like aluminum and copper.
Equipped with a highly durable Ruby-Tipped Sensor, the QualiCTG-I ensures wear resistance and long-term stability. With a reaction time of under 0.5 seconds and USB data transfer, it is the ideal tool for high-volume automotive inspection and industrial quality control.
Industrial Applications
Rapidly detect repainted panels and measure clear coat thickness on both steel and aluminum car bodies.
Measure galvanizing (zinc) on steel, chrome plating, and anodized layers on aluminum hardware.
Verify powder coating thickness and thin films on appliance parts and metal furniture.
Key Features & Advantages
-
✔

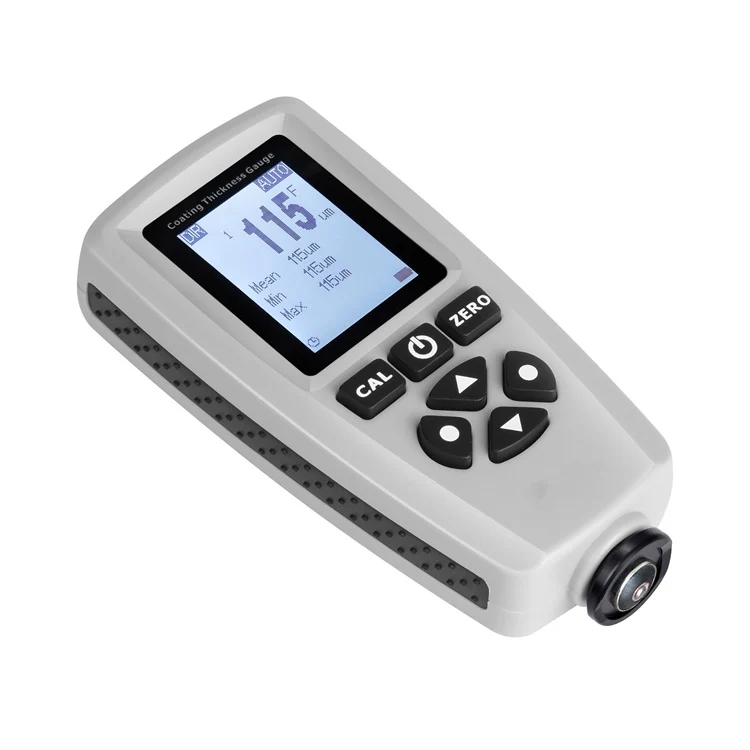

Ruby Wear-Resistant Probe: Unlike standard plastic tips, the ruby contact point prevents wear, maintaining accuracy over thousands of measurements on rough surfaces.
-
✔
Automatic Substrate Recognition: Simply place the probe on the surface. The device instantly switches between Magnetic Induction (Fe) and Eddy Current (NFe) modes.
-
✔

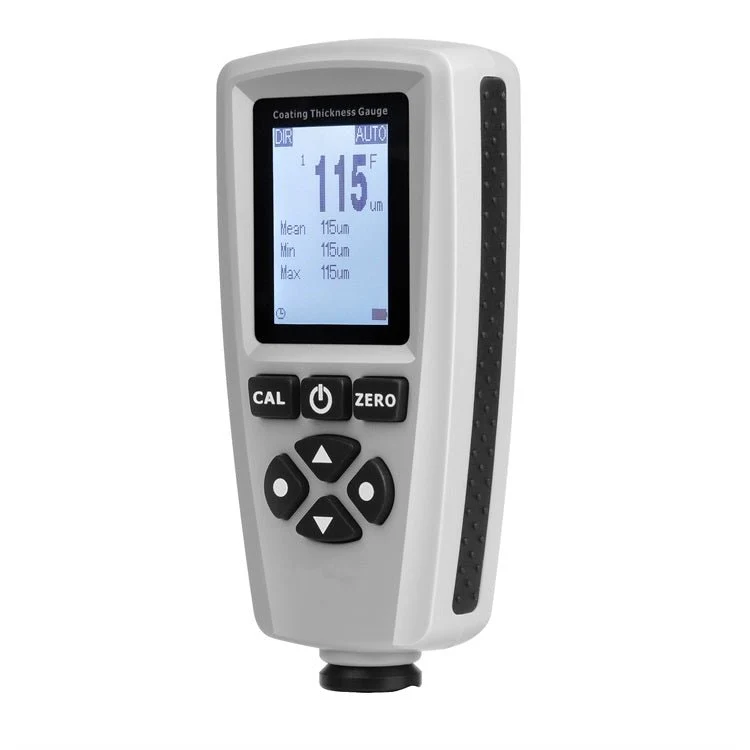

Smart Data Analysis: View real-time statistics (Max, Min, Avg) directly on the screen. The Red Backlight Alarm alerts you instantly if a reading is outside your preset tolerance limits.
-
✔

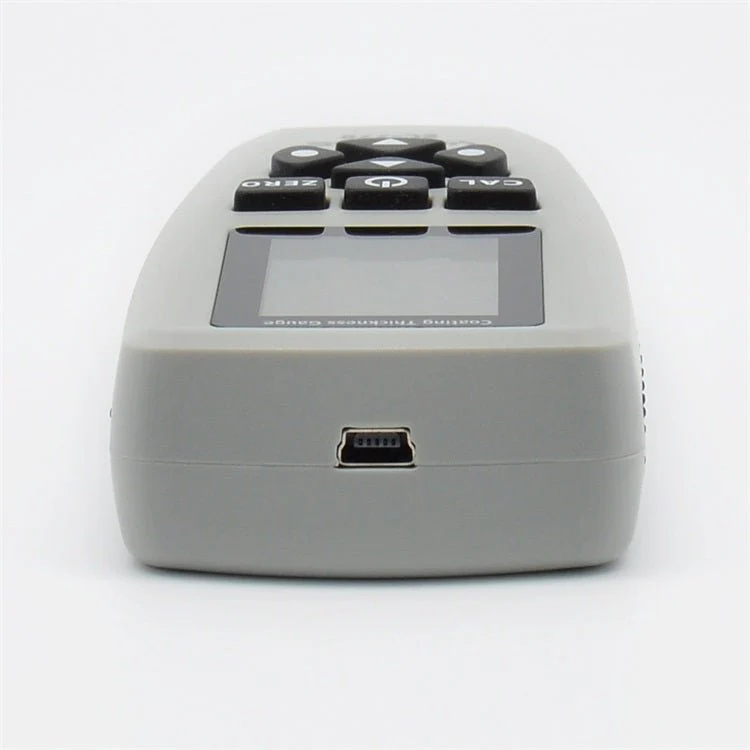

USB Data Connectivity: Store up to 320 measurements and transfer them easily to a PC via USB for reporting and archiving.
-
✔
Versatile Units: Switch between microns (μm), millimeters (mm), and mils with a single button press.
Technical Specifications
| Measuring Principle | Fe: Magnetic Induction | NFe: Eddy Current |
| Measuring Range | 0 ~ 2000 μm (0 ~ 78.7 mils) |
| Accuracy | ± (2.5% + 1μm) |
| Resolution | 0.1μm (< 100μm) | 1μm (≥ 100μm) |
| Min. Measurement Area | Ø 15mm |
| Min. Substrate Thickness | Fe: 0.30mm | NFe: 0.05mm |
| Min. Curvature Radius | Convex: 5mm | Concave: 25mm |
| Memory | 320 Internal Readings + USB Output |
| Response Time | < 0.5 Seconds |
| Power Supply | 2x 1.5V AAA Alkaline Batteries |
| Dimensions & Weight | 114 x 53 x 25 mm | 80g |

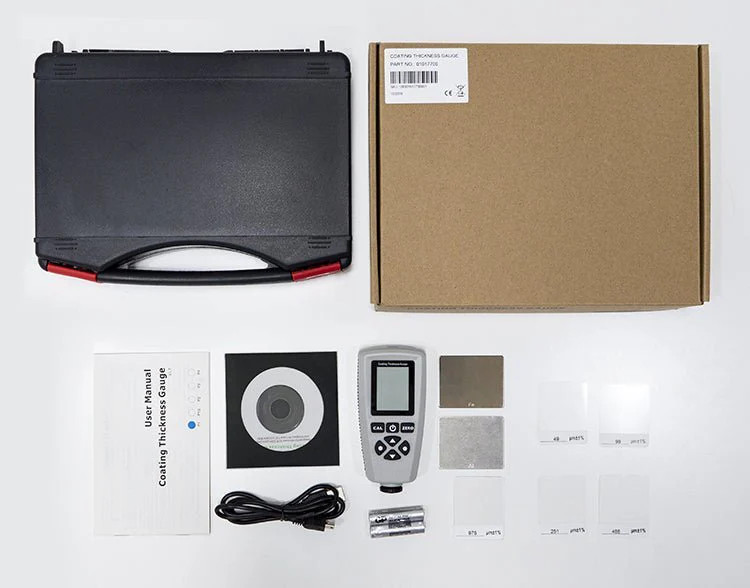

What's in the Box?
Maintenance Note:
- Avoid sun exposure.
- Avoid direct contact with corrosive chemicals.
- Avoid dropping on floor.
