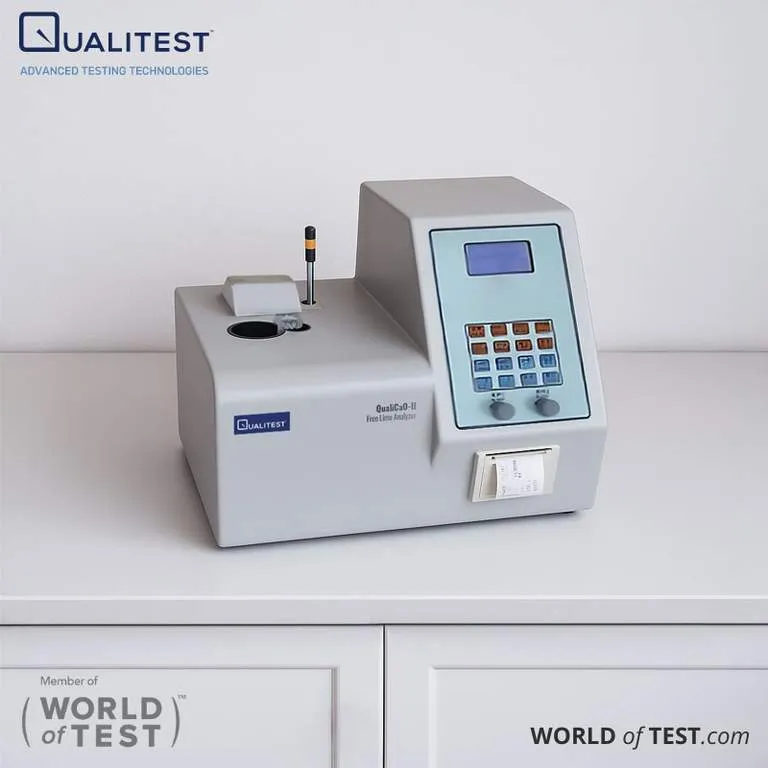

Free Lime Analyzer QualiCaO™ II
The Free Lime Analyzer QualiCaO™ II is an advanced solution for precise cement quality assessment, specifically designed for rapid measurement of fCaO (free calcium oxide). Accurate monitoring of free lime is essential for maintaining consistent cement quality and process stability in production environments.
This system measures fCaO using electrical conductivity technology, removing inaccuracies associated with traditional titration techniques and improving overall measurement reliability. The fully automated testing process delivers results within minutes, supporting fast and efficient quality control operations.
With features such as automatic result display, printing, and alarm notifications, the QualiCaO™ II reduces manual workload and testing time while enhancing operational efficiency. It serves as a reliable tool for maintaining consistent production standards and improving overall process control.
Free Lime Analyzer QualiCaO™ II Technical Specifications
| Voltage | 220V/50HZ (110V is also available) |
|---|---|
| Motor | Stepless adjust |
| Power | 500W |
| Work environment temperature | 5~40℃ |
| Working condition relative humidity | 50~85% |
| Time | 1~99 minutes (default 5 minutes) |
| Temperature | 0~99℃ (default 80℃) |
| Temperature error | ±1℃ |
| Conductivity type | DJS-1 type platinum black electrode |
| Electrode constant | Constant is 1, the electrode with 0.9-1.1 range are in constant on 1 range |
| Measuring range | fCaO within 4.0%, but more than 3.0% have exceeded according to the national standards |
| Weight | 5 kg |
| Electrical conductivity | 0 ~ 2000 μs/cm |
| Conductance resolution | 1 μs/cm |
| Accuracy | 1 μs/cm |
| Average speed | 5 ℃ / min |
Description
Free Lime Analyzer QualiCaO™ II
The Free Lime Analyzer QualiCaO™ II is an advanced solution for precise cement quality assessment, specifically designed for rapid measurement of fCaO (free calcium oxide). Accurate monitoring of free lime is essential for maintaining consistent cement quality and process stability in production environments.
This system measures fCaO using electrical conductivity technology, removing inaccuracies associated with traditional titration techniques and improving overall measurement reliability. The fully automated testing process delivers results within minutes, supporting fast and efficient quality control operations.
With features such as automatic result display, printing, and alarm notifications, the QualiCaO™ II reduces manual workload and testing time while enhancing operational efficiency. It serves as a reliable tool for maintaining consistent production standards and improving overall process control.
Free Lime Analyzer QualiCaO™ II Technical Specifications
| Voltage | 220V/50HZ (110V is also available) |
|---|---|
| Motor | Stepless adjust |
| Power | 500W |
| Work environment temperature | 5~40℃ |
| Working condition relative humidity | 50~85% |
| Time | 1~99 minutes (default 5 minutes) |
| Temperature | 0~99℃ (default 80℃) |
| Temperature error | ±1℃ |
| Conductivity type | DJS-1 type platinum black electrode |
| Electrode constant | Constant is 1, the electrode with 0.9-1.1 range are in constant on 1 range |
| Measuring range | fCaO within 4.0%, but more than 3.0% have exceeded according to the national standards |
| Weight | 5 kg |
| Electrical conductivity | 0 ~ 2000 μs/cm |
| Conductance resolution | 1 μs/cm |
| Accuracy | 1 μs/cm |
| Average speed | 5 ℃ / min |
