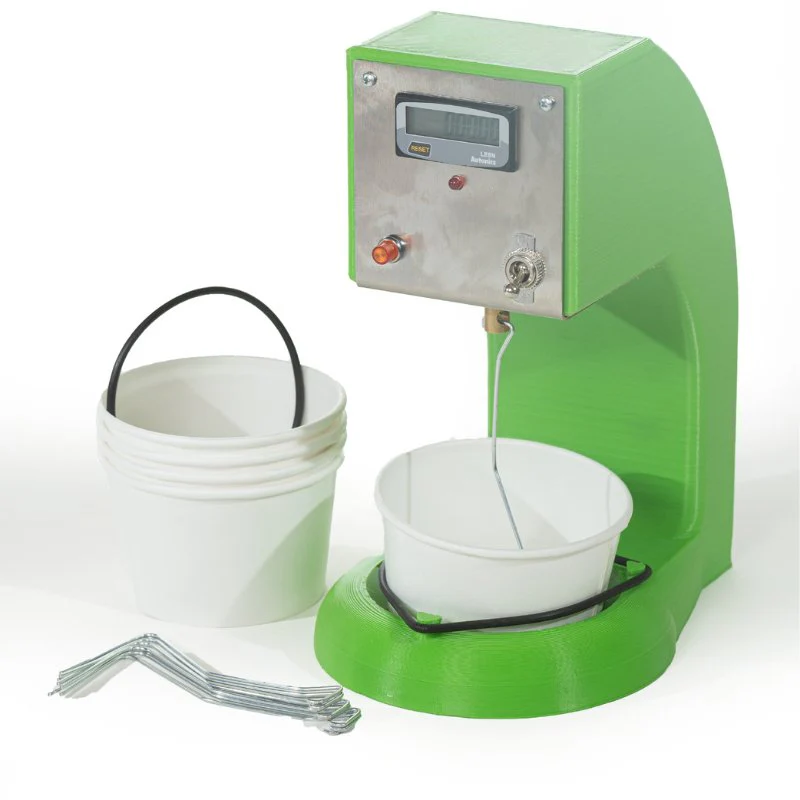

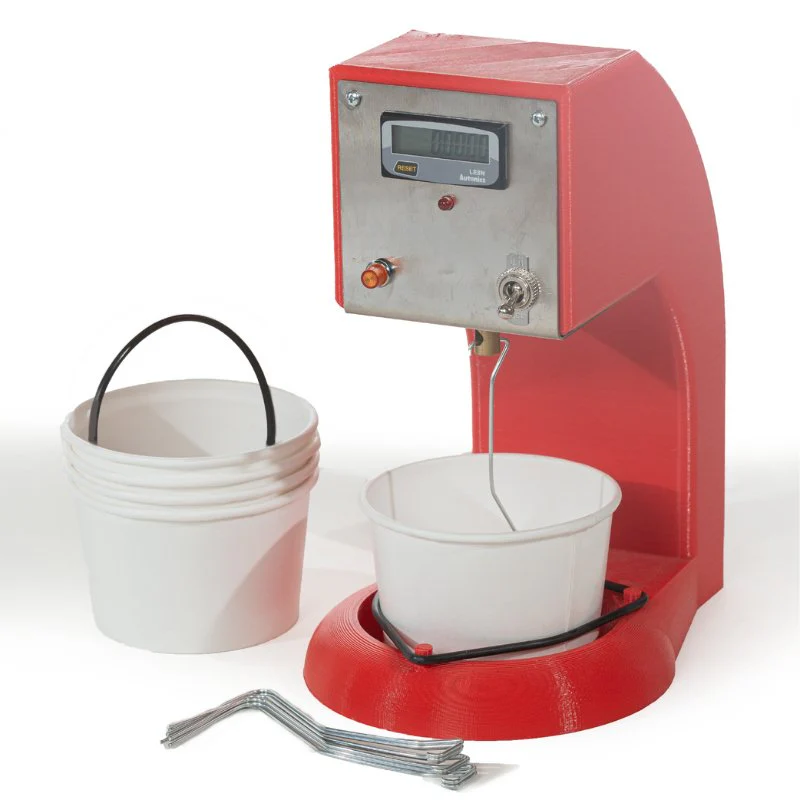

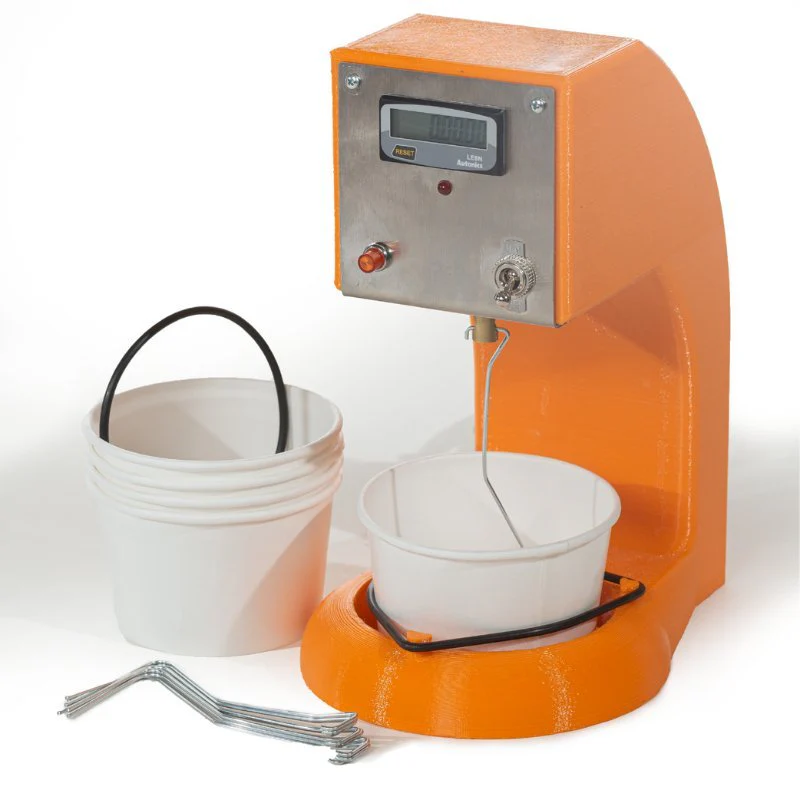

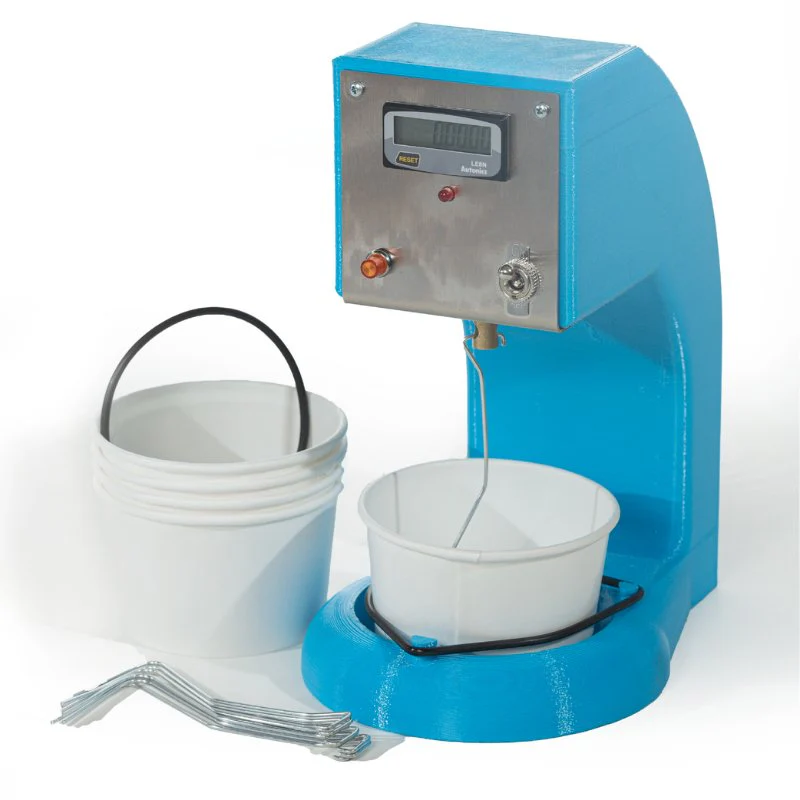

Gel Timer - Basic Version



Gel Timer - Basic Version

The Qualitest gel timer basic version is a dedicated instrument for determining the gel time of various materials that solidify at room temperature, including resinous plastics, adhesives, and two component elastomers. This basic gel tester employs a low torque, synchronized motor that rotates a specially designed stirrer within the sample. As the material transitions from liquid to solid, the increasing viscous drag surpasses the motor's minimal torque, automatically stopping the rotation to provide a definitive and repeatable test endpoint.

Upon stoppage, the integrated digital timer locks, clearly displaying the total elapsed gel time in hours, minutes, and seconds. A crucial advantage of this gel timer basic model is its data retention capability; the result remains on screen even if the unit is powered down, preventing data loss before being recorded. This user friendly basic gel tester is an invaluable asset for any quality control process where precise gelation timing is essential for process validation and final product integrity.

EASY OPERATION

Using this device is a breeze. Begin by pouring your prepared material sample into the disposable paper cup. Next, place the paper cup into the unit's base by rotating it within the O-ring holder until it's fully seated. Insert the disposable wire stirrer's bottom into the cup and attach the top to the drive spindle. Set the elapsed timer to "zero" and switch on the unit. Once gelation occurs, simply note the time, and then dispose of the cup and stirrer. Notably, the Gel Timer's gear motor can remain inactive for brief periods without any adverse effects.

NO MESS! NO TOOLS NEEDED! NO CLEANUP!

This robust gel timer utilizes cost-effective wire stirrers and disposable paper cups. It doesn't require any specialized skills to operate. Plus, it's proudly designed and manufactured in the USA, offering extended and practical service in laboratory or shop settings.

Gel Timer - Basic Version Technical Specifications:

Maximum recording time:	9999 hours, 59 minutes, and 59 seconds
Minimum recording time:	1 second
Stir speed:	20rpm
Accuracy:	+/- 2%
Electrical requirements:	110v/60Hz or 220v/50Hz
Electrical connection:	3-wire grounded cord set
Dimensions:	12 L x 10 H x 8 W (Inches)
Shipping Weight:	6 pounds
