Gloss Meter Micro-TRI-Gloss µ with F/NF Thickness Gauge 20° 60° 85°

Gloss Meter Micro-TRI-Gloss S 20°, 60°, 85°

Three Angle Gloss Meter

Universal gloss meter plus film thickness measurement

• Fast gloss and film thickness control -  at the same position
• 20, 60 and 85° for high gloss to matte coatings

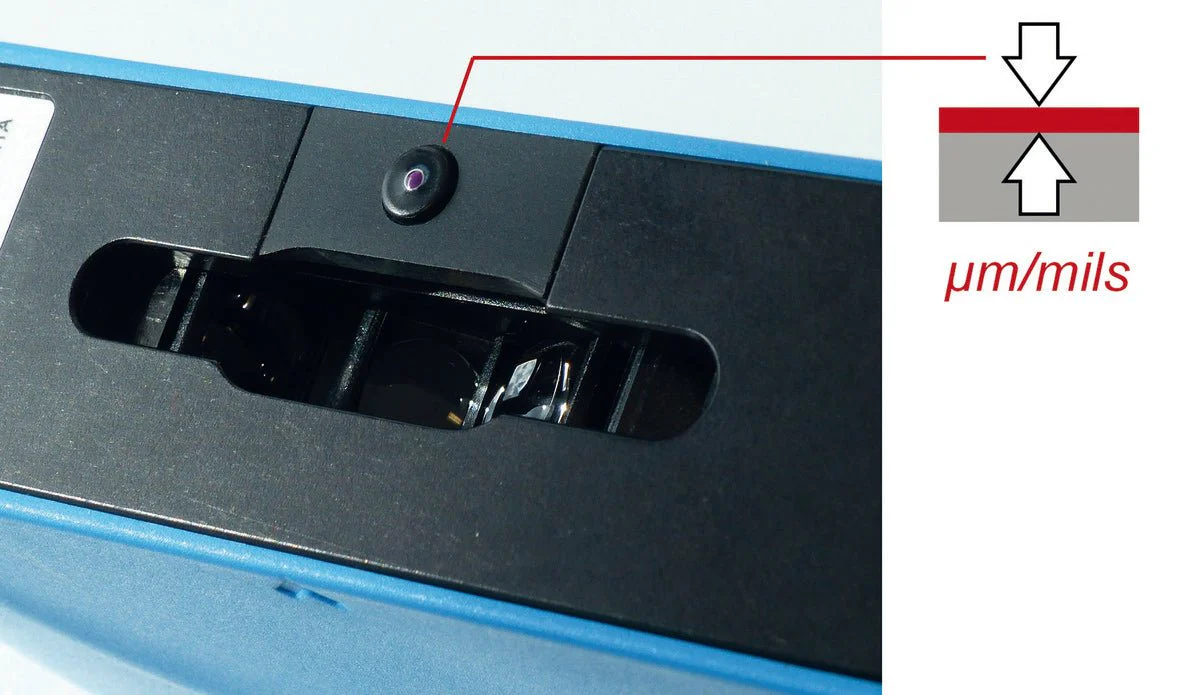

• Fe/NFe sensor measures on ferrous and non-magnetic metal substrates

Introducing the Micro-TRI-Gloss:

Your Comprehensive Gloss Measurement Solution

Our advanced Gloss Meter, equipped with three measurement geometries (20°, 60°, and 85°), provides unparalleled accuracy in gloss assessment across a wide range — from matte to high gloss. Achieve compliance with international standards effortlessly and swiftly detect variations in quality.

Experience the epitome of gloss measurement precision and efficiency with our Micro-TRI-Gloss, the ultimate tool for assessing gloss variations comprehensively.

Gloss Meter Micro-TRI-Gloss S 20°, 60°, 85° Key Features:

• Combined 20°, 60°, and 85° angles in one unit for a comprehensive gloss assessment
• Versatility across various materials: paints, plastics, and mirror-like metals
• Simultaneous measurement and results for efficient analysis
• Intelligent gloss measurement with seamless communication
• Exceptional repeatability and inter-instrument agreement for reliable readings
• Smart auto-diagnosis ensures consistently accurate results

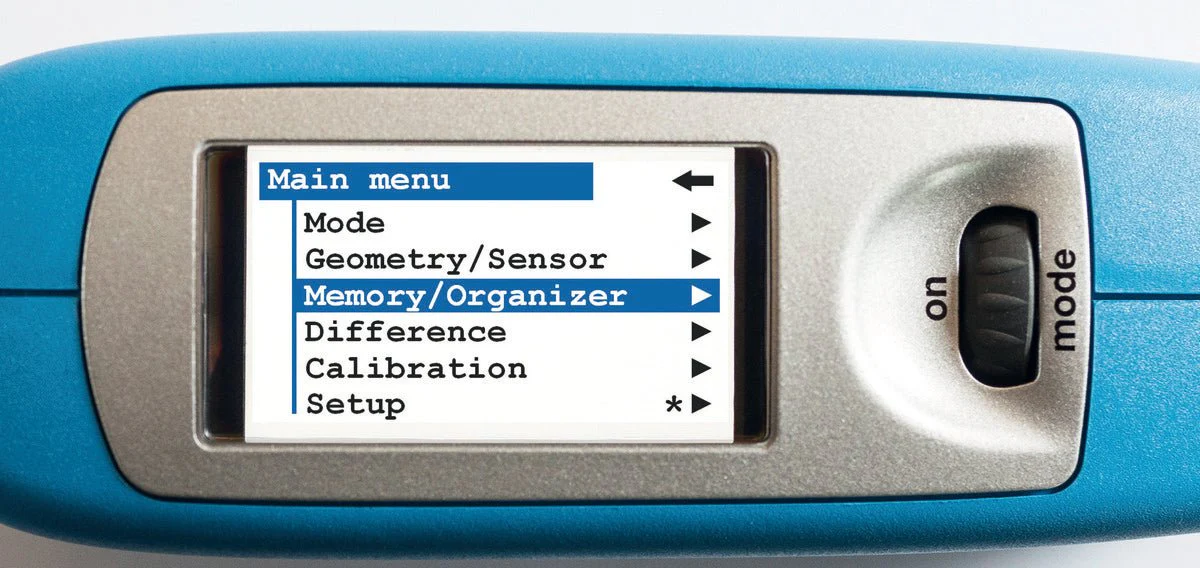

• Vivid color display for easy reading and user-friendly operation

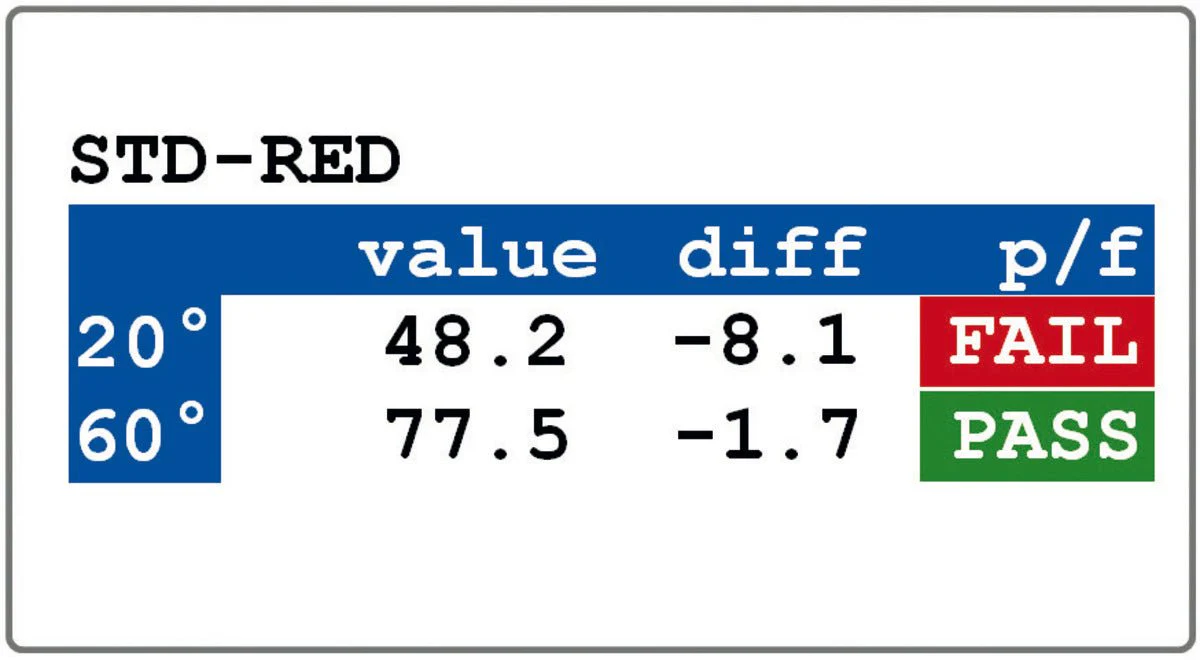

• Comprehensive features: Statistics, Pass/Fail, and Memory, ideal for rigorous quality control and field checks
• Continuous mode for assessing uniformity over large surface areas

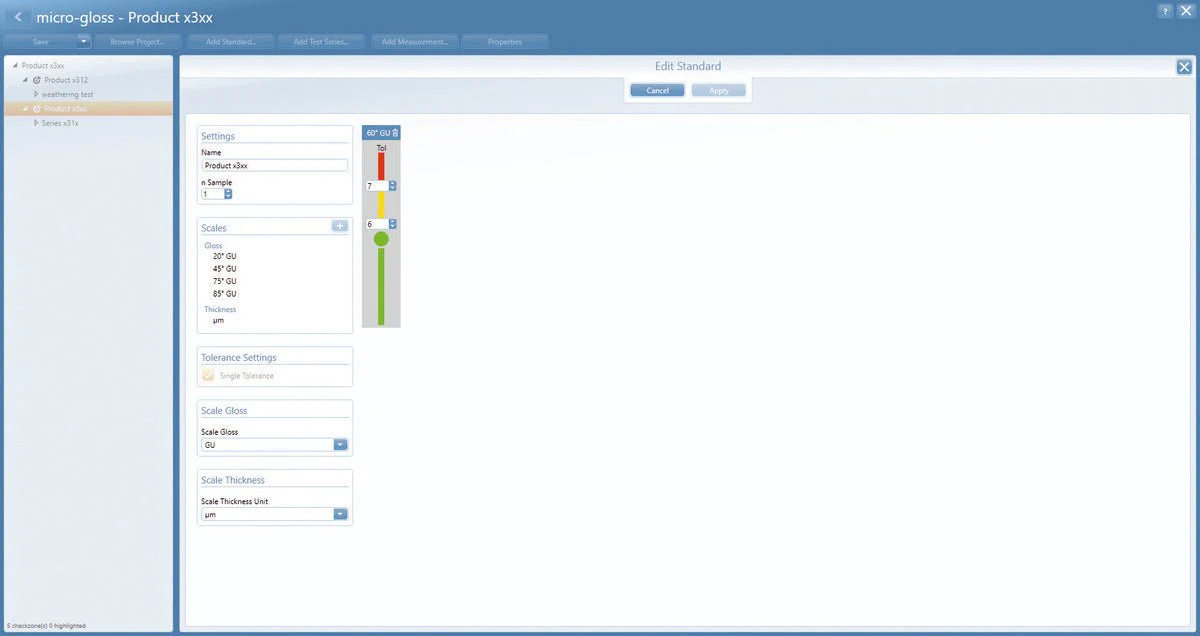

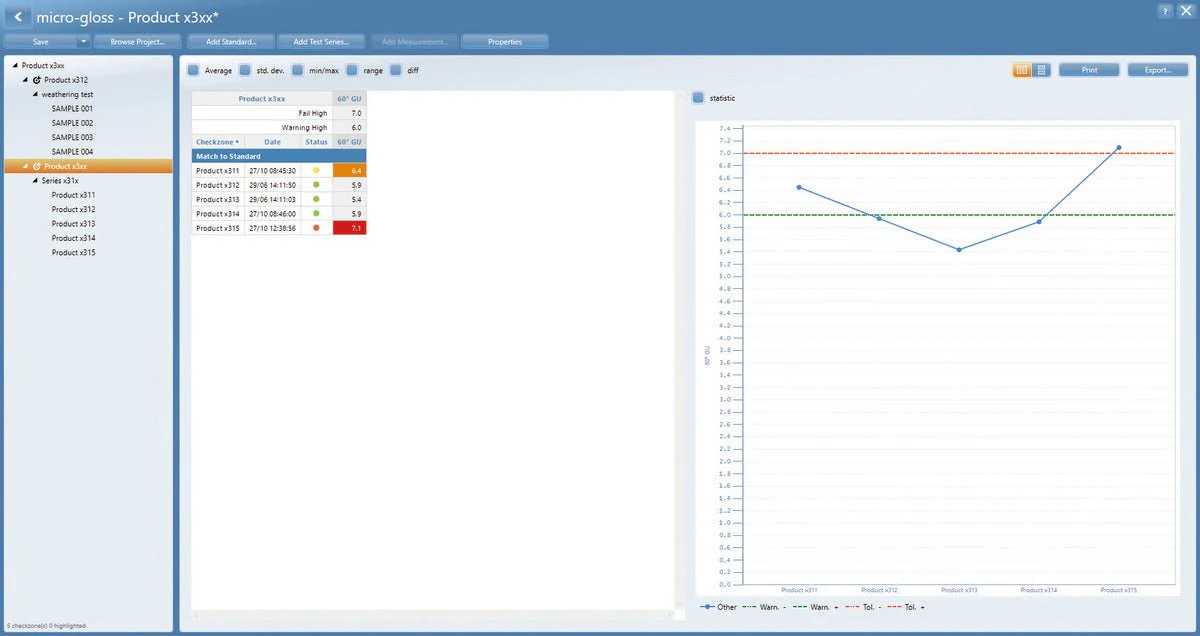

• Utilize smart-chart software for instant QC reports, featuring trend graphs and customizable Pass/Fail limits

Experience the pinnacle of gloss measurement accuracy and efficiency with our Gloss Meter, your go-to solution for superior gloss analysis.

Gloss Meter Micro-TRI-Gloss S 20°, 60°, 85° Standard Package includes:

1. Glossmeter

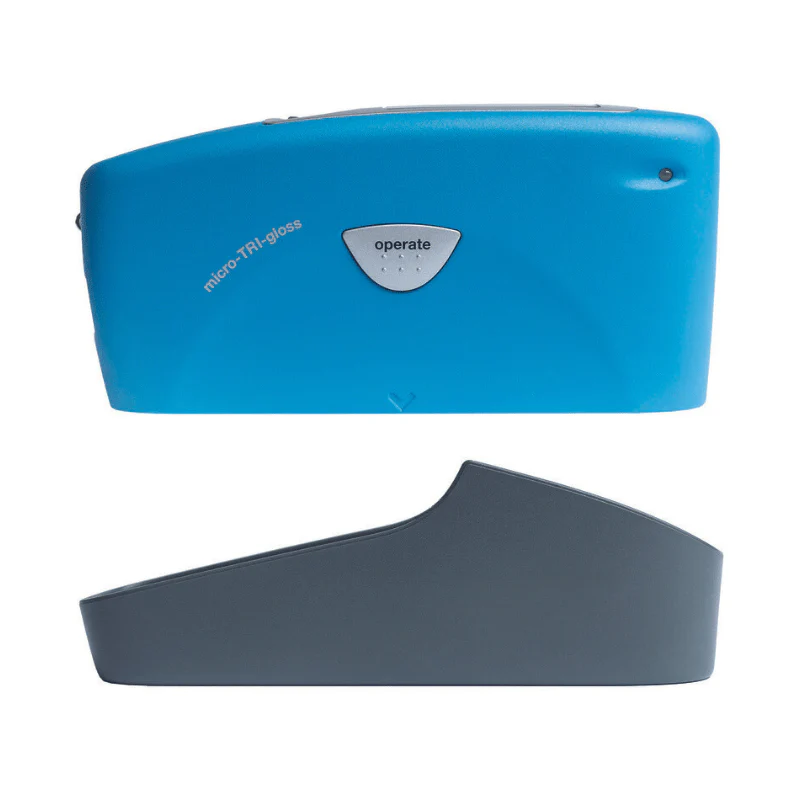

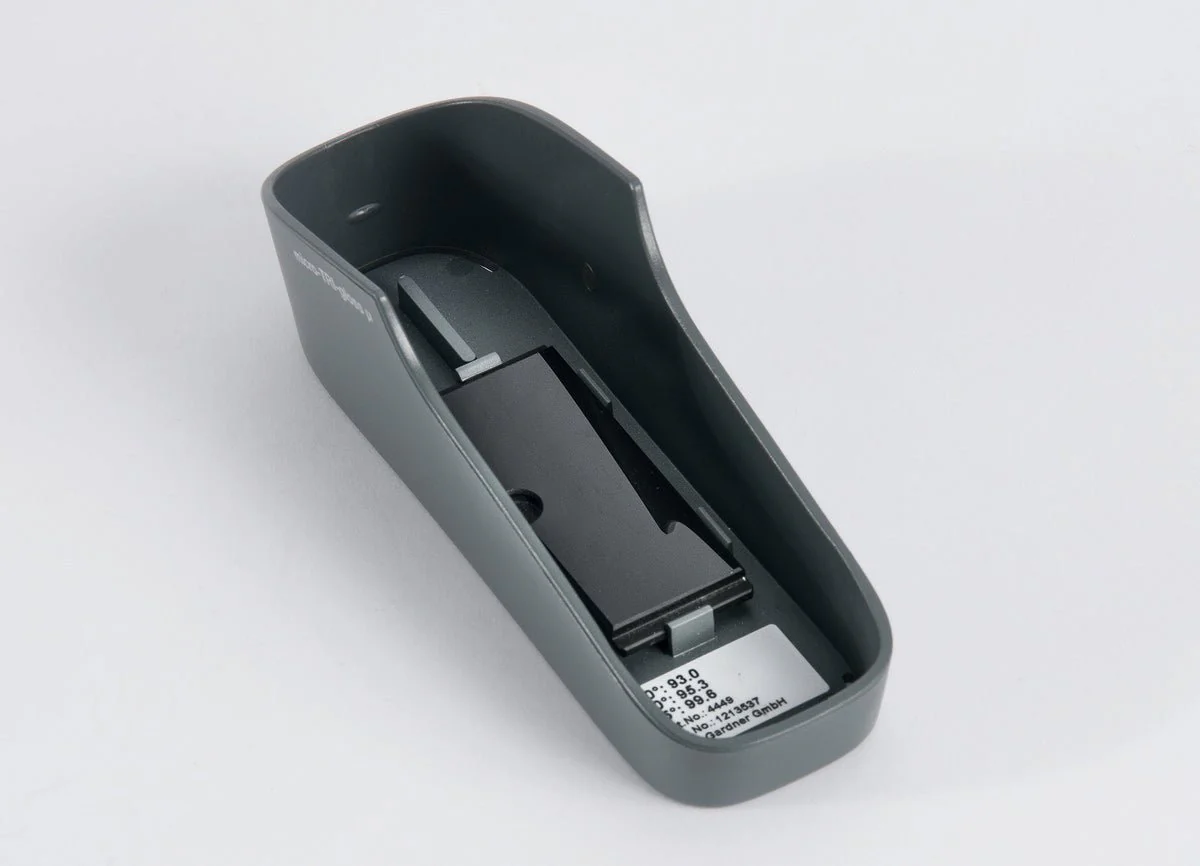

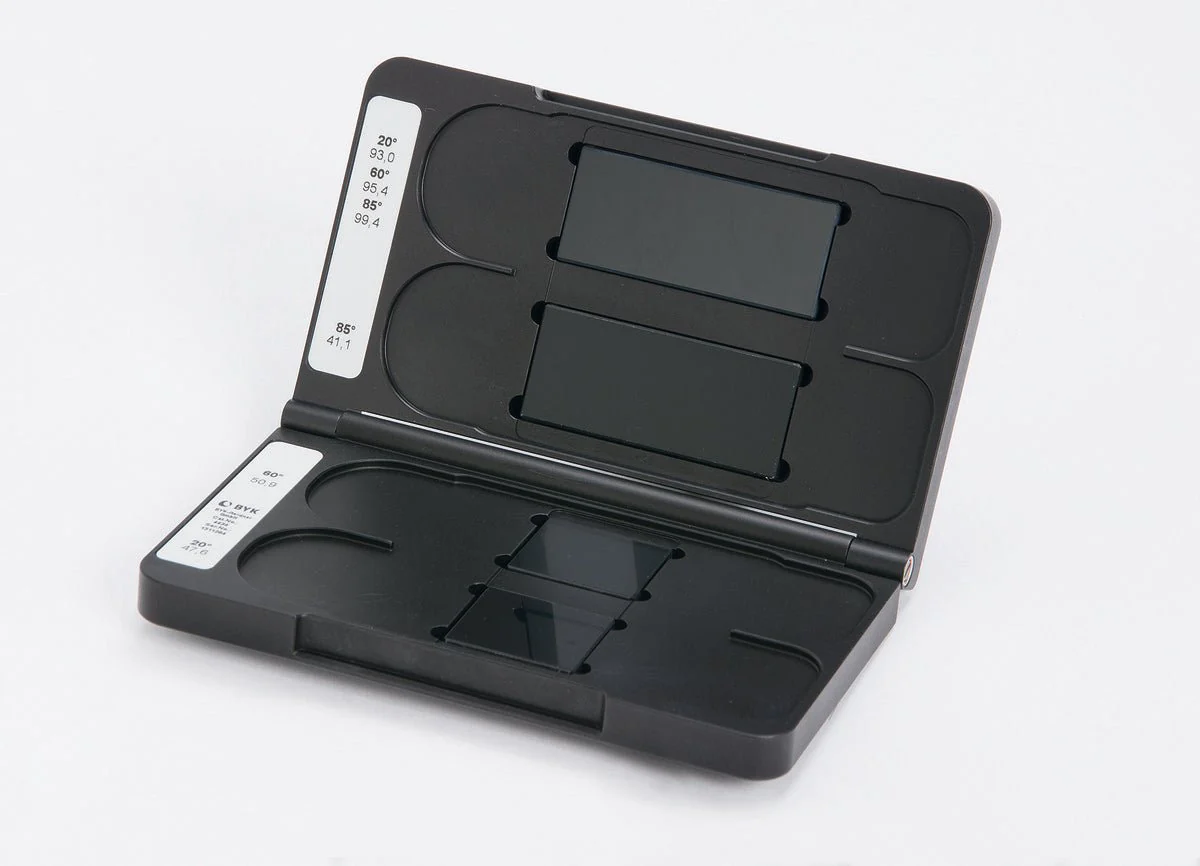

2. Calibration holder TRI µ (4449)
3. Zero standards Fe and NFe
4. USB-cable micro-gloss (4405)
5. Software with 2 licenses for download:
6. smart-lab Gloss (4866) or smart-process Gloss (4867)
7. Battery
8. Traceable certificate
9. Manual
10. Carrying case

Gloss Meter Micro-TRI-Gloss S 20°, 60°, 85° Technical Specifications:

Geometry	20°, 60°, 85°
Application	Universal
Measuring Area	20°:  10 x 10 mm 60°:  9 x 15 mm 85°:  5 x 38 mm
Measuring Area	20°:  0.4 x 0.4 in 60°:  0.35 x 0.6 in 85°:  0.2 x 1.5 in
Gloss Measurement
Measuring Range	20°:  0 - 2000 GU 60°:  0 - 1000 GU 85°:  0 - 160 GU
Repeatability	0 - 100 GU:  ± 0.2 GU 100 - 2000 GU:  ± 0.2 %
Reproducibility	0 - 100 GU:  ± 0.5 GU 100 - 2000 GU:  ± 0.5 %
Spectral sensitivity	CIE standard observer for illuminant CIE-C
Thickness Measurment
Substrate	Fe: magnetic, NFe: non-magnetic
Measuring Range	0 - 500 µm
Measuring Range	0 - 20 mil
Accuracy	± (1.5 µm +2% of measured value)
General
Measuring time	0.5 seconds/geometry
Memory	999 readings with date and time
Interface	USB
Languages	English French German Italian Spanish
Power supply	one 1.5V AA Alkaline Battery, or via USB port
Battery Capacity	4,000 readings
Weight	0.4 kg
Weight	0.9 lb
Operating temperature	15 - 40 °C
Operating temperature	60 - 104 °F
Relative humidity	up to 85 %, non-condensing
Dimensions: L x W x H	15.5 x 4.8 x 7.3 cm
Dimensions: L x W x H	6.1 x 1.9 x 2.9 in
