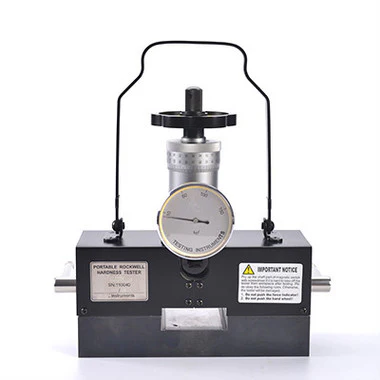

Hardness Tester - Magnetic Rockwell QualiMag-R

The Portable Hardness Tester - Magnetic Type QualiMag-R - Magnetic Rockwell Hardness Tester Rockwell test head fixes to the surface of iron and steel parts to test the hardness by applying magnetic force.

Meant to replace Leeb hardness testers which are not as accurate nor reliable. Use the Portable Hardness Tester - Magnetic Type QualiMag-R - Magnetic Rockwell Hardness Tester on steel parts, steel plates, steel pipes, forgings, large to medium sized heat treated parts(if surface available), welding joints, pressure vessels, etc. The Portable Hardness Tester - Magnetic Type QualiMag-R - Magnetic Rockwell Hardness Tester Rockwell complies with Standards ISO 6508 and ASTM E18.

Magnetic Rockwell Hardness Tester - QualiMag-R Features

• Conveniently attach to one side of sample without having to relocate to calculate readings
• Quick and non-destructive testing
• Measurements are easy to read, in micrometers, and accurate with good repeatability
• Complies to ISO 6508 and ASTM E18

Magnetic Rockwell Hardness Tester - QualiMag-R Technical Specifications

Item	Description
Preliminary test force	10kg
Total test force	60kg, 100kg, 150kg
Test head	120° diamond cone indenter, 1.588mm hard alloy ball
Indication Error	complying with ISO 6508 and ASTM E18
Repeatability Error	complying with ISO 6508 and ASTM E18
Test Resolution	0.5HR
Weight	4.7kg
Surface	Flat: Area≥180mm×60mm, Thickness≥5mm Cylinder: Diameter≥60mm, Length≥200mm, Thickness≥8mm
Configuration	Standard: Tester, 120° diamond cone indenter, 1.588mm hard alloy ball, adapter, microscope with light, and carrying case. Optional: Rockwell hardness block (HRB, HRC high value, HRC middle value, HRC low value) and Special Adapter (customized by required size)
