Portable Rockwell Hardness Tester – C-Clamp Type QHR-CC-Series

Portable Rockwell Hardness Tester – C-Clamp Type QHR-CC Series is an enhanced version of a portable Rockwell hardness tester, featuring a C-shaped frame, screw arbor, and test head.

Portable Rockwell Hardness Tester – C-Clamp Type QHR-CC-Series

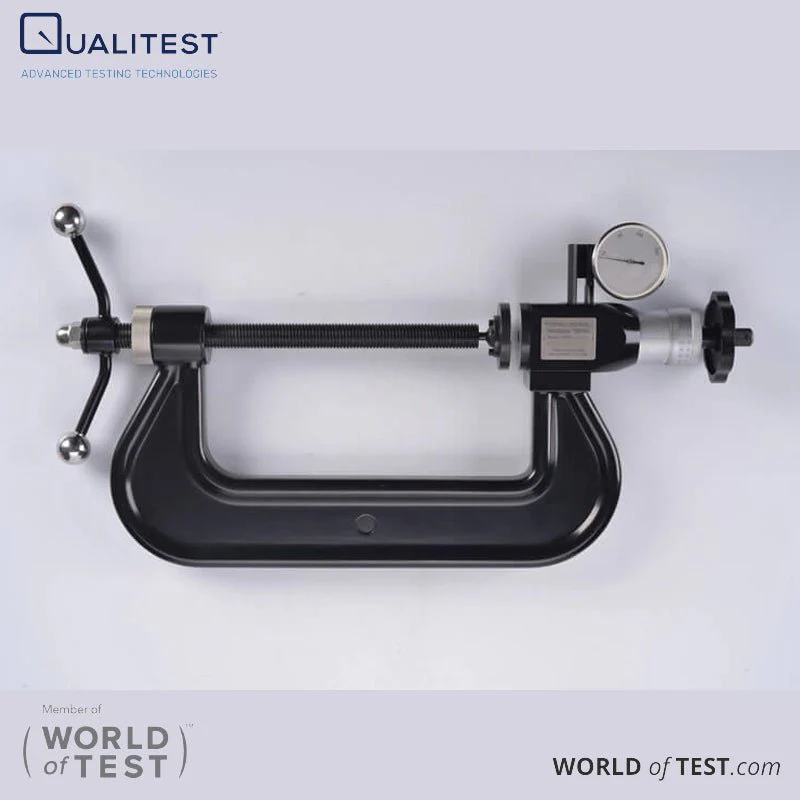

Portable Rockwell Hardness Tester – C-Clamp Type QHR-CC Series is an enhanced version of a portable Rockwell hardness tester, featuring a C-shaped frame, screw arbor, and test head. It is designed to test both flat and curved parts, provided they can be securely clamped and the test surface is aligned with the test head. This model is convenient for measuring larger workpieces while maintaining the portability of a smaller hardness tester.

Portable Rockwell Hardness Tester – C-Clamp Type QHR-CC-Series Features

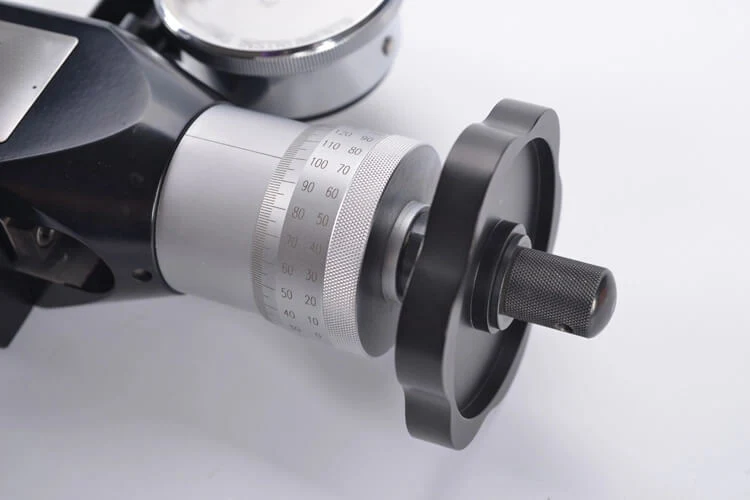

Double Drum Reading. The C-type Rockwell hardness tester features a double-drum reading mechanism that enhances accuracy by minimizing reading errors.

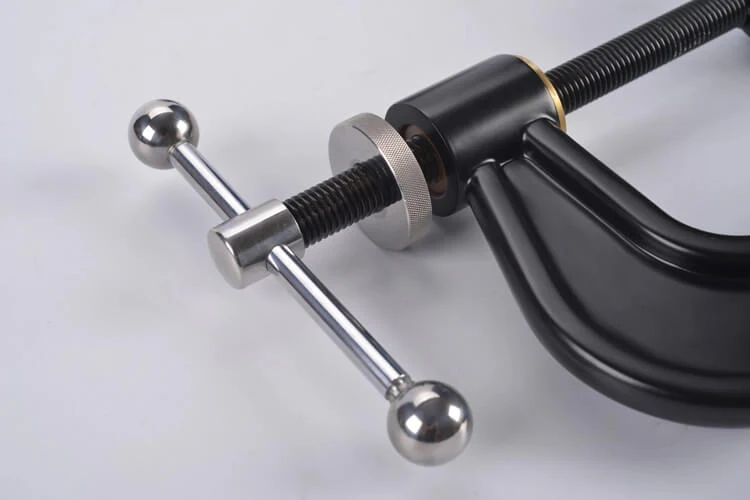

C-frame Structure. This model uses a clamping method to secure the workpiece before measurement, ensuring that the surface being tested is perpendicular to the indenter for stable and reliable results.

International Standards. This tester delivers precise measurements on par with desktop models, adhering to the standards set by ISO 6508, ASTM E18, and ASTM E110.

Portable Rockwell Hardness Tester – C-Clamp Type QHR-CC-Series Technical Specifications

QHR-CC-4-3, QHR-CC-8-4, QHR-CC-8-10, QHR-CC-20-12
Rockwell Initial Test Force	10 kgf
Rockwell Total Test Force	60 kgf, 100 kgf, 150 kgf
Rockwell Indenter	120° Diamond Indenter, 1/16" Carbide Ball Indenter
Indicator Error	Comply with ISO 6508 and ASTM E18, ASTM E110 standards
Repeatability Error	Comply with ISO 6508 and ASTM E18, ASTM E110 standards
Test Resolution	Rockwell: 0.5 HR
Test Range	Rockwell: 20–70 HRC, 20–100 HRB, 20–88 HRA... etc. 15 scales

Standard Assembly	Optional Accessories
Tester	120° Diamond Indenter
120° Diamond Indenter	1/16", 1/8" Carbide Ball Indenter
1/16" Carbide Ball Indenter	1/4" Steel Ball Indenter
3 pcs Rockwell Hardness Block	Rockwell Hardness Block (HRC-high, HRC-low, HRB)
Flat Anvil	Special Anvils (as per requirements)
V Anvil
Carrying Case

Model Selection

Model	Specimen / Opening Size W x D (mm)	Net Weight (kg)	Gross Weight (kg)	Package Dimensions (mm x mm x mm)	Remarks
QHR-CC-4-3	100 x 75	2.2	5.7	500x430x250	The first number in the model specification means the biggest opening width (inch), the second number means the biggest opening depth (inch).
QHR-CC-8-4	200 x 100	4.0	10.7	710x470x200
QHR-CC-8-10	200 x 250	5.5	14.2	720x650x230
QHR-CC-20-12	500 x 300	7.8	21.0	1150x760x260
