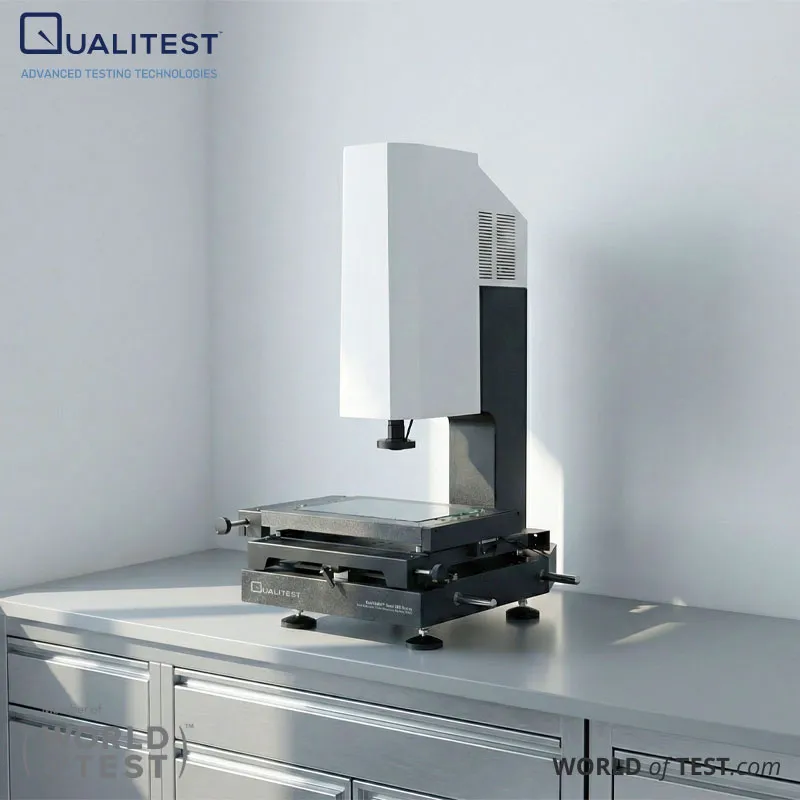

Semi-Automatic Vision Measuring Machine (VMM) – QualiVMM™ Semi 300 Series
Precision inspection is faster and more consistent with the QualiVMM™ Semi 300 Series. This semi-automatic Vision Measuring Machine (VMM) integrates a servo-driven Z-axis with automatic focusing to minimize operator-dependent variations and maintain reliable measurement results across shifts. Its robust granite structure, controlled LED illumination, and intuitive iMeasuring software streamline everyday QC routines.
Built for the 300 × 200 mm travel class, the QualiVMM™ Semi 300 Series supports 2D and 2.5D vision measurement with rapid, repeatable inspections. Optional upgrades allow contact probing and 3D measurement capabilities for expanded applications.
A high-resolution color digital camera paired with a zoom lens ensures sharp, accurate edge detection, while programmable zone-controlled LED lighting adjusts contrast for various materials and surface finishes.
Applications of QualiVMM™ Semi 300 Series
Production Quality Control for Machined Parts
Measures profiles, hole locations, radii, chamfers, and feature-to-feature distances with consistent results. Automatic focusing ensures steady measurements even when multiple inspectors operate the same station.
Inspection of Stamping and Laser-Cut Components
Enables fast verification of outlines and patterns on flat parts. Multi-zone surface lighting and contour illumination improve edge visibility, especially on reflective materials.
Plastic and Molded Component Checks
Accurately inspects openings, slots, ribs, and fine geometries without applying contact force that could deform soft materials. Automatic focusing reduces time spent adjusting for height variations.
Electronics and Precision Hardware
Ideal for connectors, small fixtures, and precision assemblies. High-resolution imaging and repeatable focus support reliable measurement routines, while optical zoom allows both overview checks and detailed feature inspection.
Optional Touch-Probe Upgrades
For applications beyond vision measurement, the system can be enhanced with contact probes and 3D measurement software for advanced 3D inspection tasks.
Standards and Compliance
ISO 10360-7 – Provides acceptance and reverification testing methods for Cartesian CMMs with imaging probing systems, supporting reliable performance evaluation of vision-based measurement systems.
ISO 14253-1 – Defines decision rules for determining conformity or nonconformity, ensuring accurate pass/fail evaluations when measurement uncertainty is critical.
ISO 14978 – Establishes general concepts and requirements for GPS-based measuring equipment, offering a framework for calibration and metrology practices.
ASME B89.4.1 – A widely recognized U.S. standard outlining methods for performance evaluation of coordinate measuring machines, relevant to vision measurement system assessments.
Key Features of QualiVMM™ Semi 300 Series
Semi-Automatic Z-Axis with Autofocus
High-precision linear guides and a servo-driven Z-axis enable automatic focusing, reducing operator-dependent variations and ensuring stable, repeatable measurement results.
Granite Base and Column for Stability
A rigid granite structure provides long-term measurement stability, supporting reliable performance during daily QC routines.
Controlled Worktable Return for Repeatable Positioning
Polished rods and a quick-lock mechanism maintain consistent table positioning for accurate, repeatable inspections.
Precision Scale and Worktable Design
Engineered to achieve measurement targets up to 200 µm and vertical accuracy of E1z = 5 + L/200 µm, ensuring reliable dimensional assessment.
High-Resolution Imaging for Edge Detection
Zoom optics paired with a high-resolution color digital camera deliver clear, low-distortion images for precise edge and feature measurement.
Programmable, Zone-Controlled LED Illumination
A 4-ring, 8-zone surface lighting system with adaptive zones and contour LED parallel illumination enhances visibility on various materials. Coaxial lighting is available as an option for specialized applications.
Upgradeable with Probing and 3D Measurement
Optional contact probe and 3D measurement software expand the system’s capabilities for advanced inspection tasks beyond vision-only measurement.
Semi Automatic Vision Measuring Machine (VMM) – QualiVMM™ Semi 300 Series Technical Specification
| Specification | Value |
|---|---|
| Category | Semi-Automatic Video Measuring System (VMS Series) |
| Model | QualiVMM™ Semi 300 Series |
| Marble workbench | 505 × 350 mm |
| Glass stage | 356 × 248 mm |
| X/Y travel | 300 × 200 mm |
| Z travel | High-precision linear guide, effective travel 200 mm |
| Axis resolution (X/Y/Z) | 0.5 μm |
| Base and column | High-precision granite |
| Accuracy (E1x,y)* | 3 + L/200 (μm) |
| Accuracy (E1z)* | 5 + L/200 (μm) |
| Repeatability | 2 μm |
| Illumination (software-controlled) | 4-ring / 8-zone LED cold surface illumination; contour LED parallel illumination; optional coaxial light |
| Digital camera | 1/3" high-resolution color camera, 1.3 Mpixel |
| Zoom lens | 6.5× high-resolution zoom lens |
| Magnification | Optical: 0.7×–4.5×; Video: 26×–172× (21.5" monitor) |
| Measuring software | iMeasuring |
| Supported OS | Windows 10/11 (32/64-bit) |
| Languages | English, Simplified Chinese, Traditional Chinese (other languages optional) |
| Operating environment | 20°C ±2°C; temp change <1°C/hr; 30–80% RH; vibration <0.02 g; ≤15 Hz |
| Voltage | AC 220V / 50Hz or 110V / 60Hz |
| Dimensions (W × D × H) | 744 × 643 × 1075 mm |
| Weight (gross / net) | 275 / 208 kg |
* Note: L = measured length (mm). Accuracy is expressed using the manufacturer’s formula in µm.
Configuration Overview
Product Categories and Sensor Configurations
| Product Category | Sensor Configuration | Description | Model |
|---|---|---|---|
| Manual Video Measuring System | 2D | 2D Video Measuring System | QualiVMM™ Semi 300 Series |
| Manual Video Measuring System | 2.5D | 2.5D Video Measuring System | QualiVMM™ Semi 300A Series |
| Manual Video Measuring System | 3D | 3D Contact & Video Measuring System | QualiVMM™ Semi 300B Series |
| Semi-Auto Video Measuring System | 2.5D | 2.5D Semi-Automatic Video Measuring System | QualiVMM™ Semi 300C Series |
| Semi-Auto Video Measuring System | 3D | 3D Semi-Automatic Contact & Video Measuring System | QualiVMM™ Semi 300D Series |
Model Versions – Features by Type
| Model | Type | Primary Sensor Setup | Z-Axis Autofocus | Contact Probe | Software Version | Operation Mode |
|---|---|---|---|---|---|---|
| QualiVMM™ Semi 300 Series | — | Optical zoom-lens sensor | No | No | iMeasuring 2.0 | Manual |
| QualiVMM™ Semi 300A Series | A | Optical zoom-lens sensor | No | No | iMeasuring 2.1 | Manual |
| QualiVMM™ Semi 300B Series | B | Zoom-lens sensor + contact probe sensor | No | Yes | iMeasuring 3.1 | Manual |
| QualiVMM™ Semi 300C Series | C | Zoom-lens sensor + Z-axis autofocus | Yes | No | iMeasuring 2.2 | Semi-auto |
| QualiVMM™ Semi 300D Series | D | Zoom-lens sensor + contact probe + autofocus | Yes | Yes | iMeasuring 3.2 | Semi-auto |
