Universal Testing Machines QE-Series Single-Column

QUALITEST QE-series Single-Column Electromechanical Universal Testing Machines with capacity up to 10kN and available in 4 different heights, are high performance, and yet cost-effective UTMs that offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel strength etc.

QE-Series Single-Column Universal Testing Machines - 0.1kN up to 10kN

QUALITEST QE-series Single-Column Electromechanical Universal Testing Machines with capacity up to 10kN and available in 4 different heights, are high performance, and yet cost-effective UTMs that offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel strength  etc. QE-Series UTMs come with German DOLI Controller as standard and can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.

QE-Series Single-Column Universal Testing Machines - 0.1kN up to 10kN Features

• Multi-functions: It can perform tension, compression, bend, flexure, and shear testing which in accord with the relative requirements of ISO, ASTM, DIN, GB, NF, EN and many other national testing methods. Interchangeable fixture design to meet requirements of different specimen materials and test type.


• Extensive accessories: Extensive range of accessories to meet test requirements in almost any application or industry: plastics, metals, biomedical, composites, elastomers, components, automotive, aerospace, textiles, and more.


• Large test space: Double acting crossbeam quickly accommodates specimens of varying lengths. In the case of additional length of columns, the maximum testing space is adjustable to meet extra length specimens. Use high accuracy load cell with strong anti-side force and high measurement accuracy as well as long-term stability.


• High stiffness frame: Preloaded ball screws, precision guidance columns, and a symmetrical drive system improve frame stiffness and alignment


• Over-Travel Limits: Dual over-travel limits, located on the front console, help prevent crosshead overshooting and sensor

QE-Series Single-Column Universal Testing Machines - 0.1kN up to 10kN Technical Specifications

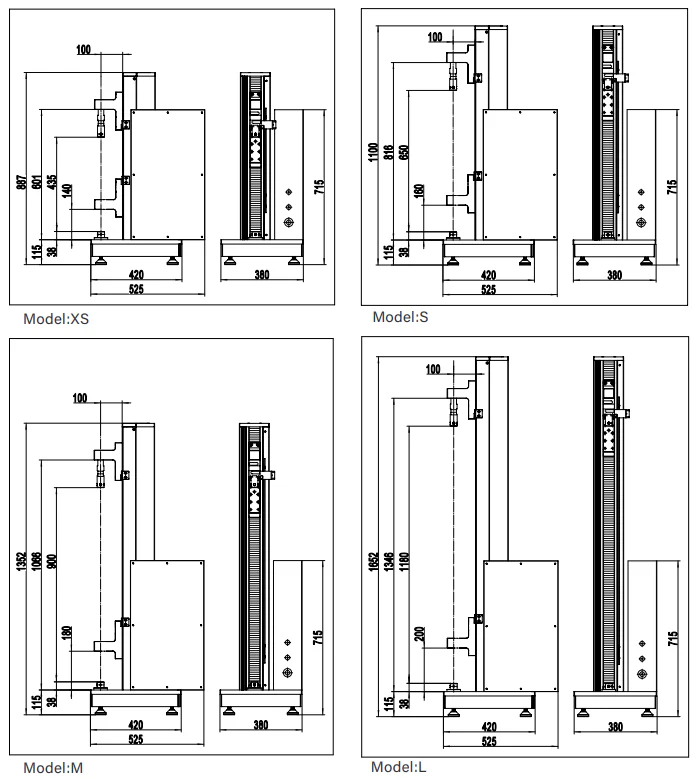

Model	XS	S	M	L
Load Capacity	0.1kN to 10kN upon request
Load Measuring Accuracy	±0.5% @ (0.04% to 100% load capacity)
Overload Capacity	150%
Test Stroke Without Accessories	435mm	650mm	900mm	1180mm
Depth	100mm
Moving Speed	0.0005mm/min to 2000mm/min
Stroke Resolution	0.0001mm
Interface to PC	Ethernet / USB
Power Supply	Single Phase 220Vac, 50Hz/60Hz or Upon request (110V is also available)
CE Conformity	Yes, according to Machinery Directive 2006/42/EC
Weight	65kg	68kg	70kg	75kg

Note: Specifications subject to changes without notice

Price includes The QE-10 Main Unit, Software, Doli Controller, One Load Cell, and One Standard set of grips or compression platens of your choice. For optional accessories such as extensometers, additional grips or load cells please contact us for a customized quotation.
