Ceramic Tile Bond Strength Pull-Off Tester QualiBond-6000 is designed to measure the bond strength of a wide range of materials, including decorative bricks, tiles, mosaics, various plates, paints, coatings, and exterior wall insulation materials (such as EPS and SPS panels).

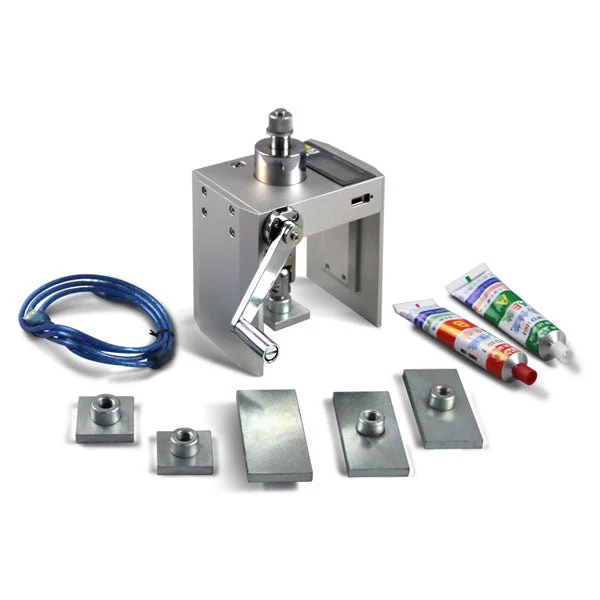

Ceramic Tile Bond Strength Pull-Off Tester QualiBond-6000
Ceramic Tile Bond Strength Pull-Off Tester QualiBond-6000 is designed to measure the bond strength of a wide range of materials, including decorative bricks, tiles, mosaics, various plates, paints, coatings, and exterior wall insulation materials (such as EPS and SPS panels). It is also suitable for testing the bond strength of adhesives and other exterior wall building materials.
Ceramic Tile Bond Strength Pull-Off Tester QualiBond-6000 Features
- Integrated micro hydraulic system for precise operation.
- Embedded digital pressure gauge for accurate readings.
- Peak hold functionality with options to record, review, and delete data.
- 10-segment linear correction system enhances measurement accuracy.
- Low-power consumption design with automatic shutdown after inactivity; continuous operation exceeds 200 hours.
- Dual measurement modes: kN and MPa.
Ceramic Tile Bond Strength Pull-Off Tester QualiBond-6000 Technical Specifications
| Specification | Details |
|---|---|
| Measuring Range | 0～10KN |
| Display | MPa and kN |
| Accuracy | 0.001KN |
| Hollow Cylinder Stroke | 10mm |
| Instrument Structure | One-piece |
| Main Material | Alloy material |
| Body Weight | 2.0kg |
| Configurator Display Mode | Digital |
| Data Store | 200 items |
| Data Check and Delete Function | Yes |
| Peak Holding Function | Yes |
| LCD Lighting Function | Yes |
| Battery | Lithium battery |
| Polyline Correction | 10 section |
| USB Charging | Yes |
Packing List
| Item | Quantity |
|---|---|
| Main frame | 1 pc |
| Digital display pressure gauge (built-in) | 1 pc |
| Charger | 1 pc |
| Aluminum alloy packing box | 1 pc |
| Specimen 95*45mm / 40*40mm | Each 3 pcs |
| AB glue | 1 set (if shipped by air or express, it will be removed) |
| Operating manual | 1 pc |
| Quality certificate | 1 pc |
| Packing list | 1 pc |
