$978.25The Story
Digital Precision for Coating Bond Strength

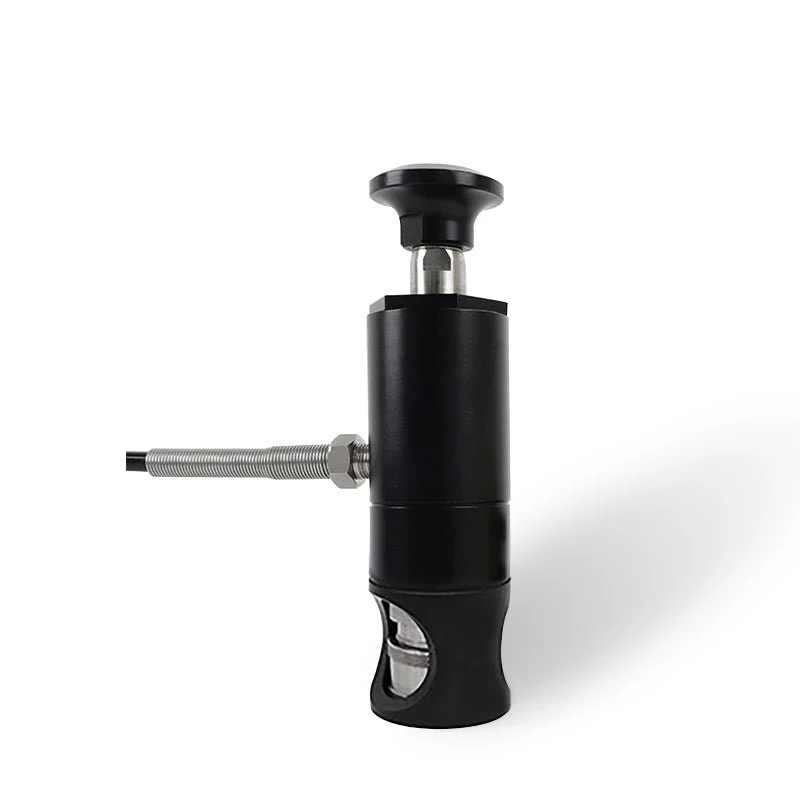

The QualiPAT Pull-off Adhesion Tester is a portable, hydraulic inspection tool designed to measure the bond strength of coatings with laboratory-grade accuracy. By applying precise hydraulic pressure to a defined surface area, it quantifies exactly how well a coating adheres to its substrate—whether it's concrete, steel, or wood.
Ideal for field use in compliance with ASTM D4541 and ISO 4624, the QualiPAT features a digital display, internal data logging, and a self-aligning design that ensures uniform pulling force, eliminating the "peeling" errors common with manual mechanical testers.
Industrial Applications
Use the **50mm dolly** to test the adhesion of floor sealers, overlays, and repairs on concrete surfaces.
Verify the bond strength of anti-corrosion epoxy, PU, and multi-coat systems on steel hulls and tanks using **20mm or 14mm dollies**.
Generate traceable pass/fail reports with automated data logging and USB transfer—no specialized software required.
Key Features & Advantages
-
✔
Hydraulic Precision & Automatic Centering: The hydraulic pump delivers smooth, continuous pressure. The self-aligning head ensures the pull force is always perpendicular to the surface, even on uneven substrates, preventing uneven stress distribution.
-
✔
Advanced Data Management: Automatically records Max Pull-off Force, Rate, Time, and Dolly Size. Connects via Micro-USB to transfer data directly to Excel (acts like a flash drive)—no drivers needed.
-
✔
Automatic Calculation: Forget conversion tables. Simply select your dolly size (10, 14, 20, or 50mm) and the unit automatically calculates the pressure (MPa or psi) based on the surface area.
-
✔
Field-Ready Design: Powered by a built-in rechargeable lithium battery for cordless operation. The industrial-grade pressure sensors are calibrated to NIST standards (±1% accuracy).
-
✔
Cost-Effective Consumables: Uses high-quality, reusable aluminum dollies that meet international standards.
Technical Specifications
| Dolly Size (mm) | Measuring Range (MPa) | Typical Application |
|---|---|---|
| 20 mm (Standard) | 0 - 31.84 MPa | General Coatings on Steel/Metal |
| 50 mm (Optional) | 0 - 5.09 MPa | Concrete, Wood, Plastic |
| 14 mm (Optional) | 0 - 64.99 MPa | High-Bond Strength Coatings |
| 10 mm (Optional) | 0 - 27.38 MPa | Very Small Surfaces / Extremely High Bond |
| Accuracy | ±1% Full Scale |
| Resolution | 0.01 MPa (0.1 psi) |
| Display Units | MPa, psi |
| Power Supply | Built-in Rechargeable Lithium Battery |
| Dimensions | 360 × 75 × 115 mm | 2.8 kg |
