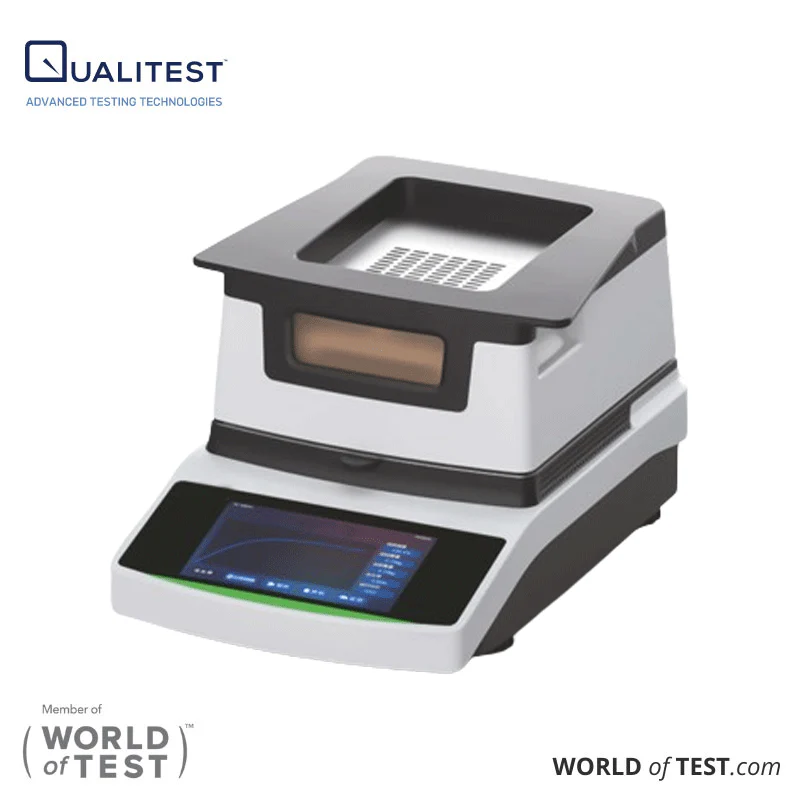

Halogen Moisture Analyzer QMA-E Series

QMA-E Series Halogen Moisture Analyzer brings together advanced moisture detection technology, featuring a high-efficiency drying heater powered by top-notch ring halogen lamps for swift and uniform sample heating.

Compared to traditional infrared heating methods, this oven technique works 20 times faster, delivering a 40% speed boost. The instrument features an intelligent and user-friendly design, enabling effortless one-button measurements even for non-experts.

Download PDF Brochure

Halogen Moisture Analyzer QMA-E Series Features

• Easy Shuttle
• Multiple displays
• Multiple modes
• Permission management
• Real time curve
• Data management
• Custom Method
• Temperature calibration
• Weight calibration
• Horizontal calibration
• System upgrade
• Quick detection

Application：

General industry：	Grain, wood, paper, textile, coal, ore, sand, soil, fertilizer, feed, chemical, tobacco
Inorganic salt powder：	Grain, wood, paper, textile, coal, ore, sand, soil, fertilizer, feed, chemical, tobacco
Food and Drug：	Calcium carbonate, refractory materials, talc powder, alumina, gypsum, desiccant, ceramic slurry, ceramic
Battery industry：	Powder,Traditional Chinese medicine, Western medicine, health foods, essential oils, dehydrated foods, food fillings, food powders, fruits and vegetables, dried fruits, flour products, sugars, meat, edible oils, etc Lithium battery powder, lithium battery slurry, battery grade sheet, graphene
Plastic and rubber industry：	ABS, PP, PVB, PC, COC, BMC, DMC, SMC, BOPP, PBT plastic film, ESP Polylon, PET plastic, PA polyamide, LCP, PVC, recycled plastic, bottle sheet, PE polyethylene, rubber, PS styrene, EPE pearl cotton
Solid content：	Paint, milk soybean milk, glue, adhesive, rubber, slurry, mud, sludge, silica gel, chocolate, soy sauce, toothpaste, etc



Operating procedures:

01. Tare the sample pan

02. Add samples and  evenly distribute them

03. One click start to see the results



Halogen Moisture Analyzer QMA-E Series Technical Specifications

Model	QMA-E50	QMA-E20	QMA-E10	QMA-E01
Weighing accuracy (d）	0.005g	0.002g	0.001g	0.0001g
The weighing sensor	HBM	HBM	Electromagnetic force	Electromagnetic force
Moisture readability	0.01%	0.01%	0.01%	0.001%
Moisture range MC%	0.00%-100.00%	0.00%-100.00%	0.00%-100.00%	0.000%-100.000%
Temperature resolution	0.1℃
Weighing range	124g (optional 220g/300g)
Calibration method	External weight calibration, fully automatic temperature calibrator
Repetitiveness	Allow ≤ 3d
Heating method	Efficient ring halogen lamp heating
Temperature sensor	PT-1000 high-precision platinum rhodium temperature sensor
Drying Procedure	Four modes: standard heating, stage heating, fast heating, and soft heating
Heating range	40-200 ℃ (customizable 250 degree high temperature program)
Heating interval	0.1 ℃ PID temperature control
Drying time setting	1-99 minutes (1 second interval)
Shutdown method	Scheduled shutdown, manual shutdown, automatic shutdown
Measure program quantity	Customizable measurement program according to needs
Usage environment	1-38 ℃ (ideal temperature of 18-25 ℃)
