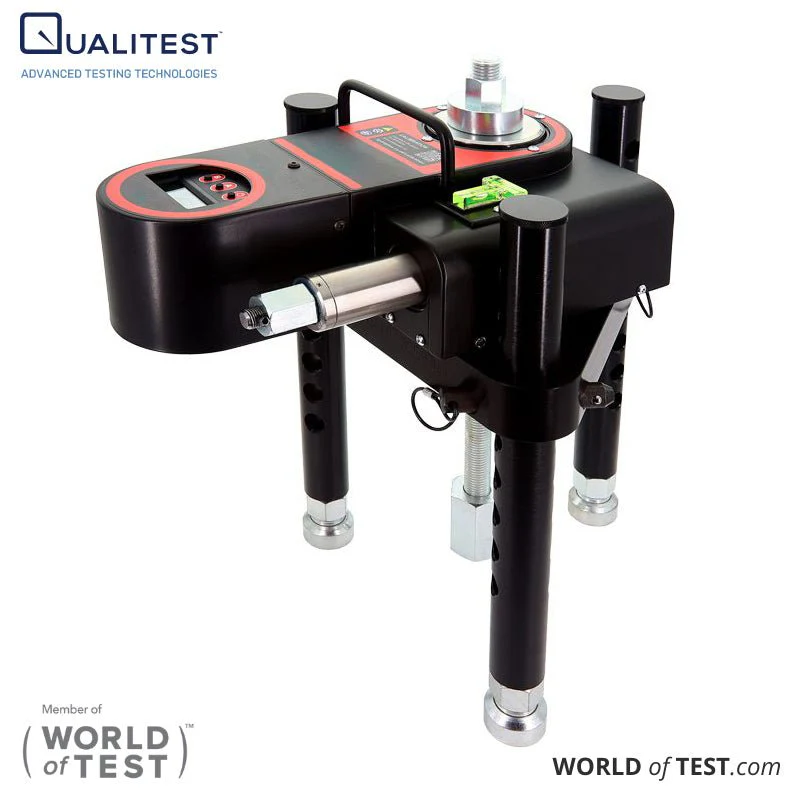

Heavy Duty Tester - QualiAnchor M2008

The portable, self-contained Heavy Duty Tester - QualiAnchor M2008 is designed to meet the demands of proof load testing for larger fixings, with a testing range up to 145kN (32,597 lbf).

Heavy Duty Tester - QualiAnchor M2008

The portable, self-contained Heavy Duty Tester - QualiAnchor M2008 is designed to meet the demands of proof load testing for larger fixings, with a testing range up to 145kN (32,597 lbf). It is fully compliant with BS 8539 and AEFAC-TN05 standards. This versatile tester is ideal for applications such as high-load expanding and resin anchors, holding down bolts for stanchion base plates, base plate fixings for column lighting, anchorage for crash barriers, safety fences, stadium crush barriers, and bridge parapet anchors.

Optional Extras for Expanded Applications

With additional accessories, the Heavy Duty Tester - QualiAnchor M2008 can also handle rebar pull-out tests (with rebar adaptors), pad eye load testing, large ringbolt and eyebolt testing (with HD ringbolt clevis).

Lightweight and Convenient Design

Featuring an aluminium, height-adjustable load-spreading bridge, the QualiAnchor M2008 has a combined weight of just 14kg, making it significantly lighter and more convenient than traditional hydraulic pump and cylinder systems, without compromising on performance.

Applications

The Heavy Duty Tester - QualiAnchor M2008 is designed for a wide range of critical applications, including:

• Proof and Failure Load Testing of most types of fixings
• High Load Expanding and Resin Anchors for secure attachment
• Cast-in Sockets and Channels for reliable installation
• Holding Down Bolts for Stanchion Base Plates ensuring structural integrity
• Base Plate Fixings for Column Lighting supporting infrastructure in lighting installations
• Anchorage for Crash Barriers and Safety Fences to enhance road safety
• Anchorage for Stadium Crush Barriers to ensure safety during large events
• Bridge Parapet Anchors for reinforced support in bridge construction

This versatile tester is a key tool for ensuring the strength and reliability of safety-critical fixings and anchors across a variety of industries.

Heavy Duty Tester - QualiAnchor M2008 Features

The Heavy Duty Tester - QualiAnchor M2008 is equipped with a dual-scale, rechargeable digital gauge that supports the latest, free-to-use QualiAnchor App. This app provides real-time data monitoring and tracking. The detachable gauge simplifies calibration and reduces carrier return costs.

Key Features:

• Testing Capacity: 0–145kN (32,597 lbf)
• Load Spreading Bridge: Lightweight aluminium offset triangular design with nine height positions for optimal adjustment, along with swivel feet for fine height control.
• Load Application: Achieved through a 24mm ratchet handle driving a hydraulic multiplier for precise load application.
• Leveling: A built-in spirit level helps ensure the overall balance of the test rig.
• Safety Feature: A 10mm eyehook is included for attaching a lanyard when necessary.
• Adaptability: The foam filler accommodates four rebar adaptors for additional testing flexibility.
• Calibration Certificate: A 12-month calibration certificate is included for the digital gauge, ensuring consistent accuracy.

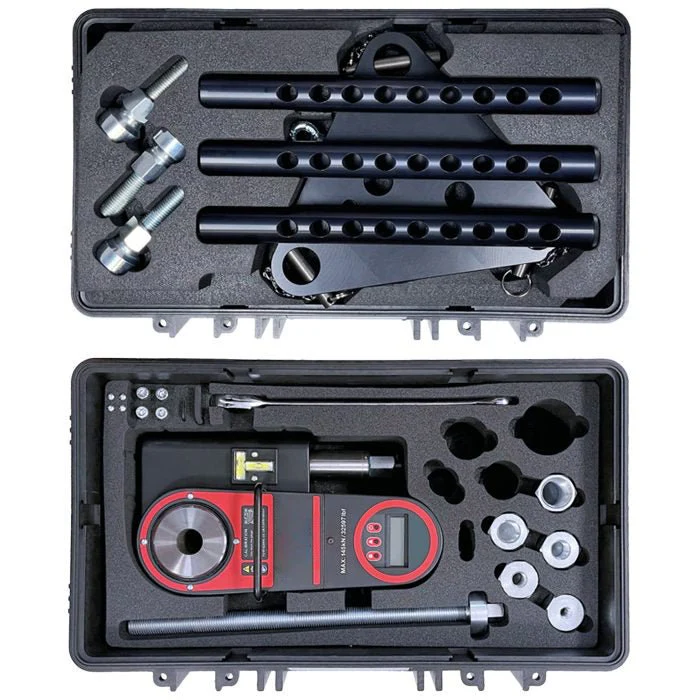

• Mobility: Supplied in a durable, military-grade carry case with wheels, a telescopic handle, and comprehensive operating instructions for easy transport.

Kit Includes:

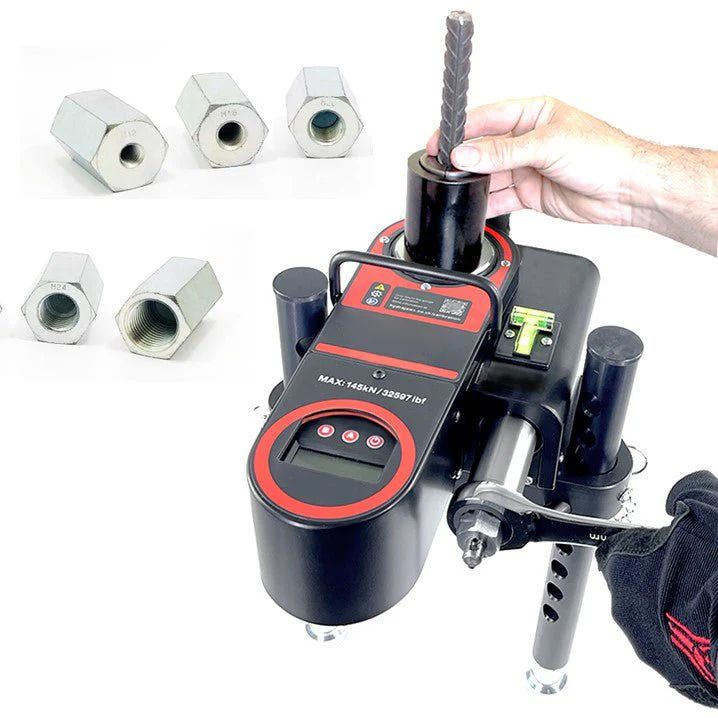

• 5 x Threaded adaptors: M20 > M12, M20 > M16, M20 > M20, M20 > M24, and M20 > M30.
• Imperial: UNC equivalent threaded stud adaptors are available.

The Heavy Duty Tester - QualiAnchor M2008 offers unmatched portability, ease of use, and versatility, making it the go-to solution for testing a wide range of anchors and fixings in demanding applications

Heavy Duty Tester - QualiAnchor M2008 Technical Specifications

Pull-Out Load Range	0–145kN (32,597 lbf)
Weight of Tester	14kg (30.86 lbs)
Case Dimensions	571 x 382 x 160mm (22.48 x 15.04 x 6.30")
Weight of Case	27.37kg
Warranty	12 months
Part Numbers	Metric: Part #280-001 Imperial: Part #280-002

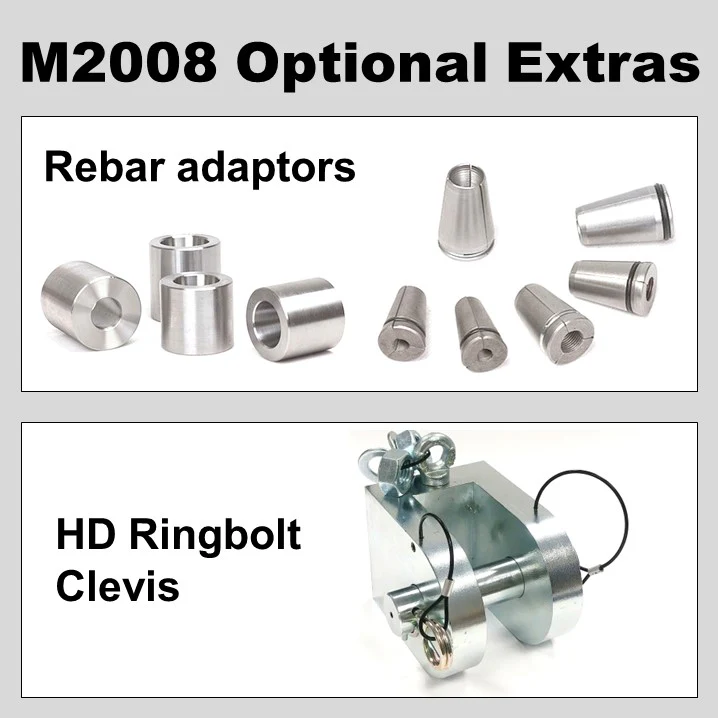

Optional Extras	Heavy-duty Ringbolt Clevis for pad eye load testing, large ringbolt, and eyebolt testing (Part #161-095) Rebar Adaptors for rebar testing: 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, and 22mm (additional adaptors available on the website) Wider Span Load-spreading Bridge allowing a maximum load of 125kN only (Part #141-005)



This tester is designed for ease of use and transport, supplied in a wheeled case with a telescopic handle for added convenience. It includes a comprehensive full-color user manual and the backing of our technical team. The detachable gauge is supplied with a 12-month calibration certificate, ensuring long-term performance and reliability.
