Safety Harness Eye Bolt Tester - QualiHarness M2000 is designed for personal fall protection anchor device load testing, ensuring that safety harness eye bolts are properly installed and regularly tested to meet BS EN 795 and BS 7883:2019 standards.
Safety Harness Eye Bolt Tester - QualiHarness M2000
Safety Harness Eye Bolt Tester - QualiHarness M2000 is designed for personal fall protection anchor device load testing, ensuring that safety harness eye bolts are properly installed and regularly tested to meet BS EN 795 and BS 7883:2019 standards. Built to the highest specifications, this kit includes an M12 ringbolt adaptor clevis, which allows for the pull testing of standard eye bolts and ring bolt fixings up to a maximum tensile load of 25kN (5620lbf).
The three-legged load spreading bridge effectively isolates reaction loads from the fixing, ensuring more consistent and accurate test results. Widely trusted by industry leaders in personal fall protection, the Safety Harness Eye Bolt Tester - QualiHarness M2000 is simple to use and designed for easy transport, making it an indispensable tool for ensuring safety in fall protection installations.
Safety Harness Eye Bolt Tester - QualiHarness M2000 Features
The Safety Harness Eye Bolt Tester - QualiHarness M2000 is equipped with a 0-25kN Dual Scale rechargeable digital gauge, compatible with the latest FREE App. The gauge is detachable for calibration, helping reduce carrier return costs. The kit also features a 2020 load spreading bridge with height-adjustable legs and pin arrangements in four positions, along with swivel feet that provide 15mm of fine adjustment.
For ease of use, the tester comes preassembled and includes a turning handle with a 22mm (7/8") integrated nut—ideal for use in confined spaces. The tester also offers up to 50mm of stroke for flexibility in testing.

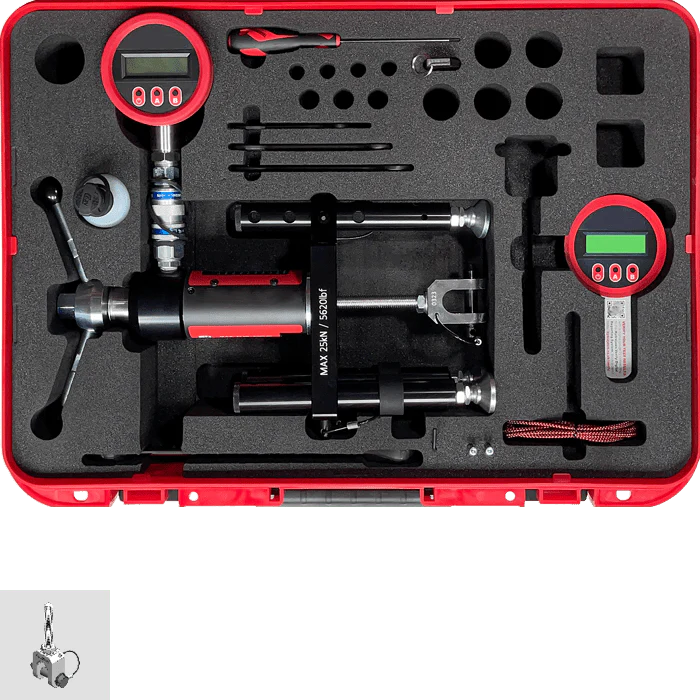

The kit is supplied in a robust protective carry case with full operating instructions, along with a gauge calibration certificate (valid for 12 months). It includes the following adaptors for various applications:
- M12 Ringbolt adaptor clevis
- M12 locking adaptor
Safety Harness Eye Bolt Tester - QualiHarness M2000 Technical Specifications
The Safety Harness Eye Bolt Tester - QualiHarness M2000 offers the following specifications:
| Pull-Out Load Range | 0–25kN (5,620 lbf) |
| Stroke | Up to 50mm (1.97") |
| Weight (Tester only) | 2.2kg (4.85 lbs) |
| Load Spreading Bridge (LSB) Dimensions (between feet edge) | 116mm (4.57") |
| Case Dimensions | 571 x 382 x 160mm (22.48 x 15.04 x 6.30") |
| Case Weight | 8kg |
| Oil Type | ISO VG 32 Mineral-based oil |
| Oil Replenishment | Via supplied oil bottle with the aid of piston key |
| Warranty | 12 months |
| Part Numbers |
Part #: 200-011 (Analog) Part #: 200-012 (Digital) |
This kit is ideal for testing safety harness eye bolts, ensuring compliance with BS EN 795 and BS 7883:2019 standards.
Click Here to visit the product webpage
