Portable Ultrasonic Hardness Tester - UCI-3000M

Portable Ultrasonic Hardness Tester - UCI-3000M

Portable Ultrasonic Hardness Tester - UCI-3000M is a sought-after hardness tester manufactured by Qualitest North America, known as UCI-3000M Portable Ultrasonic Hardness Tester. This portable device utilizes the ultrasonic contact independence method for conducting hardness tests either on-site or in a laboratory setting.

The UCI-3000M proves to be an ideal portable hardness tester for hardness assessments related to coatings and platings. It excels in measuring the hardness of chrome, copper plating, carburized layers, and nitriding layers with precision and efficiency.

Functioning as a Non-Destructive Testing (NDT) hardness tester, the UCI-3000M boasts an indention so small that it's challenging to observe, making it an excellent solution for testing the hardness of finished products. This includes molds, gears, shafts, rods, screws, rails, and more.

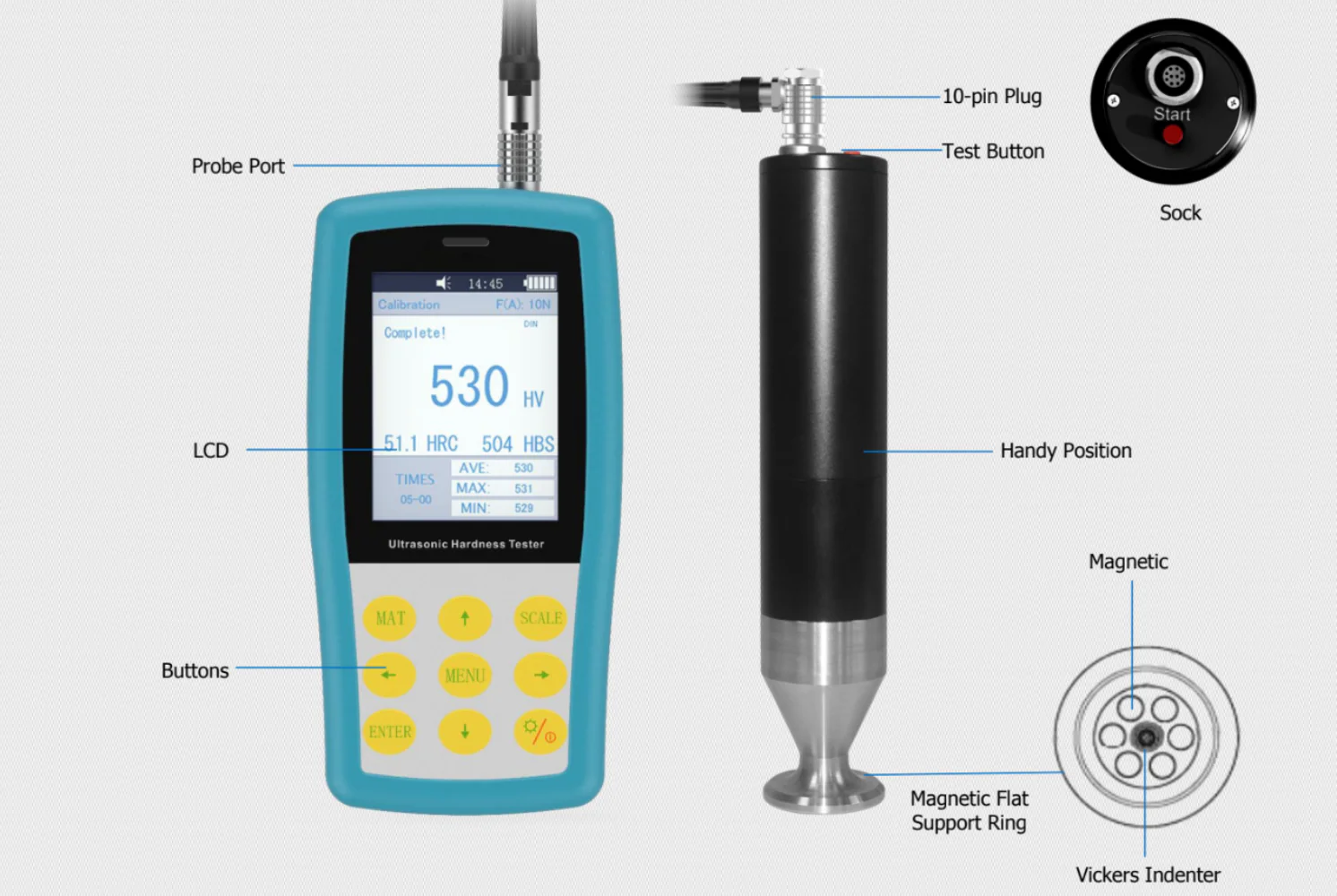

Versatility is a key feature of the UCI-3000M, as it seamlessly accommodates both motorized and manual probes. This flexibility ensures its applicability across various scenarios and surface roughness conditions.

Compliant with international standards, the UCI-3000M adheres to ASTM A1038-2005, and DIN standard DIN50159-1-2008. Rely on the UCI-3000M for accurate and dependable hardness testing across diverse applications.

Download PDF Brochure



Application:

• Measure the hardness of flange edges, gear root stampings, molds, sheets, surface-hardened teeth and gear grooves, and taper parts.

• Conduct hardness measurements on axles, thin-wall pipes, and containers.

• Measure the hardness of wheels and turbine rotors.

• Assess the hardness of bit blades.

• Conduct hardness measurements on welding parts.

• Measure certain aperture depth, deep dents, convex marks with greater radian, and irregular planes.

• Determine the hardness of most ferrous metals, nonferrous metals, and other alloys in industrial production.

Portable Ultrasonic Hardness Tester UCI-3000M Features:

• Perfect Accuracy — Achieve precision with ±3% HV, ±1.5HR, ±3%HB.

• Microscopic Indentation — Indentations are observable only through a high-power microscope.

• Quick Measurement — Obtain results in just 2 seconds, ensuring efficiency.

• Large LCD Display — View measurement results, times count, maximum, minimal, average, and deviation directly on the spacious LCD.

• User-Friendly Operation — Easily operate the device with proficiency after minimal training.

• Promised Warranty — Benefit from a 2-year warranty for the main unit (Probe excluded), ensuring long-term reliability.

• Mass Storage — Store up to 1000 groups of measurement data for comprehensive record-keeping.

• Simple Calibration — Save calibration data for up to 20 groups, facilitating efficient calibration processes.

Portable Ultrasonic Hardness Tester - UCI-3000M Technical Specifications:

Product Name	Motorized Ultrasonic Hardness Tester
Model	UCI-3000M
Optional probe	Motorized Probe：3N、5N、8N、10N;  Manual Probe：10N、20N、49N、98N ;
Measuring Range	HBW:100-650; HV:100-1500; HRC:20-68; HRB:55-100; HRA:37-85; Mpa: 255-2180N/mm
Measuring Accuracy（%）	Scales	﹤250HV	250~500HV	500~800Hv	﹥800HV
	HV0.1	6	7	8	9
	HV0.3	6	7	8	9
	HV0.8	5	5	6	7
	HV1	5	5	6	7
	HV5	5	5	5	5
	HV10	5	5	5	5
Hardness Scales	Vickers(HV);Rockwell C(HRC); Rockwell A(HRA); RockwellB(HRB);Brinell(HB)
LCD	Color Screen
Data Display	LCD Backlight, Adjustable
Language	English, German, Portugese, Turkish, Chinese
Data Output	RS232 Hyper Terminal/Bluetooth Printer
print	Bluetooth
Data Storage	To save 1000 groups of measuring data and 20 groups of calibration data
Word input	Letters and numerals
Working Environment	Temperature: -10°C to 50°C Humidity :30%-80% R.H.
Battery Voltage	Rechargeable lithium battery ; Voltage :4.2V, 4800mAh
Recharger Voltage	AC220V/50Hz, 110V/60Hz
Main unit Dimension and Weight	Main unit Dimension :160 x 80 x 30mm (L x W x H);Manual Probe:Φ22×153mm ; Weight(No Probe): 0.5Kg
Packing Dimension and Weight	Packing Dimension 320 x 430 x 155mm (L x W x H) ; Packing Weight （Standard Delivery）4.3Kg



Standard Delivery:

Product Name	Code #	Product Name	Code #	Product Name	Code #
Instrument Main Body	882-141M	10N Motorized Probe	882-251	Anti Vibration Case	882-901
Standard Rockwell Block	882-641	Probe Cable	882-801	Screw	882-951
USB Recharger	882-851	COM Cable	882-810	Operation Manual	UCI-3000M
Qualification Certificate	UCI-3000M	Packing List	UCI-3000M	Warranty Card	UCI-3000M
