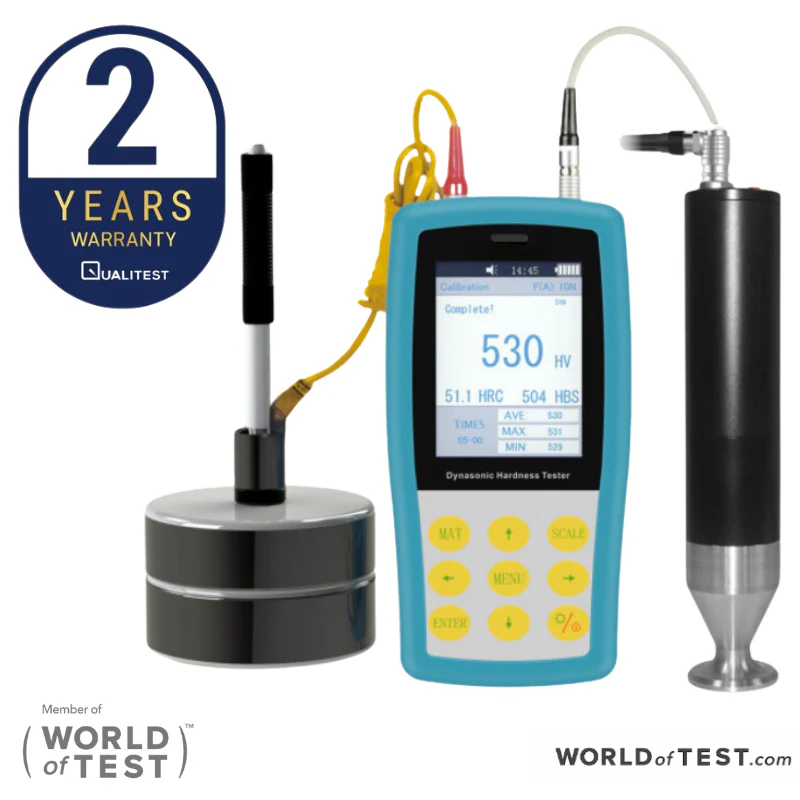

Portable Motorized Leeb / Ultrasonic Hardness Tester UCI-4100DM

Portable Motorized Leeb / Ultrasonic Hardness Tester UCI-4100DM

Elevate your hardness testing capabilities with the Portable Motorized Leeb / Ultrasonic Hardness Tester UCI-4100DM. This cutting-edge dual-mode instrument seamlessly combines dynamic and static testing methods, ensuring swift and precise hardness assessments.

Universally compatible probes make it adaptable to diverse materials, offering specialized measurements for coatings and platings. As a non-destructive testing (NDT) solution, it delivers accurate evaluations on finished products. The UCI-4100DM, designed for portability and durability, boasts a user-friendly interface, making it the preferred choice for on-site applications. Rely on Qualitest North America for top-tier portable hardness testing technology.

The UCI-4100DM Dynasonic Hardness Tester is a versatile portable hardness testing instrument that utilizes two methods. It uses both state-of-the-art ultrasonic contact impedance (UCI) and dynamic rebound (Leeb) techniques to conduct hardness testing within a single device.

This resolves the challenge of the Leeb method being unable to assess the hardness of plating and coating (using UCI), and the UCI method being inadequate for testing coarse crystal materials in the casting industry (using Leeb). The UCI-4100DM is designed to work not only with UCI motorized probes but also with Leeb impact probes, making it universally applicable for testing the hardness of materials with fine or coarse crystal structures in the metal industry.

The UCI-4100DM's UCI probe system is ideal for accurately measuring the hardness of coatings and platings, including chrome, copper plating, carburized layers, and Nitriding layers. Meanwhile, the dynamic Leeb probe system of the UCI-4100DM is well-suited for measuring the hardness of coarse materials like castings and forgings.

As a Non-Destructive Testing (NDT) hardness tester, the UCI-4100DM is particularly valuable for assessing the hardness of finished products, such as molds, gears, shafts, rods, screws, rails, etc. The contact indention of the UCI-4100DM is so small that it cannot be easily observed, making it an excellent solution for accurate hardness testing in various industrial applications.

Download PDF Brochure



Portable Motorized Leeb / Ultrasonic Hardness Tester UCI-4100DM Key Features:

• Dual Testing Methods: Seamlessly integrates both dynamic rebound (Leeb) and static (UCI) hardness testing methods in a single instrument.

• Versatility: Universally applicable for assessing the hardness of materials with fine or coarse crystal structures, addressing the limitations of traditional methods.

• UCI Probe System: Enables precise measurement of coatings and platings, including chrome, copper plating, carburized layers, and Nitriding layers.

• Leeb Probe System: Well-suited for accurate hardness measurement of coarse materials like castings and forgings.

• Non-Destructive Testing (NDT): Ideal for evaluating the hardness of finished products such as molds, gears, shafts, rods, screws, and rails without causing damage.

• Portable Design: Easy to carry and use on-site, providing convenience and flexibility for various industrial applications.

• Small Contact Indention: The instrument's minimal contact indention ensures accurate hardness testing without altering the integrity of the tested material.

• Wide Industrial Applicability: Suitable for use in diverse industries, including manufacturing, casting, forging, and more.

• Motorized and Impact Probes Compatibility: Accommodates both motorized UCI probes and impact Leeb probes, enhancing adaptability for different testing scenarios.

• User-Friendly Interface: Intuitive controls and a user-friendly interface make the hardness tester accessible to both experienced professionals and newcomers.

• High Measurement Accuracy: Delivers reliable and precise hardness measurements, contributing to consistent and accurate quality control.

• Time-Efficient: Streamlines the hardness testing process by combining dynamic and static methods in a single operation, saving time and increasing overall efficiency.

• Durable Construction: Built with robust materials to withstand challenging industrial environments, ensuring longevity and reliability.

• Real-time Data Display: Provides instant and clear results, allowing users to make informed decisions on the spot.

• Comprehensive Hardness Testing Solution: Offers a comprehensive solution for hardness testing, covering a broad range of materials and applications.

Portable Motorized Leeb / Ultrasonic Hardness Tester UCI-4100DM Technical Specifications:

Product Name	Portable Motorized Ultrasonic Hardness Tester
Model	UCI-4100DM

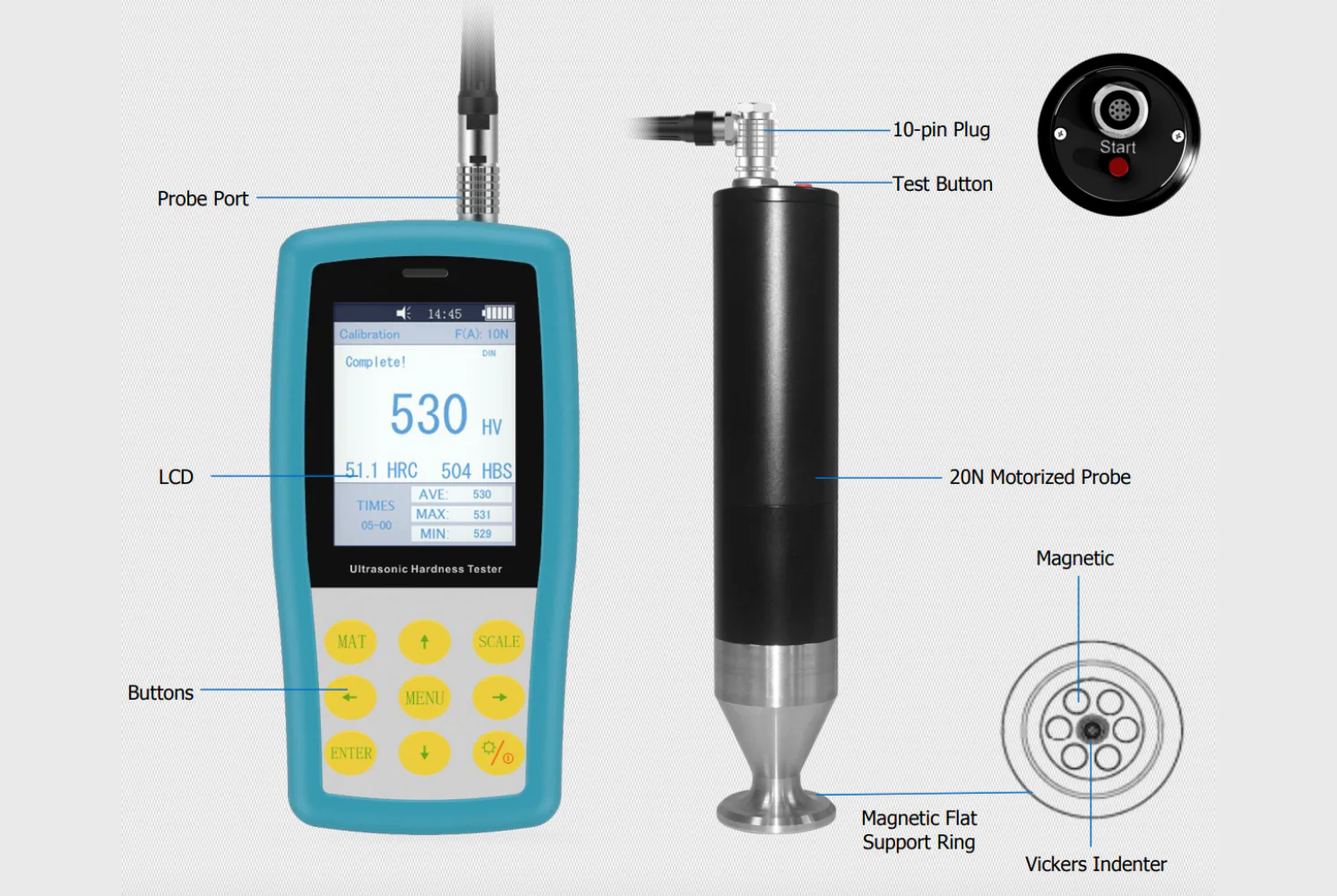

Probe	Motorized Probe 20N: MP-2000
Impact Devices	Optional delivery: D, DC, DL, D+15, C, G)
Hardness Scales	HL, HV, HB, HRC, HRB, HRA, HS, etc.
Measuring Range	50~1500HV; 20～68HRC; 76～600HB; 41～105HRB; 170～960HLD
Measuring Accuracy	HV: ±3%HV; HRC: ±1.5HRC; HB: ±3%HB; HL: ±8HL
Resolution	0.1HR, 1HV, 1HB, 1HLD, 0.1HS
LCD	3.2“Color Screen
Data Display	Loading force, Testing-times, Testing result, Average, Maximum, Minimum, Deviation, and Conversion scale
Print	Bluetooth
Data Storage	To save 1000 groups of measuring data and 20 groups of calibration data
Working Environment	Temperature: -10°C to 50°C ; Humidity: 30%-80% R.H.
Continuous Working Period	6h(turn off the backlight)
Operating Voltage	4.2V
Dimension	(160*80*31)mm
Weight	1.2Kg



Standard Delivery

The UCI-4100DM standard delivery excludes the HLD Leeb Probe and Block; UCI-4100DM can support HP-1K, HP-2K, HP-5K and HP-10K manual probe, and MP-2000 motorized probe, the price of MP-2000 is different with MP-200, MP-300, MP-500,MP-800 and MP-1000
