Advanced Video Measuring Projector – QualiVMP™ Adv 5000 Series

The QualiVMP™ Adv 5000 Series is a high-precision Video Measuring Projector designed for accurate dimensional inspection across a large travel range of 500 × 400 × 200 mm. This advanced optical metrology system captures magnified live images of components, converting edges, features, and geometric elements into precise X-Y-Z measurements.

Built on a rigid granite structure, the platform ensures stable measurement performance, while the electronic feedback zoom lens and high-resolution digital camera deliver sharp, low-distortion imaging for reliable feature measurement. Programmable LED illumination provides optimal surface and contour lighting, enabling consistent edge detection on reflective, matte, or mixed-finish parts.

The system comes standard with 2.5D vision measurement and offers upgrade options for contact probing (3D) and semi-automatic Z-axis autofocus, depending on workflow needs. Integrated iMeasuring software streamlines feature construction, measurement routines, and reporting, making the QualiVMP™ Adv 5000 Series ideal for production and inspection labs that require dependable accuracy across a large measuring envelope.

Advanced Video Measuring Projector – QualiVMP™ Adv 5000 Series Applications

2D Dimensional Inspection of Machined Parts
Quickly measure lengths, diameters, radii, angles, and positions using captured edges and constructed features, ideal for fast shop-floor verification or QC workflows.

Form and Geometric Checks for GD&T Parts
Assess roundness, straightness, parallelism, perpendicularity, concentricity, symmetry, and flatness to support drawing-based acceptance and quality decisions.

Contour and Profile Measurement
Trace complex outlines, grooves, arcs, and curves using contour illumination, providing a non-contact solution where traditional tools may be slow or risk surface damage.

High-Magnification Feature Inspection
Inspect fine features such as small radii, narrow slots, and tight corners with precision using zoom optics combined with stable, programmable lighting.

Optional 3D Contact Measurement
Extend measurement capabilities by adding a touch probe for selected 3D features and height evaluation when the system is configured for contact measurement.

Semi-Automatic Z-Axis Focus and Height Workflows
Improve repeatability for height-related features and focus-sensitive edges with semi-automatic autofocus and height measurement configurations.

Standards Compliance – QualiVMP™ Adv 5000 Series

ISO 10360-7 – Defines acceptance and reverification tests for CMMs with imaging probing systems, ensuring vision-based measurement performance meets industry expectations.
ISO 1:2016 – Establishes a standard reference temperature of 20 °C for dimensional metrology, aligning with typical laboratory conditions (20 ± 2 °C).
ISO 1101 – Covers geometrical tolerancing (GPS) for specifying and interpreting GD&T characteristics verified during inspection.
ASME Y14.5 – Provides the GD&T standard commonly used on North American engineering drawings, enabling accurate evaluation of part geometry.

Advanced Video Measuring Projector – QualiVMP™ Adv 5000 Series Key Features

Granite Base and Column for Maximum Stability
The high-precision granite structure reduces vibration and ensures consistent measurement performance across all workflows.

Low Return Error Stage Movement
A polished, toothless rod with a fast-lock mechanism maintains table return error within 2 µm for precise positioning.

Precision Scale and Worktable
A high-accuracy optical scale combined with a precision worktable delivers system accuracy up to ≤ 2.0 + L/200 µm.

High-Definition Imaging with Minimal Distortion
HD zoom optics and a high-resolution color camera provide sharp, clear images for reliable edge detection and feature measurement.

Programmable Multi-Zone LED Illumination
Software-controlled LED lighting includes 4-ring/8-zone cold surface illumination and contour LED parallel lighting, with intelligent brightness adjustment for each zone.

iMeasuring Software for Streamlined QC
Integrated software supports repeatable measurement routines, inspection reporting, and complete quality documentation.

Upgradeable to Contact 3D Measurement
Add a touch probe and 3D measurement software to extend the system for contact-based 3D inspections.

Optional Semi-Automatic Z-Axis Autofocus
An autofocus module can be configured to improve repeatability and reduce operator influence in height-sensitive measurement workflows.

Advanced Video Measuring Projector – QualiVMP™ Adv 5000 Series Technical Specification

Measurement Category	Type	Sensor Package	Model
2.5D Vision Measuring Machine	A	Optical zoom-lens sensor	QualiVMP™ Adv 5000A Series
3D Contact & Vision Measuring Machine	B	Zoom-lens sensor + contact probe sensor	QualiVMP™ Adv 5000B Series
2.5D Semi-automatic Vision Measuring Machine	C	Zoom-lens sensor + Z-axis autofocus	QualiVMP™ Adv 5000C Series
3D Semi-automatic Contact & Vision Measuring Machine	D	Zoom-lens sensor + contact probe + autofocus	QualiVMP™ Adv 5000D Series

QualiVMP™ Adv 5000 Series core specification

Specification	Value
Measuring software	iMeasuring
Marble workbench	708 × 470 mm
Glass stage	556 × 348 mm
X/Y travel	500 × 400 mm
Z travel	High-precision linear guide, effective travel 200 mm
Axis resolution (X/Y/Z)	0.5 µm
Accuracy (XY)*	≤ 2.5 + L/200 (µm)
Accuracy (Z)*	≤ 4.0 + L/200 (µm)
Repeatability	2 µm
Base and uprights	High-precision granite
Illumination (software-controlled)	4-ring / 8-zone LED cold surface illumination; contour LED parallel illumination; optional coaxial light
Digital camera	1/2.9" high-resolution digital camera, 1.6 Mpixel
Zoom lens	6.5× electronic feedback zoom lens
Magnification**	Optical: 0.7×–4.5×; Video: approx. 26×–172× (21.5" monitor)
Supported OS	Windows 10/11 (32/64-bit)
Languages	English, Simplified Chinese, Traditional Chinese (other languages optional)
Dimensions (W × D × H)	1002 × 852 × 1085 mm
Weight (gross / net)	550 / 380 kg

Notes :

L is the measured length (mm). Z-axis mechanical accuracy and focus accuracy depend strongly on the workpiece surface condition.
Magnification values are approximate and vary with monitor size and resolution.
Optional auxiliary objectives can be selected: 0.5× or 2×, which can extend video magnification to 13×–86× or 52×–344×.
Working environment: 20°C ±2°C, temperature change <1°C/hr, humidity 30–80% RH, vibration <0.02 g, ≤15 Hz.

Configuration

Type A: Optical zoom-lens sensor (2.5D vision)
Type B: Optical + contact probe (3D contact & vision)
Type C: Optical + Z-axis autofocus
Type D: Optical + contact probe + Z-axis autofocus

Model range (same QualiVMP™ Adv Series)

Model	Effective travel (X/Y/Z)	Machine dimensions (L×W×H)	Package dimensions (L×W×H)	Installation dimensions (L×W×H)
QualiVMP™ Adv 2000 Series	200 / 100 / 200 mm	677 × 552 × 998 mm	1030 × 780 × 1260 mm	850 × 1400 × 1720 mm
QualiVMP™ Adv 2500 Series	250 / 150 / 200 mm	790 × 617 × 1000 mm	1030 × 780 × 1260 mm	850 × 1400 × 1720 mm
QualiVMP™ Adv 3000 Series	300 / 200 / 200 mm	838 × 667 × 1000 mm	1030 × 780 × 1260 mm	850 × 1400 × 1720 mm
QualiVMP™ Adv 4000 Series	400 / 300 / 200 mm	1002 × 817 × 1043 mm	1130 × 1000 × 1270 mm	1010 × 1460 × 1810 mm
QualiVMP™ Adv 5000 Series	500 / 400 / 200 mm	1002 × 852 × 1085 mm	1280 × 1070 × 1470 mm	1110 × 1500 × 1850 mm

Configuration List

Standard Delivery (Included)

Measurement software
Electronic feedback zoom lens
Manual controller
4-ring / 8-zone LED illumination
0.5 µm enclosed grating ruler
Dust cover
1/2.9" digital camera
Dongle
Optical calibration plate
Data cable
Contour LED parallel cold illumination
Documentation set: certificate, warranty card, instruction manual, and packing list

Optional Accessories (Add-Ons)

Instrument table
Electronic feedback coaxial optical lens
3D touch probe
Calibration ball
Computer and monitor
1/1.8" color camera
Block gauge
0.5× additional objective
Foot switch
2× additional objective

Advanced Video Measuring Projector

Advanced Video Measuring Projector – QualiVMP™ Adv 5000 Series

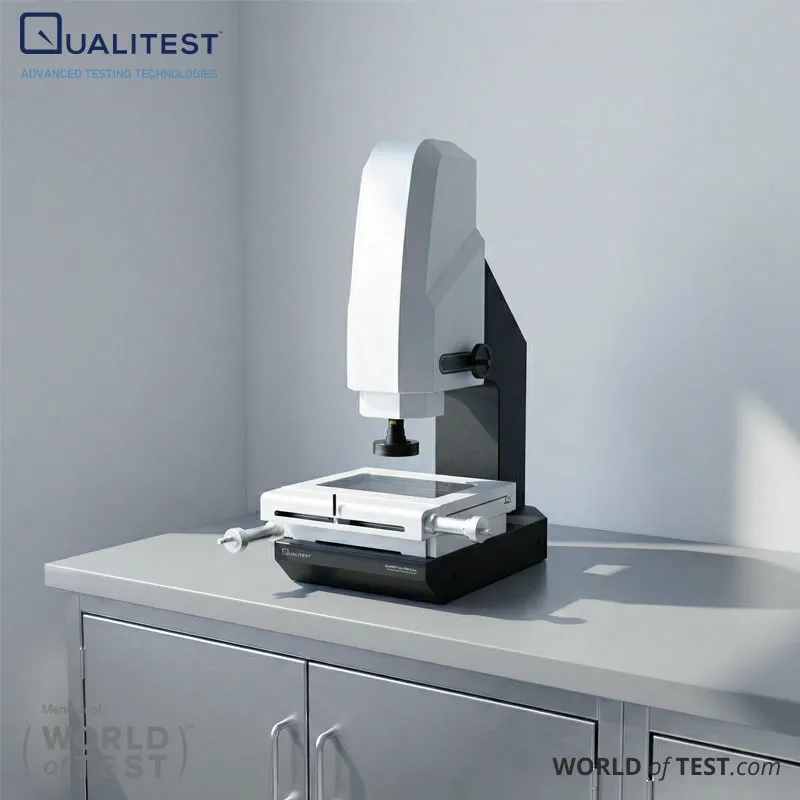

Advanced Video Measuring Projector – QualiVMP™ Adv 2500 Series

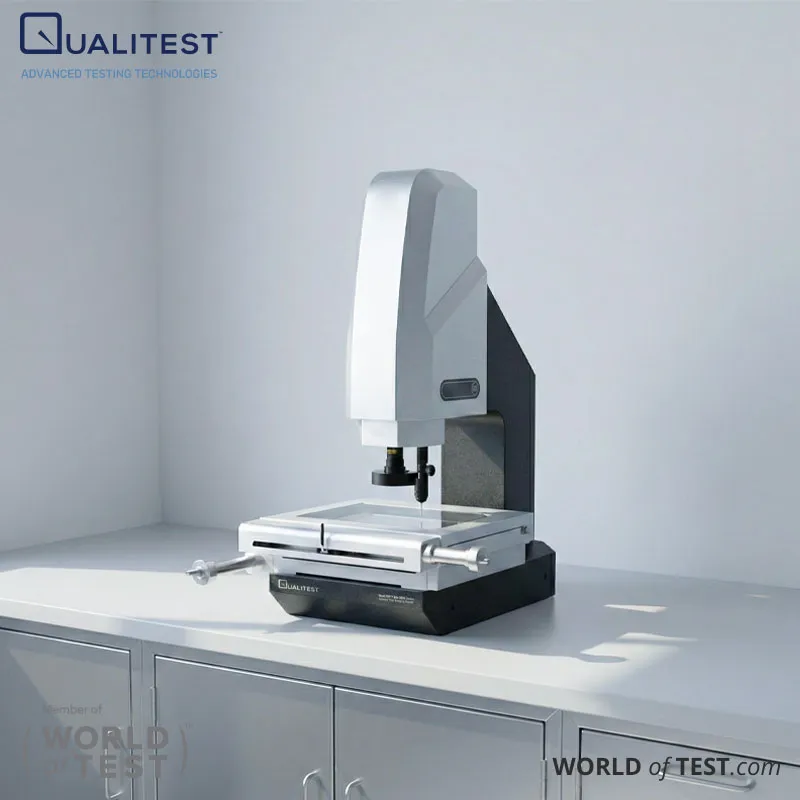

Advanced Video Measuring Projector – QualiVMP™ Adv 3000 Series

Advanced Video Measuring Projector – QualiVMP™ Adv 4000 Series

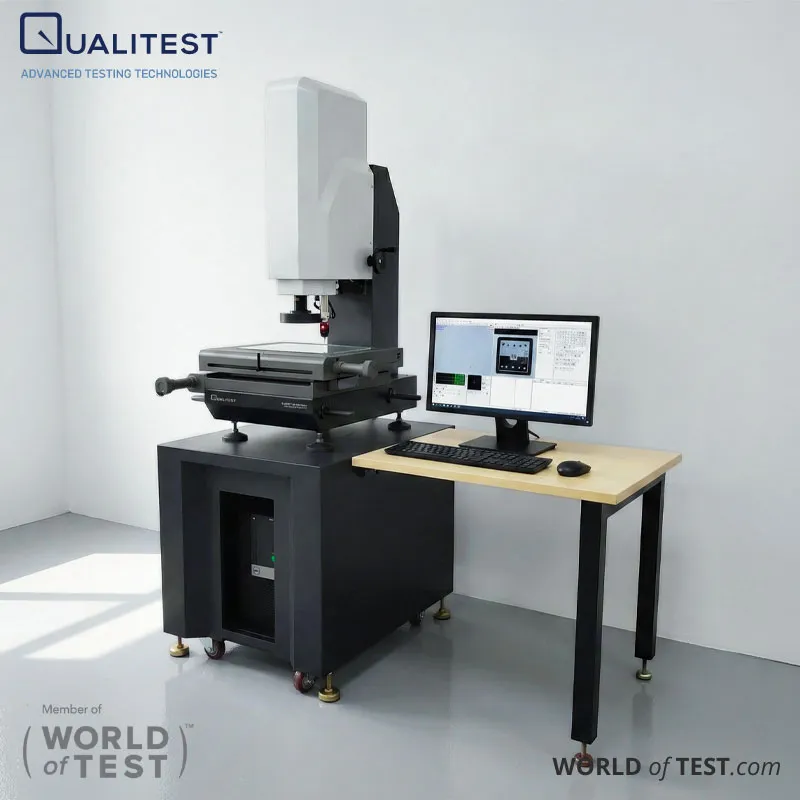

Video Measuring Projector Pro – QualiVMP™ Adv 2000 Series
