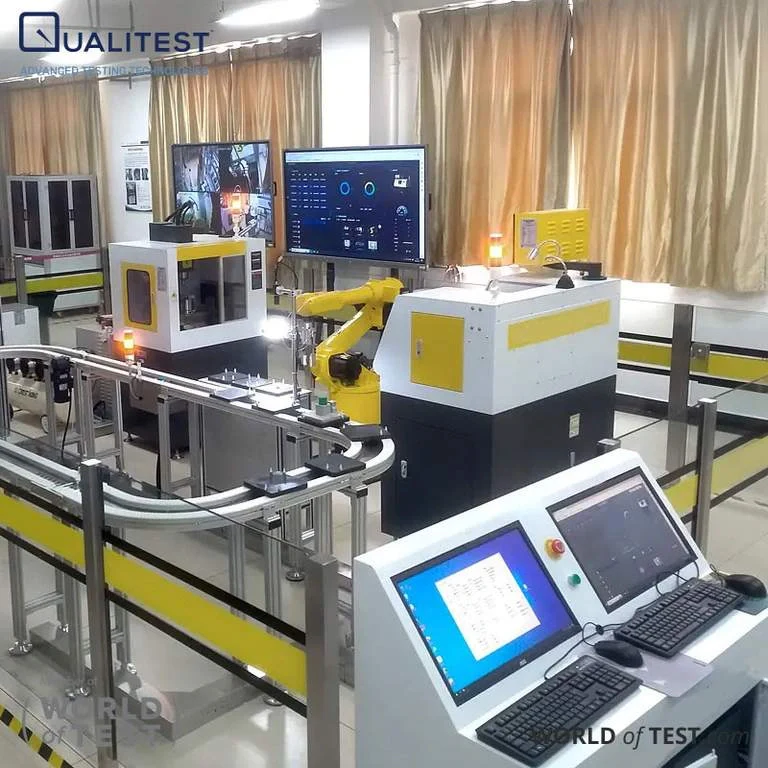

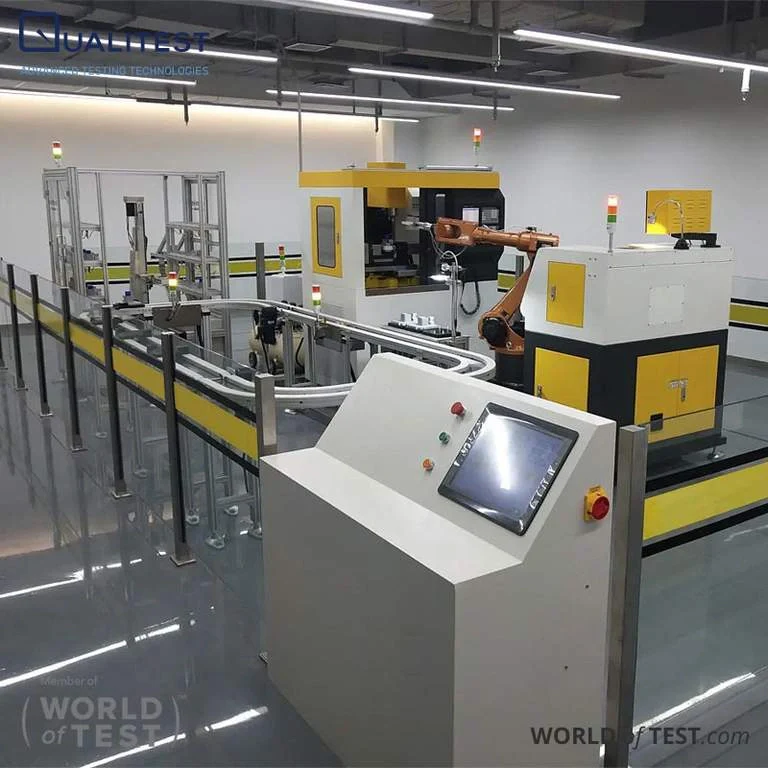

Computer Integrated Manufacturing Industry 4.0 System QualiFF01™ is a fully integrated smart manufacturing training platform featuring real industrial-grade hardware and a complete end-to-end production line that delivers finished products.

The setup combines an industrial conveyor system that links multiple workstations, including a six-axis robotic arm, 5-axis milling machine, lathe machining unit, automated guided vehicle (AGV), 3D warehouse storage system, visual inspection stations, and advanced Industry 4.0 sensors — all connected within a unified networked environment.

Real-time data is captured through smart sensing technology and transmitted via a layered Ethernet and Industrial IoT infrastructure. The system supports centralized monitoring, cloud-based connectivity, and integrated data analytics for complete production visibility and control.

Through a fully simulated Computer Integrated Manufacturing environment, learners experience each stage of modern digital manufacturing, from raw material handling and machining to assembly, inspection, and logistics coordination.

Industry 4.0 marks a transformative shift in modern production systems, building on historical industrial progress from mechanical engines and assembly lines to computer-based automation. Today’s era introduces a highly connected ecosystem driven by advanced internet technologies, data science, big data analytics, the Internet of Things (IoT), additive manufacturing, and intelligent automation with system-wide synchronization.

This evolution in manufacturing technology enhances operational efficiency, enables smarter decision-making, and creates new industrial capabilities that are reshaping global production systems and economic growth.

Our Computer Integrated Manufacturing (CIM) and Flexible Manufacturing Systems (FMS) deliver practical, industry-focused training through a fully simulated smart manufacturing environment. Learners experience the complete production workflow—from customer order processing and inventory management to automated production, quality assurance, and final product dispatch.

Students configure and operate CIM cells while building a strong understanding of large-scale production systems. The platform integrates real industrial-grade equipment, including a full-scale conveyor system linking multiple stations, a six-axis robotic arm, 5-axis CNC milling, CNC lathe machining, an ASRS (Automated Storage and Retrieval System), AGV (Automated Guided Vehicle), visual inspection units, Industry 4.0 sensors, and a fully networked control architecture.

This complete manufacturing line is capable of producing real products, giving learners direct exposure to authentic industrial operations and workflows. The Industry 4.0 education platform is modular and scalable, making it suitable for advanced training in modern computer-integrated manufacturing technologies and smart factory environments.

	Six-Axis Robot The floor-mounted six-axis robotic arm automates part handling across the Computer Integrated Manufacturing system. It manages key transfer operations, including moving components to and from the conveyor system, loading raw material into the CNC milling machine for machining, positioning workpieces for CNC lathe turning, and coordinating part routing between stations and the AGV (Automated Guided Vehicle) system.

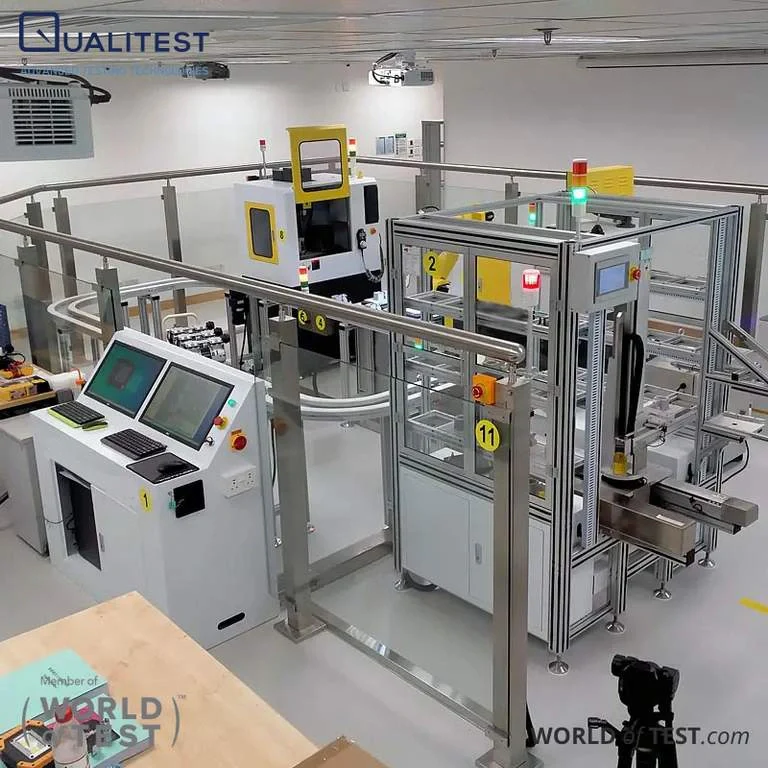

	Automated Storage & Retrieval System (ASRS) The ASRS (Automated Storage and Retrieval System) incorporates a dedicated 4-axis robotic mechanism that precisely transfers parts between storage locations and conveyor-mounted pallets. This ensures smooth, accurate, and efficient material flow within the Computer Integrated Manufacturing environment. The entire system is centrally controlled and continuously monitored through a unified management console, enabling optimized inventory handling and real-time operational visibility. It can also be enhanced with RFID and other advanced tracking technologies to support live inventory tracking, location identification, and improved logistics coordination.
	Automated Guided Vehicle (AGV) The AGV (Automated Guided Vehicle) is responsible for transporting parts between the Automated Storage and Retrieval System (ASRS) and other stations within the Computer Integrated Manufacturing environment, enabling seamless and autonomous material flow. It supports dual navigation modes, including laser-guided and magnetic guidance, allowing flexible operation based on production layout and system configuration. This ensures reliable movement, improved routing accuracy, and efficient coordination across the manufacturing line.
	Industrial Conveyor System The closed-loop conveyor system connects all workstations within the Computer Integrated Manufacturing line, continuously transporting pallets fitted with part holders through each production stage. At every station, robotic units and material handling mechanisms perform automatic loading and unloading of components. This coordinated operation maintains a seamless, uninterrupted workflow across the entire production process, supporting efficient and fully automated manufacturing operations.
	Small CNC Lathe Machining The robot handles the transfer of parts from the conveyor system to the compact CNC lathe, which is designed to machine a variety of materials such as aluminum, brass, plastic, wood, composite materials, and wax. After the machining cycle is completed, the lathe door opens automatically, allowing the robot to safely remove the finished component. The part is then forwarded to the next station, ensuring a smooth, automated flow within the Computer Integrated Manufacturing process.
	Small 5-Axis CNC Machining Center The robot transfers components from the preceding station into the 5-axis CNC machining center, enabling precise multi-axis processing of a wide range of materials, including aluminum, brass, plastic, wood, composite, and wax. The machining center is equipped with an automatic door system that opens for both loading and unloading operations. After the machining cycle is completed, the door reopens, allowing the robot to retrieve the finished part and transport it to the next stage of the Computer Integrated Manufacturing workflow, ensuring a continuous and automated production sequence.

At the core of the solution is the Computer Integrated Manufacturing Industry 4.0 System—a full-scale, modular production line designed for transforming raw materials into finished components, assembling products, and conducting quality testing within a unified workflow.

Each workstation is configurable and supports integration with third-party equipment, enabling customization based on specific training requirements. This adaptability allows the system to be aligned with different educational programs and technical skill levels.

The scalable architecture makes it possible to adjust the number and configuration of stations according to curriculum needs and learning objectives. As a result, learners gain practical exposure to essential industrial operations along with modern Industry 4.0 technologies, building a strong foundation in smart manufacturing and automated production systems.
