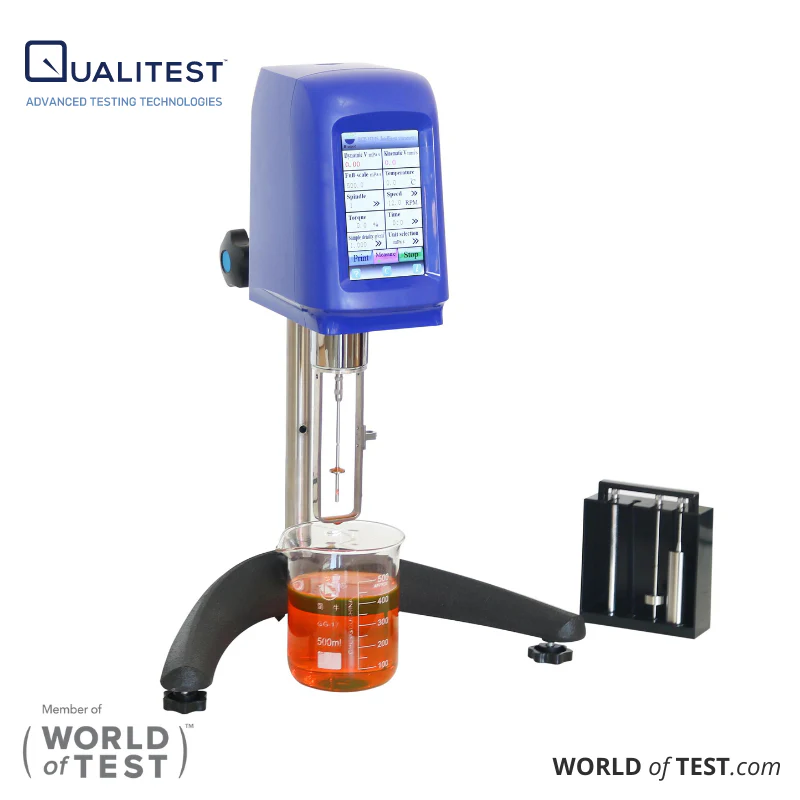

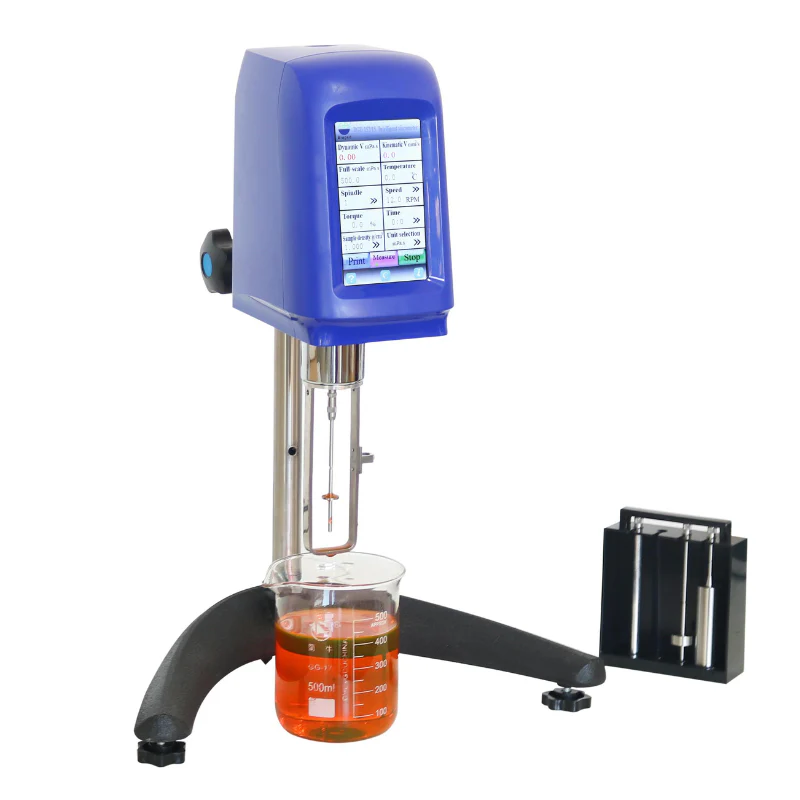

Rotational Viscometer | Touchscreen Rotary Viscometer - ViscoQT 1000 Basic

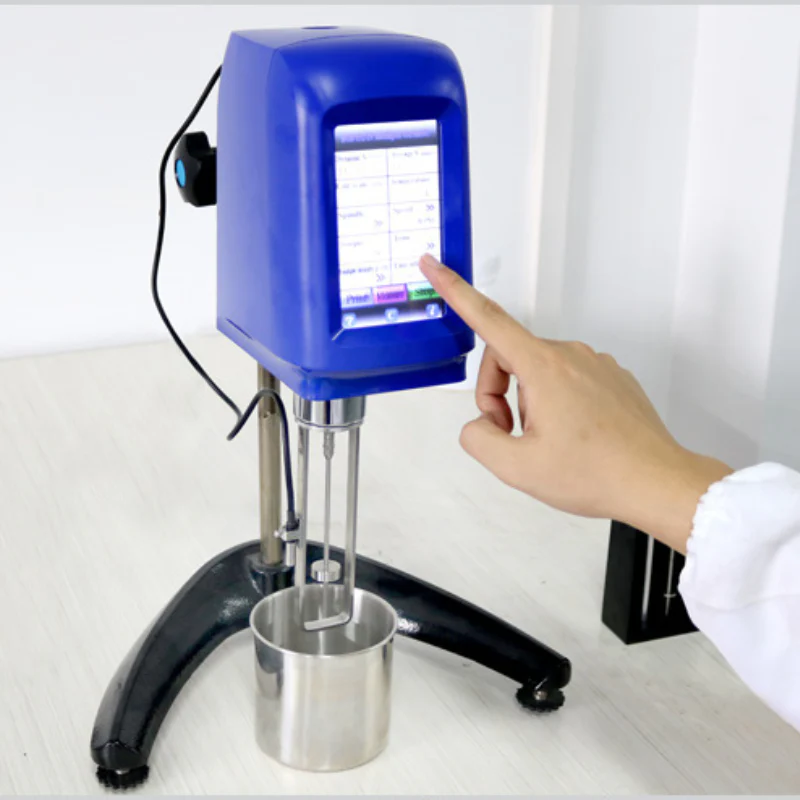

Intelligent Touch-screen Rotary Viscometers have been upgraded from older digital viscometers. They are equipped with a 5-inch touch screen featuring a powerful human-machine interface, making them easy to use and capable of displaying numerous testing parameters. Utilizing an MCS-51 series computer, they constantly control rotation speed and the entire testing process.

They automatically complete viscosity measurements under computer control and display test results on the screen. These viscometers can measure viscous resistance and absolute viscosity of liquids, finding wide applications in petrochemistry, medicine, food, light industry, textile industry, scientific research, and more.

Download PDF Brochure

Key Features of Rotational Viscometer | Touchscreen Rotary Viscometer - ViscoQT 1000  Basic:

• Compact size, excellent stability, high precision, and strong anti-interference capability.
• Patent for multiple sampling in one rotation, unlike other models on the market that only sample once per rotation.
• High sub-division stepper motor driver ensures accurate speed, low noise, and stable movements unaffected by changes in AC power frequency.
• Instrument timing function ensures consistent testing results for thixotropic non-Newtonian fluids.
• Directly driven by stepper motor for convenient speed changes, clear display of rotating speed, reliability, and stability.
• 5-inch high-definition touch screen displays viscosity, speed, torque percentage, and maximum measurement range based on current rotor and speed.
• Continuous viscosity change display with alarms for exceeding measurement range.
• Linear calibration to full range by computer, with measurement precision of ±1.0% of full range.
• Switching adapter allows for wide-range power supply input (100V-240V) for excellent anti-interference.
• Anti-static shell and PC material lifting pole ensure durability.
• New design with small shaft for increased durability.
• ARM chip processor for faster data processing.
• Freely convert between various viscosity units, with automatic conversion from dynamic viscosity to kinematic viscosity.
• Detailed operation instructions and viscosity coefficient correction function provided.
• User-calibrated.
• Built-in RTD temperature sensor monitors sample temperature in real time.
• Equipped with RS 232 interface for convenient printing of measuring data by mini-printer.

 Rotational Viscometer | Touchscreen Rotary Viscometer - ViscoQT 1000  Basic Technical Specifications:

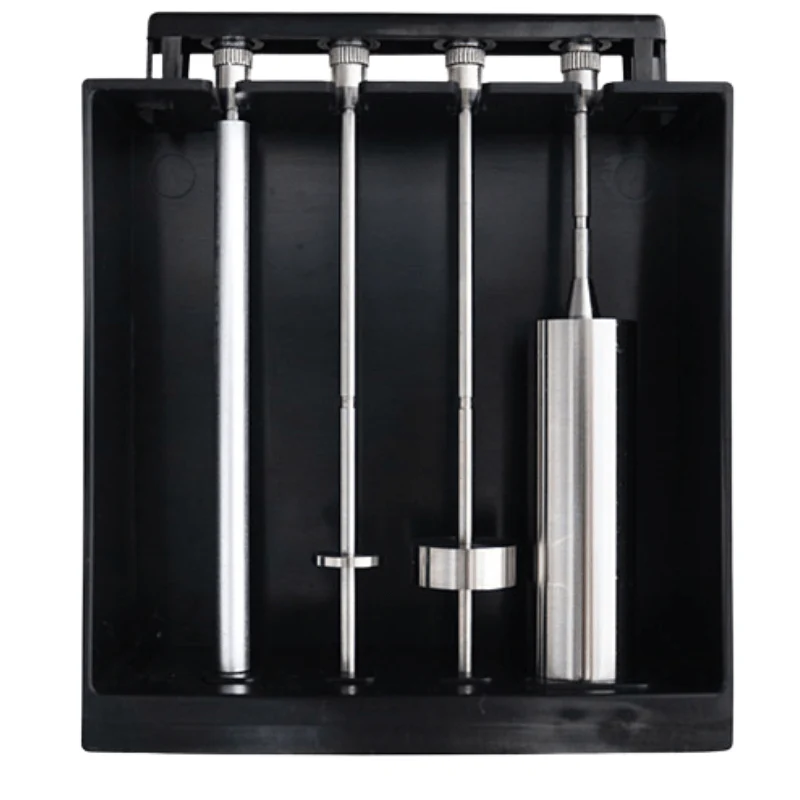

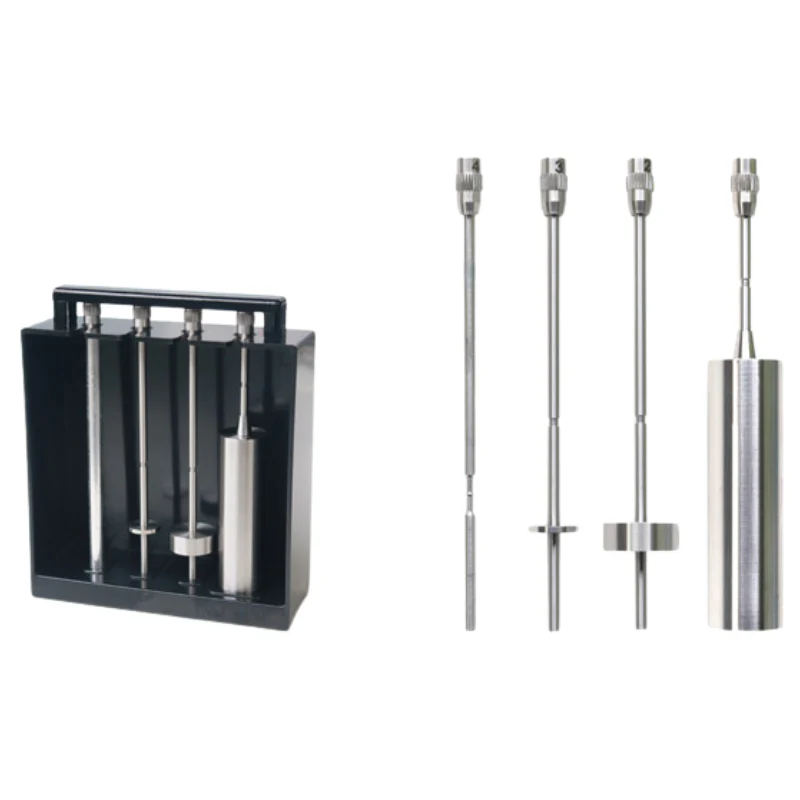

Rotors	Four rotors - No.1, No.2, No.3, No.4
Measuring Range	ViscoQT 1000/1S: 10～100,000 (105) mPa.s ViscoQT 1000/2S: 10～2,000,000 (106) mPa.s
Rotating Speed	ViscoQT 1000/1S: 6r/min, 12r/min, 30r/min, 60r/min ViscoQT 1000/2S: 0.3 r/min, 0.6 r/min, 1.5 r/min, 3r/min, 6r/min, 12r/min, 30r/min, 60r/min
Measurement Precision	±1.0 % of full range (Newtonian fluids)
Measurement Repeatability	±0.5 % of full range (Newtonian fluids)
Voltage	220V/50Hz (110V also Available)
Weight	10KG
Dimensions	308mm×300mm×450mm (L×W×H)
Optional Accessories	THD Series---Low Temperature Thermostatic Bath ViscoQT-ACC 1600---Standard Oil（500ml） ViscoQT-ACC 1601---Low Viscosity Adapter（The 0th rotor and can measure 1.0 mPa.s sample） ViscoQT-ACC 1602---Small Sample Adapter（It’s specially designed for customers with small samples and requires only a quantity as small as 5～18ml；Sample cup is easily cleaned, installed, removed, and observed；Accurate data of shear rate and shear stress can be obtained for a minute analysis of the fluid characteristics of the sample；One-off sample cups are available） ViscoQT-ACC 1603---Mini Single Color Printer ViscoQT-ACC 1604---RTD Thermometer（-20℃～120℃） ViscoQT-ACC 1605--- Thermoses are designed to accurately measure the viscosity of heated oil, paraffin, asphalt emulsions, medicine, high polymers, and similar liquid materials at high temperatures. They enable precise control of sample temperature within a range from room temperature to +300°C. With programmable intelligent thermostats, they ensure temperature fluctuation within 0.1°C. Sample dosage can be as small as 10ml, and disposable sample cups are available for convenience. The standard SC4 spindle type can be easily applied, making it user-friendly.
Ordering Information	ViscoQT 1000/1S---Intelligent Touch-screen Rotary Viscometers（10-100,000mPa.s）ViscoQT 1000/2S---Intelligent Touch-screen Rotary Viscometers（10-2,000,000mPa.s）
