$4,112.50The Story
Programmable Touch-screen Viscometers model ViscoQT TS-DV-I and TS-DV-II with Temperature Control combine viscosity measurement and temperature control in one machine. They revolutionize the current method of viscosity measurement, which typically requires the use of a thermostatic bath, viscometer, and a separate sample adapter.
Measuring a sample's viscosity changes under different conditions is invaluable for estimating its rheological behavior. Precisely controlling the sample temperature is crucial for obtaining accurate and comparable test results. The most significant advantage of this machine is its precise sample temperature control throughout the entire test.
Its temperature control system comprises semiconductor technology and a built-in automatic optimization program. The temperature control precision can reach ±0.1℃. Operators can control the sample temperature not only through the machine but also via optional software, providing excellent flexibility in operation.
Programmable Touch-screen Rotary Viscometer with Temperature Control | ViscoQT TS-DV Series Features:

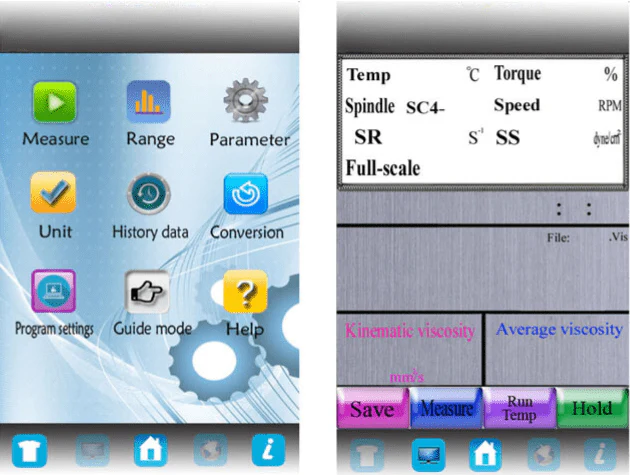

- Consists of a 7-inch wide touch screen viscometer, small amount sample adapter (SSR), cylindrical sample sleeve, SC4 rotor, and temperature controller.
- ViscoQT TS-DV-II can display shear rate and shear stress, facilitating precise measurements under specific shear rates.
- Requires only 2ml to 16ml of sample; the cylindrical structure of the SC4 rotor ensures precise viscosity measurement.
- Electrical lifting and precise location make SSR easy to assemble and disassemble, convenient for cleaning.
- SSR fits closely with the temperature controller, ensuring precise and constant sample temperature.
- With small sample amounts, the rotor's stirring action minimizes sample temperature non-uniformity, significantly reducing sample hydrothermal time.
- All other features of the Viscometer are the same as the standard Programmable Touch-screen Viscometer.
Programmable Touch-screen Rotary Viscometer with Temperature Control | ViscoQT TS-DV Series Technical Specifications:
|
Ordering Information → Parameters ↓ |
ViscoQT TS-DV-I |
ViscoQT TS-DV-II |
|
Measurement Range (mPa.s) |
ViscoQT TS1-DV-I: 5-330K ViscoQT TS2-DV-I: 50-3.3M ViscoQT TS3-DV-I: 100-6.6M ViscoQT TS4-DV-I: 400-26.4M |
ViscoQT TS1-DV-II: 5-1M ViscoQT TS2-DV-II: 25-10M ViscoQT TS3-DV-II: 50-20M ViscoQT TS4-DV-II: 200-80M |
|
R.P.M (per min) |
0.3-100 |
0.1-200 |
|
Functions |
Measure viscosity |
Measure viscosity, shear rate, shear stress |
|
Software (Optional) |
ViscoQT-ACC 1607 Data collection and graphing software |
ViscoQT-ACC Data collection and graphing software |
|
Temp. Control Method |
Set single-point temperature |
Rise temperature by programme |
|
Rotors |
Standard： SC4-21#、27#、28#、29# |
|
|
Sample |
2-16ml |
|
|
Measurement |
±1.0% (of the full range) |
|
|
Repeatability |
±0.5% (of the full range) |
|
|
Temperature Range |
-1℃～150℃(precision±0.1℃) |
|
|
Voltage |
Input： AC100-240V, 50Hz/60Hz；Output： DC17V 1.2A |
|
|
Package Weight |
20 KG |
|
|
Package Size |
490mm×360mm×600mm |
|
|
Optional Accessories |
THD Series---Low Temperature Thermostatic Bath ViscoQT-ACC 1601---Low Viscosity Adapter（The 0th rotor and can measure 1.0 mPa.s sample） ViscoQT-ACC 1602---Small Sample Adapter（It’s specially designed for customers with small samples and requires only a quantity as small as 5～18ml；Sample cup is easily cleaned, installed, removed, and observed；Accurate data of shear rate and shear stress can be obtained for a minute analysis of the fluid characteristics of the sample；One-off sample cups are available） ViscoQT-ACC 1603---Mini Single Color Printer ViscoQT-ACC 1604---RTD Thermometer（-20℃～120℃） ViscoQT-ACC 1605---Thermoses（It has been designed to accurately measure the viscosity of heated oil, paraffin, asphalt emulsions, medicine, high polymer and similar liquid materials at high temperatures. It allows control of a sample’s temperature at a range of room temperature +300℃. It can program the intelligent thermostat and ensures its temperature fluctuation within 0.1℃. Sample dosage is as small as 10ml, and one-off sample cups are available. Standard type of SC4 spindle can be applied, which is easy to use） ViscoQT-ACC 1608--- Viscometer data collection and programmed analysis software（Automated data collection and testing； resulting in viscometer graph, and recording measuring data each time；Allowing comparison of at most 10 history data；Output Excel documents；Programmable downloading, Offline working；Data Analysis data, draw charts and print) |
|
