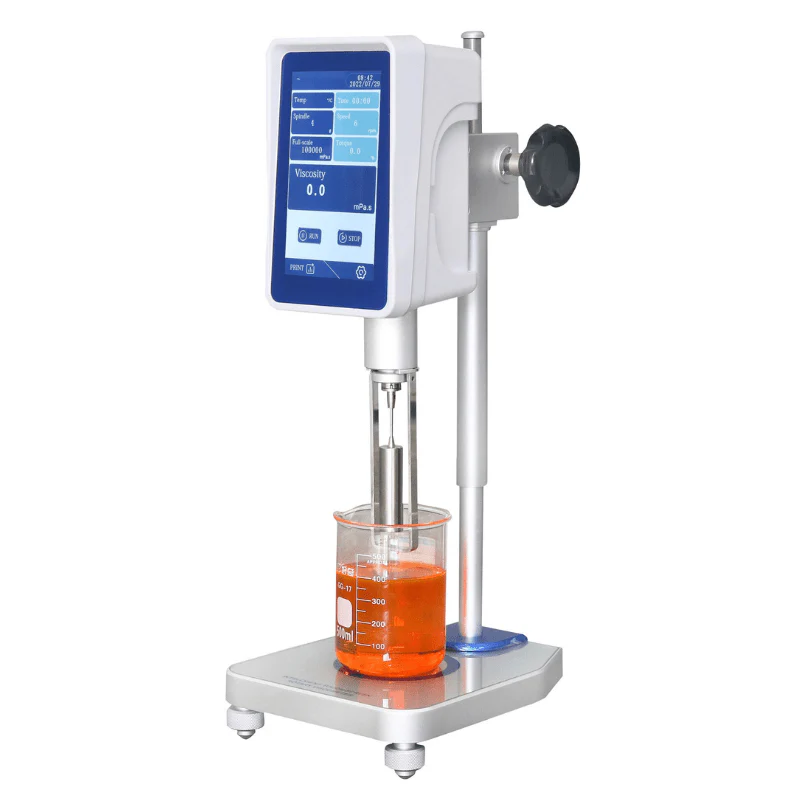

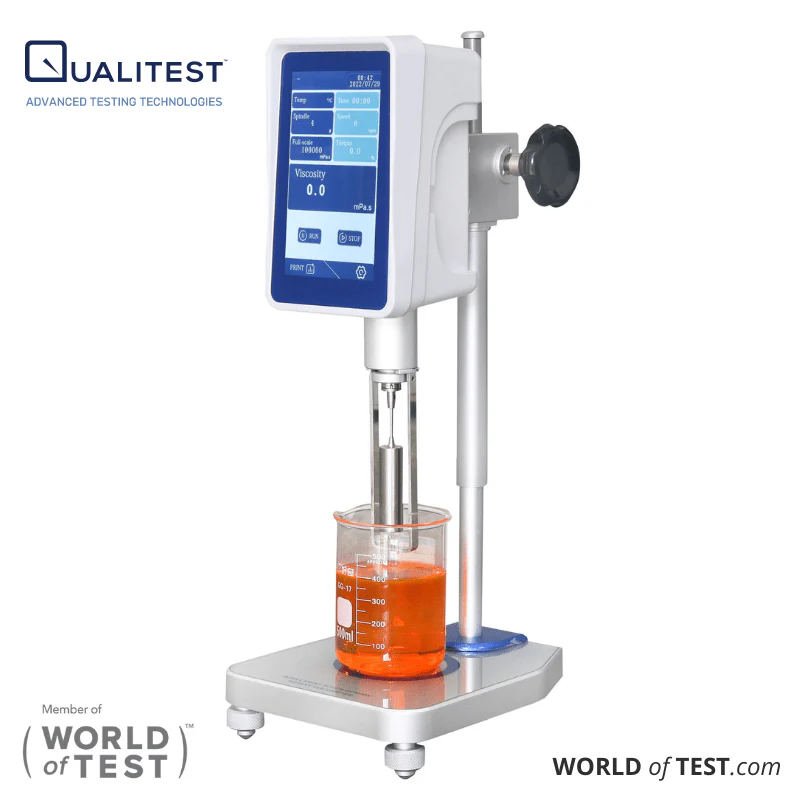

Touchscreen Rotational Viscometer - Intelligent Laboratory Viscometer | ViscoQT 2000

The Touchscreen Rotational Viscometer—Intelligent Laboratory Viscometer | ViscoQT 2000 is the latest generation to harness the power of cutting-edge technology in Viscosity Measurement. Compared to other rotational viscometers, the ViscoQT 2000 stands out for its enhanced stability, precision, and user-friendliness.

Download PDF Brochure

Intelligent Touch-screen Rotational Viscometer (New) | ViscoQT 2000 Features:

• A 7-inch high-definition color touchscreen display provides comprehensive information such as viscosity, speed, torque percentage, and the maximum measurement range under the current rotor and speed settings, ensuring ease of operation.
• Special buckle design facilitates easy disassembly or installation of rotors, reducing damage to small shafts and increasing durability.

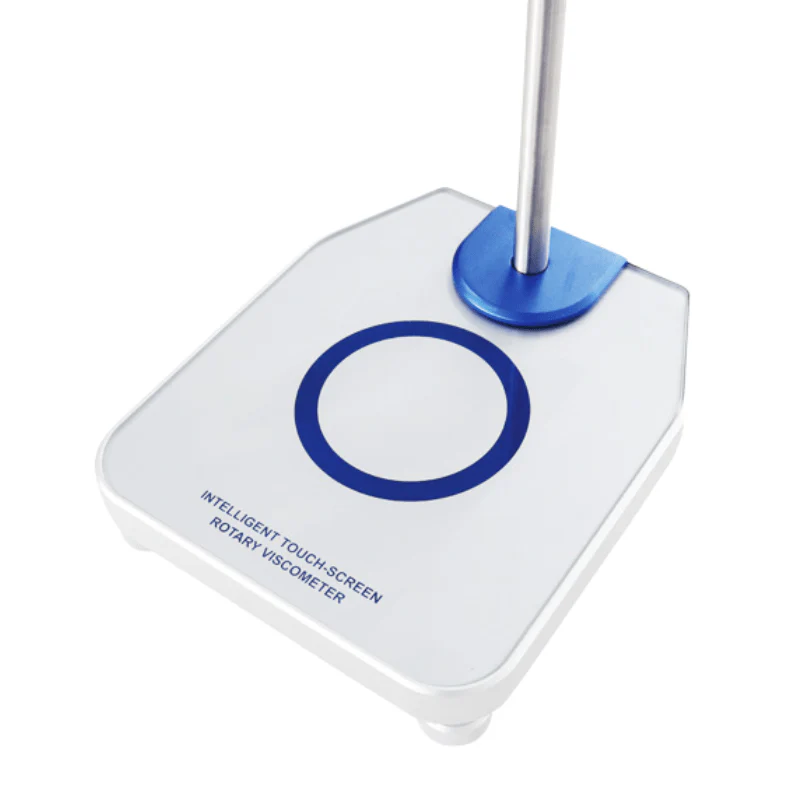

• Strengthened glass base for effortless cleaning.
• User calibration capability eliminates the need for returning the viscometer to the manufacturer.
• Exclusive patents allow for multiple samplings in one rotation, unlike competitors that only sample once per rotation.
• High sub-division stepper motor driver ensures accurate speed, low noise, and stable movements, unaffected by changes in AC power frequency.
• Timing function for thixotropic Non-Newtonian fluids ensures consistent testing results.
• Directly driven by a stepper motor for convenient speed changes, reliability, and stability.
• Continuous viscosity change display with an alarm for over-measuring range.
• Linear calibration to the full range via computer, achieving a measurement precision of ±1.0% of the full range.
• Switching adapter with wide range power supply input (100V-240V) for excellent anti-interference.
• Antistatic shell and PC material lifting pole enhance durability.
• New design features a durable small shaft.
• ARM chip processor enables faster data processing.
• Built-in high-precision electronic spirit levels allow users to monitor levels in real-time via the screen.
• Freely convert between various viscosity units, with automatic conversion of dynamic viscosity to kinematic viscosity.
• Detailed operation instructions and viscosity coefficient correction function included.
• Comes with RS-232 interface and can conveniently print measurement data via optional micro-printer

Touchscreen Rotational Viscometer - Intelligent Laboratory Viscometer | ViscoQT 2000 Technical Specifications:

Rotors	No.1, No.2, No.3, No.4 (No.0 is optional)
Measuring Range	10 to 100,000 (10^5) mPa.s
Rotation Speed	6r/min, 12r/min, 30r/min, 60r/min
Measurement Precision	±1.0% of full range (Newtonian fluids)
Measurement Repeatability	±0.5% of full range (Newtonian fluids)
Voltage	100V-240V
Weight	10Kg
Dimensions	308mm × 300mm × 450mm (L × W × H)
Ordering Information	ViscoQT 2000 - New Intelligent Touch-screen Rotational Viscometers
