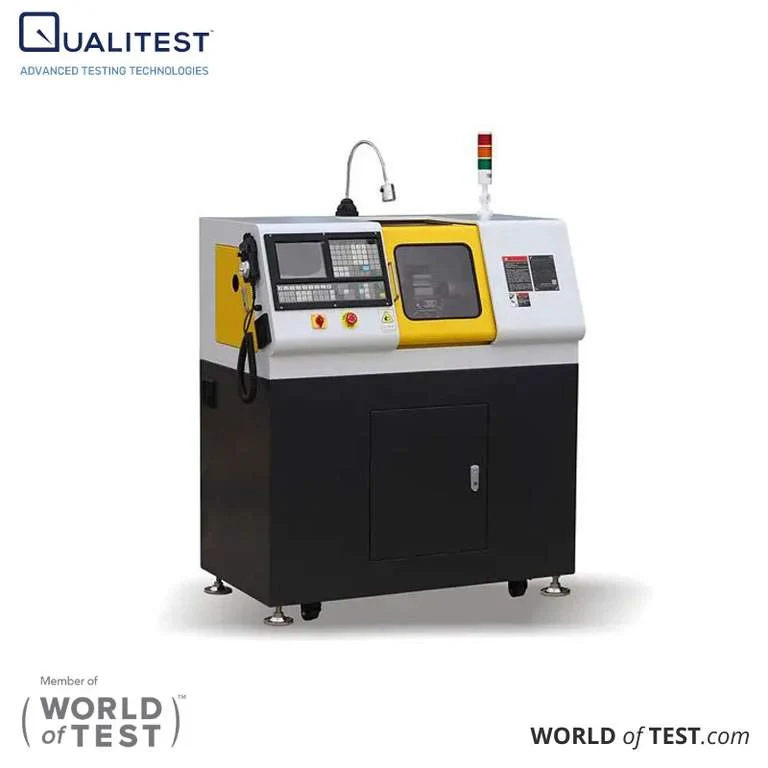

CNC Lathe – QualiLathe™ 210B
CNC Lathe – QualiLathe™ 210B is a compact precision CNC lathe powered by the KY980Tc turning control system, with optional Siemens or FANUC control options and a multilingual user interface for flexible operation.
It comes standard with an MPG handwheel for precise manual control, an automatic 4-position tool post (with optional 8-tool configuration), and a robust build using high-grade cast construction. The machine is engineered with a reinforced guideway, precision ball screw drive system, automatic lubrication, flood coolant system, and an interlocked safety enclosure for secure operation.
The X and Z axes are driven by high-performance servo motors, enabling stable and accurate machining of a wide range of materials such as wax, plastics, acrylic, free-cutting alloys, aluminum, and steel.
This CNC lathe is fully compatible with leading CAD/CAM software including MasterCAM, UG (NX), Fusion 360, and SolidWorks, ensuring seamless workflow integration for design-to-production processes.
Designed specifically for educational environments, training labs, and small-scale workshops, the QualiLathe™ 210B supports multiple machining operations including internal and external cylindrical turning, face turning, taper cutting, and precision thread cutting, making it a versatile solution for modern CNC training and light manufacturing needs.
|
Chuck with three jawsThe 100 mm (4-inch) self-centering chuck is supplied with an optional 4-jaw chuck configuration for added flexibility in workpiece clamping. The spindle housing is constructed from cast iron, ensuring high rigidity, vibration resistance, and stable performance during precision machining. An integrated encoder is included with the spindle system, enabling accurate synchronization for high-precision threading operations and consistent cutting results. |
Lubrication systemThe machine is equipped with a guide rail lubrication system that ensures smooth motion of components, reduces wear and friction, and improves long-term operational reliability. This system helps maintain consistent machining accuracy while extending the overall service life of the machine. |
Efficient Cooling and FiltrationThe large-capacity circulating coolant tank is designed with an integrated filtration system that effectively removes chips and impurities while maintaining stable temperature control during machining. This helps improve cutting efficiency, protect tooling, and support longer tool life. The system is flexible in operation, supporting both manual control and G-code based automated coolant management for enhanced machining accuracy and process consistency. |
|
Automatic tool changeThe machine is fitted with a 4-station automatic tool changer, designed to streamline multi-step machining and handle more complex part geometries with ease. For expanded capability, an optional 8-station configuration is available. It supports 12 × 12 mm turning tools, providing stable tool holding and reliable performance for a wide range of precision turning operations. |
Industrial Lathe CNC systemThe industrial CNC lathe system is engineered to deliver high stability, long-term durability, and straightforward operation for efficient machining workflows. It features an integrated handwheel trial-cutting function that enables users to check program paths and positioning accuracy prior to final cutting. This helps improve machining precision, reduce setup errors, and enhance overall production efficiency. |
Machine tool bodyThe machine tool body is constructed from high-quality cast materials and is equipped with a lathe tailstock for added support during machining operations. A semi-automatic lubrication system is integrated to ensure consistent lubrication of guide rails and ball screws, reducing wear and maintaining smooth movement. This design enhances machining accuracy while improving overall machine longevity. |
Optional Accessories
Customer Case
 |
 |
 |
 |
 |
 |
 |
 |
CNC Lathe – QualiLathe™ 210B Features
- High-performance 2-axis CNC lathe controller designed for precise and efficient machining control. It features an 8-inch color display with a selectable multilingual interface, including English and other languages for flexible operation.
- Standard configuration includes an MPG handwheel for accurate manual positioning and setup. The system is built with high-quality cast materials, ensuring a compact structure with a reinforced guideway for improved stability during operation.
- It comes equipped with an automatic 4-position tool post and supports high-quality 2-axis AC servo motor control for smooth and accurate motion. For enhanced safety, the controller automatically halts operation when the protective door is opened.
- Connectivity options include USB and RS232 ports with DNC functionality, along with G-code-based speed control for seamless programming and execution.
- This CNC controller is well-suited for DIY applications, hobby projects, and educational CNC training environments.
CNC Lathe – QualiLathe™ 210B Technical Specifications
| Turning diameter over bed(max) | 210mm |
| Chuck diameter | 100mm |
| Spindle speed | 300-1750r/min(control speed of G code) |
| Spindle through-hole | 26mm |
| Spindle mount | MT4 |
| Spindle motor power | 1100W |
| X axis travel | 90mm |
| Z axis travel | 300mm |
| X/Z axis motor | 400W Servo Motor |
| Max. moving speed | 8000mm/min |
| Max. feeding speed | 2000mm/min |
| Control system | 980Tc Turning CNC System, Optional siemens 808D |
| MPG handwheel | 4 axis |
| Automatic tool change system(ATC) | 4 Tools (option 8 tools) |
| Tool dimension | 12x12mm |
| Tailstock taper | MT2 |
| Tailstock sleeve diameter | 20mm |
| Travel of tailstock | 25mm |
| Positioning accuracy | 0.02mm |
| Repeatability accuracy | 0.03mm |
| Power Supply | 220VAC / 110VAC |
| Weight(NW/GW) | 280/320KG |
| Overall dimension | 1170 x 700 x 1300 mm |
| Packing size | 1200 x 860 x 1500 mm |
Description
CNC Lathe – QualiLathe™ 210B
CNC Lathe – QualiLathe™ 210B is a compact precision CNC lathe powered by the KY980Tc turning control system, with optional Siemens or FANUC control options and a multilingual user interface for flexible operation.
It comes standard with an MPG handwheel for precise manual control, an automatic 4-position tool post (with optional 8-tool configuration), and a robust build using high-grade cast construction. The machine is engineered with a reinforced guideway, precision ball screw drive system, automatic lubrication, flood coolant system, and an interlocked safety enclosure for secure operation.
The X and Z axes are driven by high-performance servo motors, enabling stable and accurate machining of a wide range of materials such as wax, plastics, acrylic, free-cutting alloys, aluminum, and steel.
This CNC lathe is fully compatible with leading CAD/CAM software including MasterCAM, UG (NX), Fusion 360, and SolidWorks, ensuring seamless workflow integration for design-to-production processes.
Designed specifically for educational environments, training labs, and small-scale workshops, the QualiLathe™ 210B supports multiple machining operations including internal and external cylindrical turning, face turning, taper cutting, and precision thread cutting, making it a versatile solution for modern CNC training and light manufacturing needs.
|
Chuck with three jawsThe 100 mm (4-inch) self-centering chuck is supplied with an optional 4-jaw chuck configuration for added flexibility in workpiece clamping. The spindle housing is constructed from cast iron, ensuring high rigidity, vibration resistance, and stable performance during precision machining. An integrated encoder is included with the spindle system, enabling accurate synchronization for high-precision threading operations and consistent cutting results. |
Lubrication systemThe machine is equipped with a guide rail lubrication system that ensures smooth motion of components, reduces wear and friction, and improves long-term operational reliability. This system helps maintain consistent machining accuracy while extending the overall service life of the machine. |
Efficient Cooling and FiltrationThe large-capacity circulating coolant tank is designed with an integrated filtration system that effectively removes chips and impurities while maintaining stable temperature control during machining. This helps improve cutting efficiency, protect tooling, and support longer tool life. The system is flexible in operation, supporting both manual control and G-code based automated coolant management for enhanced machining accuracy and process consistency. |
|
Automatic tool changeThe machine is fitted with a 4-station automatic tool changer, designed to streamline multi-step machining and handle more complex part geometries with ease. For expanded capability, an optional 8-station configuration is available. It supports 12 × 12 mm turning tools, providing stable tool holding and reliable performance for a wide range of precision turning operations. |
Industrial Lathe CNC systemThe industrial CNC lathe system is engineered to deliver high stability, long-term durability, and straightforward operation for efficient machining workflows. It features an integrated handwheel trial-cutting function that enables users to check program paths and positioning accuracy prior to final cutting. This helps improve machining precision, reduce setup errors, and enhance overall production efficiency. |
Machine tool bodyThe machine tool body is constructed from high-quality cast materials and is equipped with a lathe tailstock for added support during machining operations. A semi-automatic lubrication system is integrated to ensure consistent lubrication of guide rails and ball screws, reducing wear and maintaining smooth movement. This design enhances machining accuracy while improving overall machine longevity. |
Optional Accessories
Customer Case
|
|
|
|
|
|
|
|
CNC Lathe – QualiLathe™ 210B Features
- High-performance 2-axis CNC lathe controller designed for precise and efficient machining control. It features an 8-inch color display with a selectable multilingual interface, including English and other languages for flexible operation.
- Standard configuration includes an MPG handwheel for accurate manual positioning and setup. The system is built with high-quality cast materials, ensuring a compact structure with a reinforced guideway for improved stability during operation.
- It comes equipped with an automatic 4-position tool post and supports high-quality 2-axis AC servo motor control for smooth and accurate motion. For enhanced safety, the controller automatically halts operation when the protective door is opened.
- Connectivity options include USB and RS232 ports with DNC functionality, along with G-code-based speed control for seamless programming and execution.
- This CNC controller is well-suited for DIY applications, hobby projects, and educational CNC training environments.
CNC Lathe – QualiLathe™ 210B Technical Specifications
| Turning diameter over bed(max) | 210mm |
| Chuck diameter | 100mm |
| Spindle speed | 300-1750r/min(control speed of G code) |
| Spindle through-hole | 26mm |
| Spindle mount | MT4 |
| Spindle motor power | 1100W |
| X axis travel | 90mm |
| Z axis travel | 300mm |
| X/Z axis motor | 400W Servo Motor |
| Max. moving speed | 8000mm/min |
| Max. feeding speed | 2000mm/min |
| Control system | 980Tc Turning CNC System, Optional siemens 808D |
| MPG handwheel | 4 axis |
| Automatic tool change system(ATC) | 4 Tools (option 8 tools) |
| Tool dimension | 12x12mm |
| Tailstock taper | MT2 |
| Tailstock sleeve diameter | 20mm |
| Travel of tailstock | 25mm |
| Positioning accuracy | 0.02mm |
| Repeatability accuracy | 0.03mm |
| Power Supply | 220VAC / 110VAC |
| Weight(NW/GW) | 280/320KG |
| Overall dimension | 1170 x 700 x 1300 mm |
| Packing size | 1200 x 860 x 1500 mm |
