Gloss Meter Micro-Gloss 45°

Gloss Meter Micro-Gloss 45°

Single Angle Gloss Meter

Gloss meter for ceramic and plastic applications

Introducing the Gloss Meter: Your Reliable Gloss Measurement Standard

Our Gloss Meter, the trusted industry benchmark for measuring gloss, sets the gold standard with its micro-gloss technology. Its user-friendly interface and intelligent features make gloss measurement a breeze, ensuring exceptional performance in temperature control and inter-instrument consistency, instilling confidence in your quality control processes.

Gloss Meter Micro-Gloss 45° Key Features:

• Intelligent gloss measurement with seamless communication
• Unmatched repeatability and inter-instrument agreement for dependable results
• Smart auto-diagnosis for consistently accurate readings

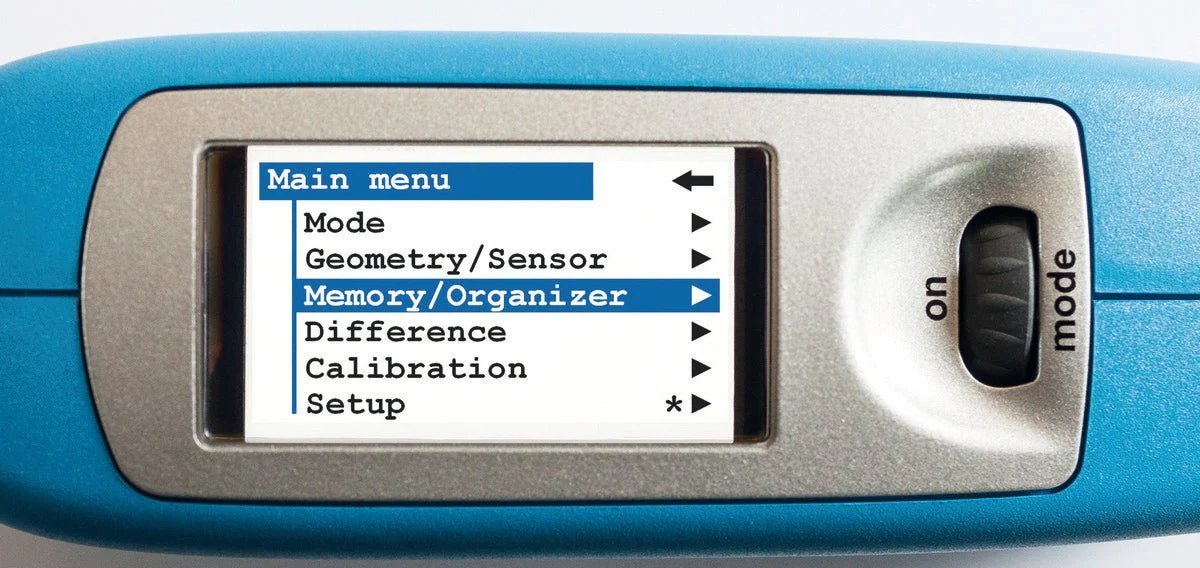

• Vivid color display for effortless reading and operation

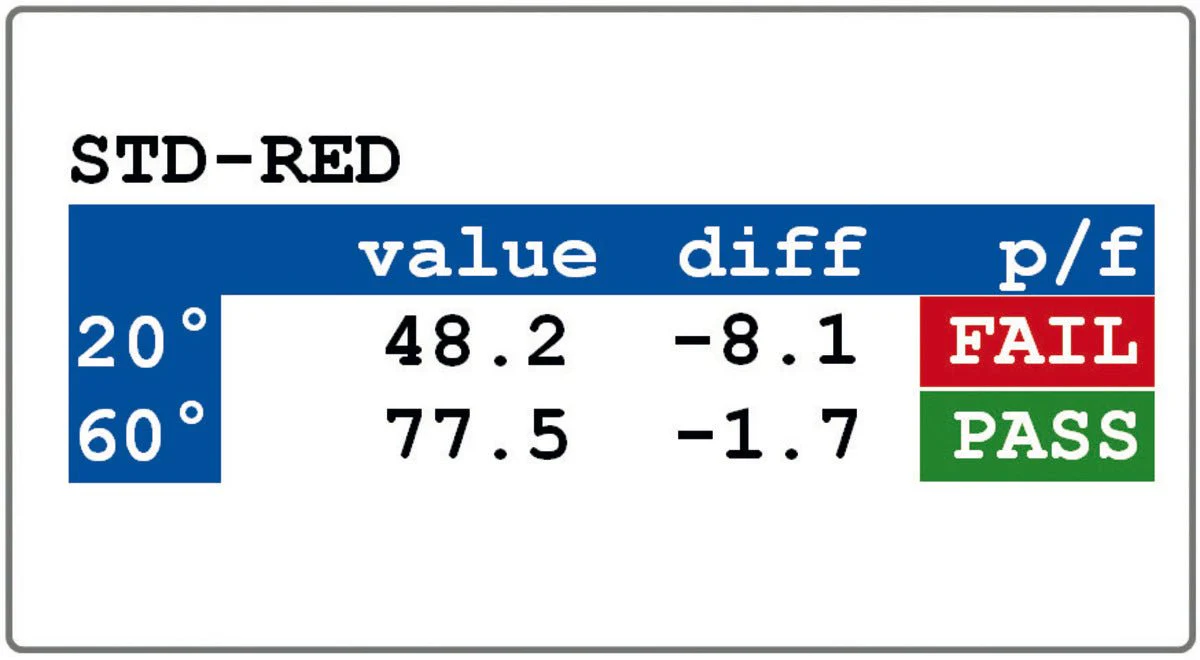

• Comprehensive features: Statistics, Pass/Fail, and Memory, ideal for rigorous quality control and on-site checks
• Continuous mode for assessing uniformity across extensive surfaces

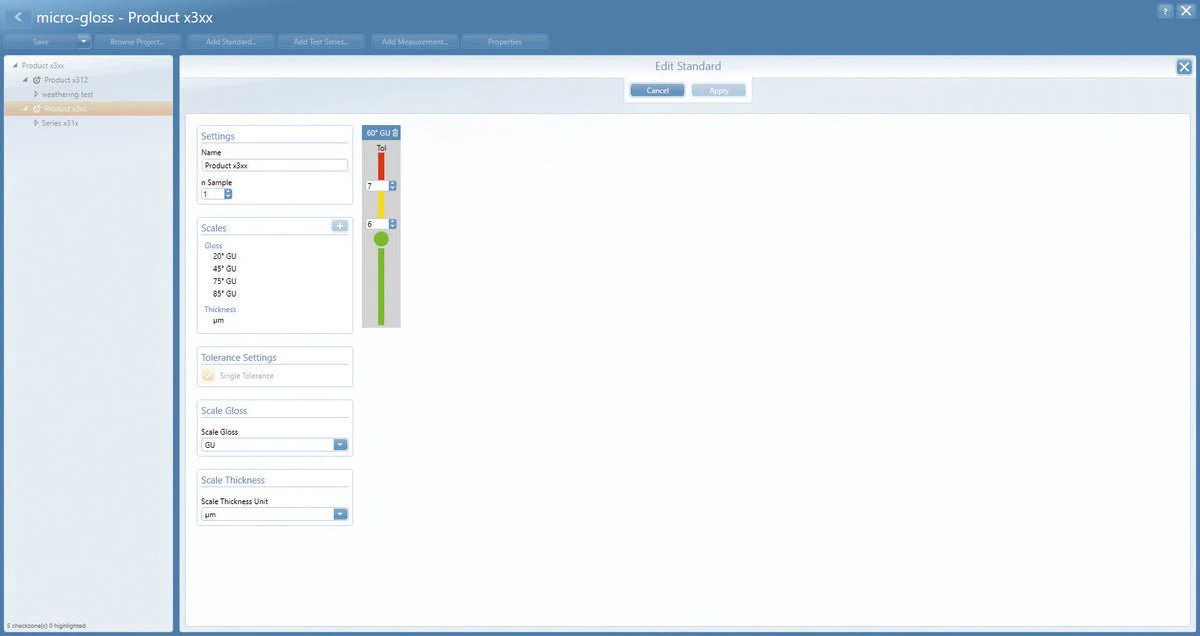

• Utilize smart-chart software for instant QC reports, including trend graphs and customizable Pass/Fail limits

Experience the pinnacle of gloss measurement accuracy and efficiency with our Gloss Meter, your go-to solution for superior gloss analysis.

Gloss Meter Micro-Gloss 45° Standard Package includes:

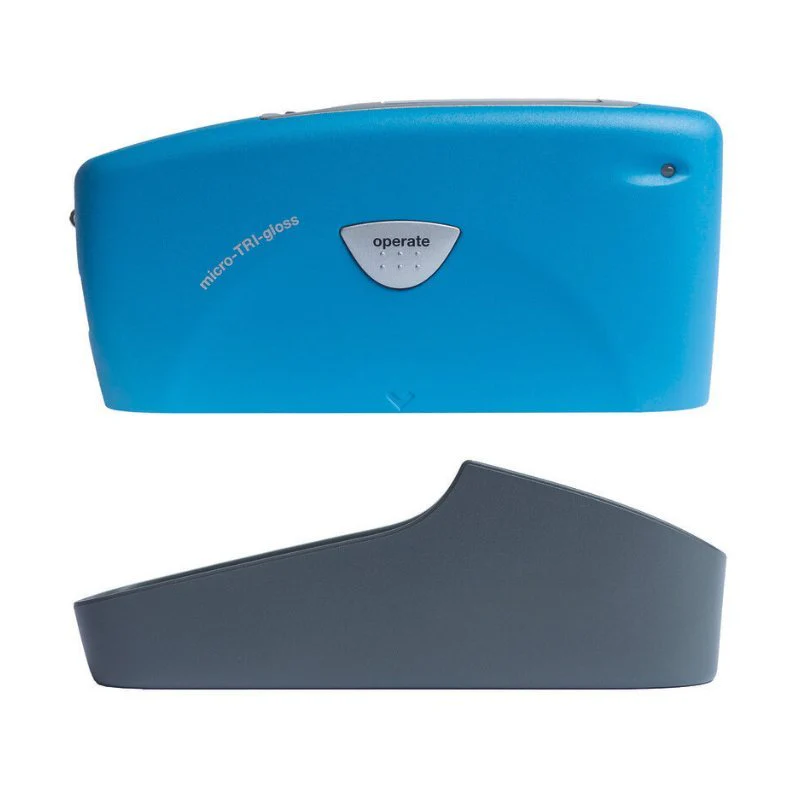

1. Glossmeter

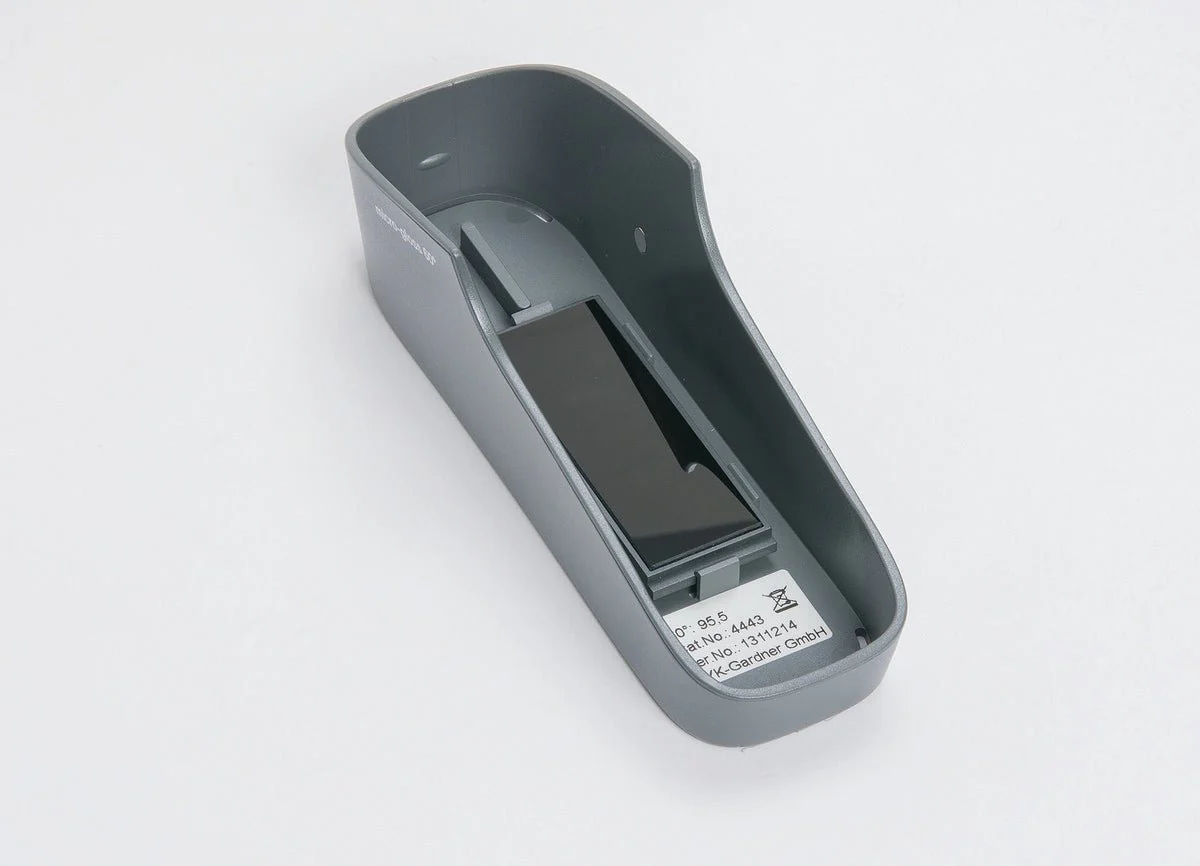

2. Calibration holder 60° XS (4559)
3. USB-cable micro-gloss (4405)
4. Software with 2 licenses for download:
5. smart-lab Gloss (4866) or smart-process Gloss (4867)
6. Battery

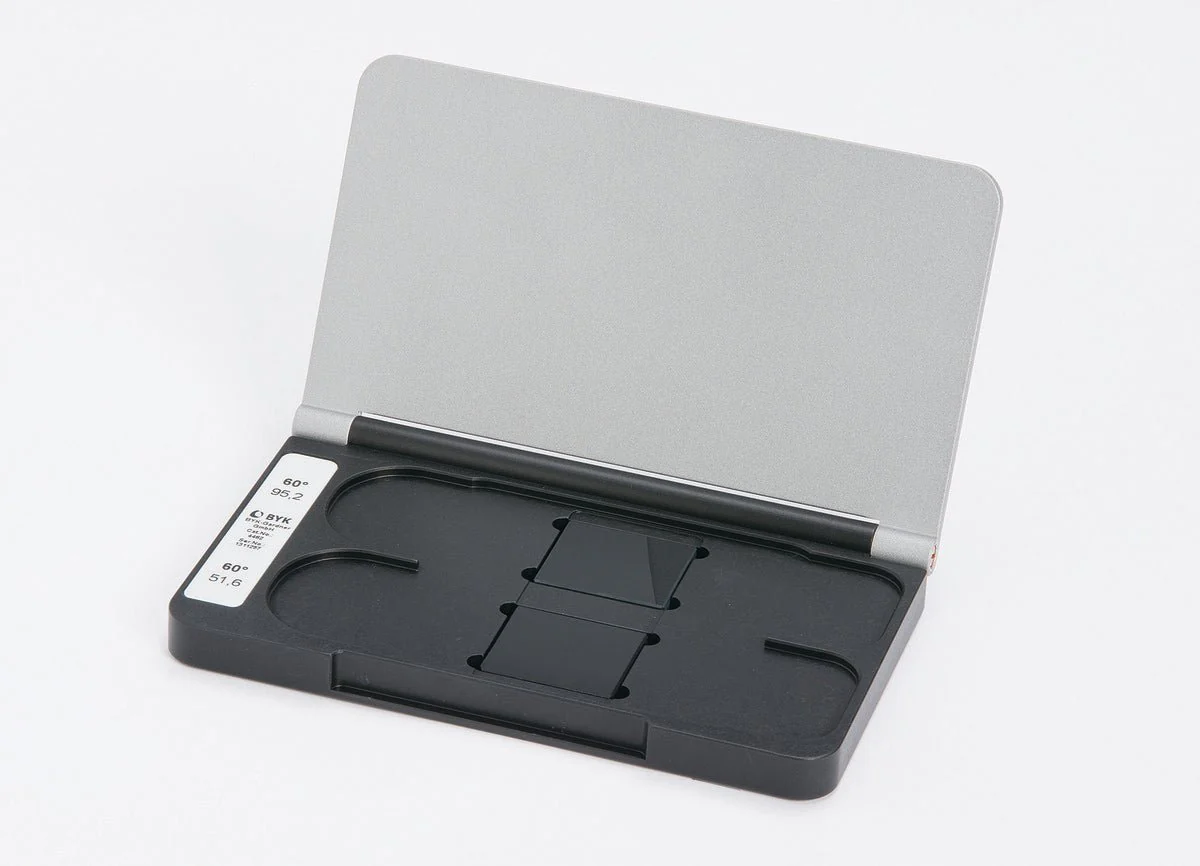

7. Traceable certificate
8. Manual
9. Carrying case

Gloss Meter Micro-Gloss 45° Technical Specifications:

Geometry	45°
Measurement Area / Performance	large area
Application	Ceramic, Plastic, Film
Measuring Area	9 x 13 mm
Measuring Area	0.35 x 0.5 in
Gloss Measurement
Measuring Range	0 - 180 GU
Repeatability	0 - 100 GU:  ± 0.2 GU 100 - 2000 GU:  ± 0.2 %
Reproducibility	0 - 100 GU:  ± 0.5 GU 100 - 2000 GU:  ± 0.5 %
Spectral sensitivity	CIE standard observer for illuminant CIE-C
General
Measuring time	0.5 seconds/geometry
Memory	999 readings with date and time
Interface	USB
Languages	English French German Italian Spanish
Power supply	one 1.5V AA Alkaline Battery, or via USB port
Battery Capacity	4,000 readings
Weight	0.4 kg
Weight	0.9 lb
Operating temperature	15 - 40 °C
Operating temperature	60 - 104 °F
Relative humidity	up to 85 %, non-condensing
Dimensions: L x W x H	15.5 x 4.8 x 7.3 cm
Dimensions: L x W x H	6.1 x 1.9 x 2.9 in
