Gloss Meter Micro-Gloss 60° XS-S

Gloss Meter Micro-Gloss 60° XS-S

Single Angle Gloss Meter

Gloss meter 60° high precision for mat finish & small samples

Micro-Gloss 60° XS-S: Precision Gloss Measurement for Demanding Applications

When gloss measurement is required on small components or challenging low-gloss surfaces, the Gloss Meter Micro-Gloss 60° XS-S sets the industry standard. This device leverages advanced micro-gloss technology to deliver definitive results where precision is paramount. It combines a highly intuitive user interface with intelligent functionality, making the entire process efficient and straightforward.

The engineering of the Micro-Gloss 60° XS-S ensures excellent thermal stability and superior inter-instrument agreement, providing the reliable data necessary to maintain confidence in your quality assurance program.

Key Features of the Micro-Gloss 60° XS-S:

• Advanced Measurement Intelligence: Features smart capabilities and streamlined data transfer for seamless integration into your workflow.

• Superior Consistency: Guarantees trustworthy data through outstanding consistency between measurements and across different units.

• Reliable Accuracy: An integrated self-diagnostic system actively monitors the device's status to ensure continuous accuracy.

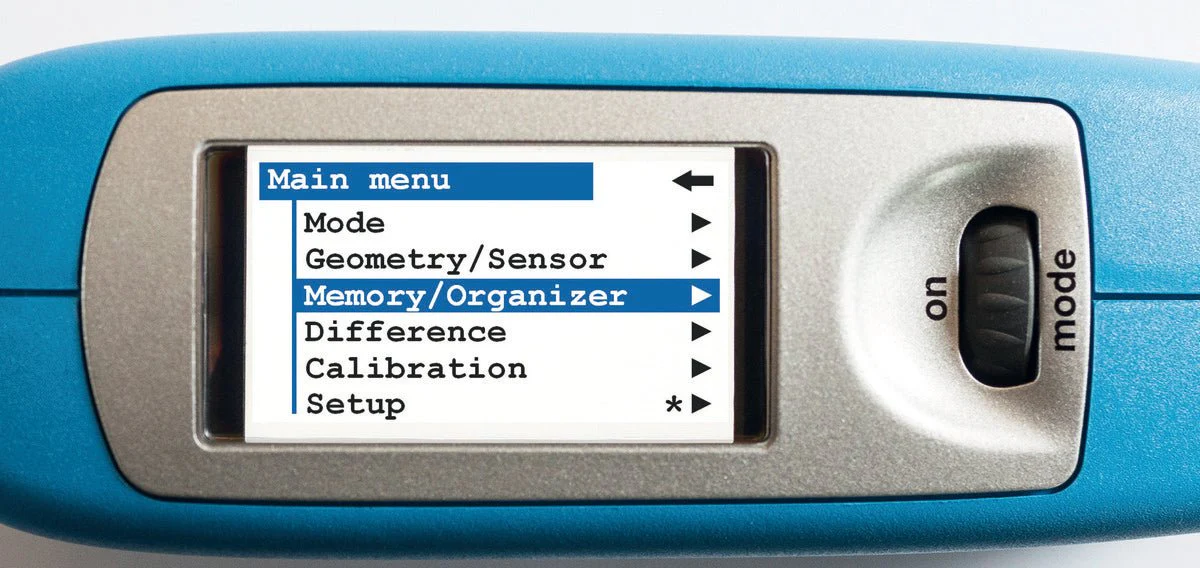

• Clear, Intuitive Display: Equipped with a brilliant, high-contrast color screen that makes operation and reading results simple.

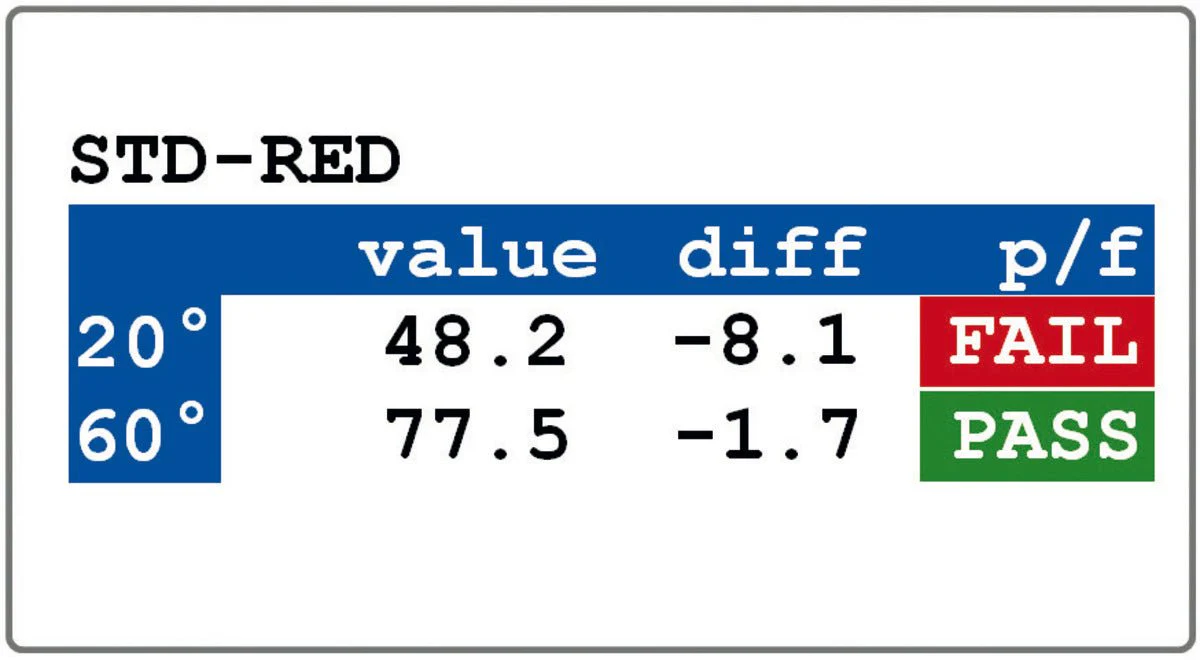

• Built-in QC Functions: Includes a full suite of tools like statistical analysis, Pass/Fail criteria, and onboard memory for thorough quality checks.

• Uniformity Scanning: Offers a continuous measurement mode to quickly evaluate gloss consistency over larger areas.

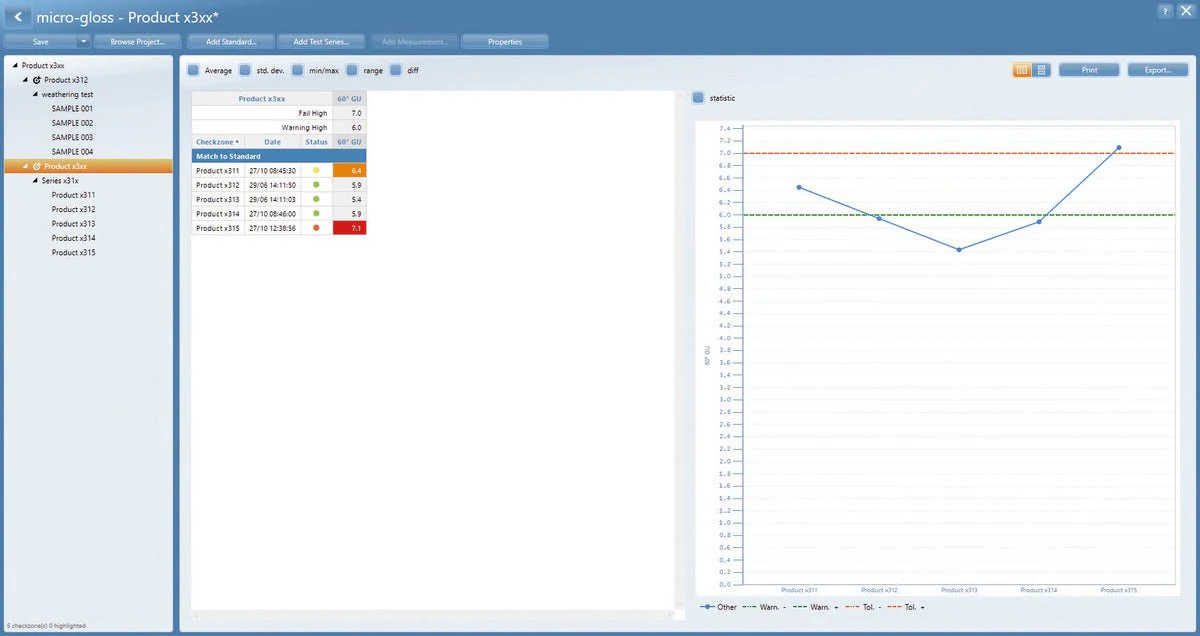

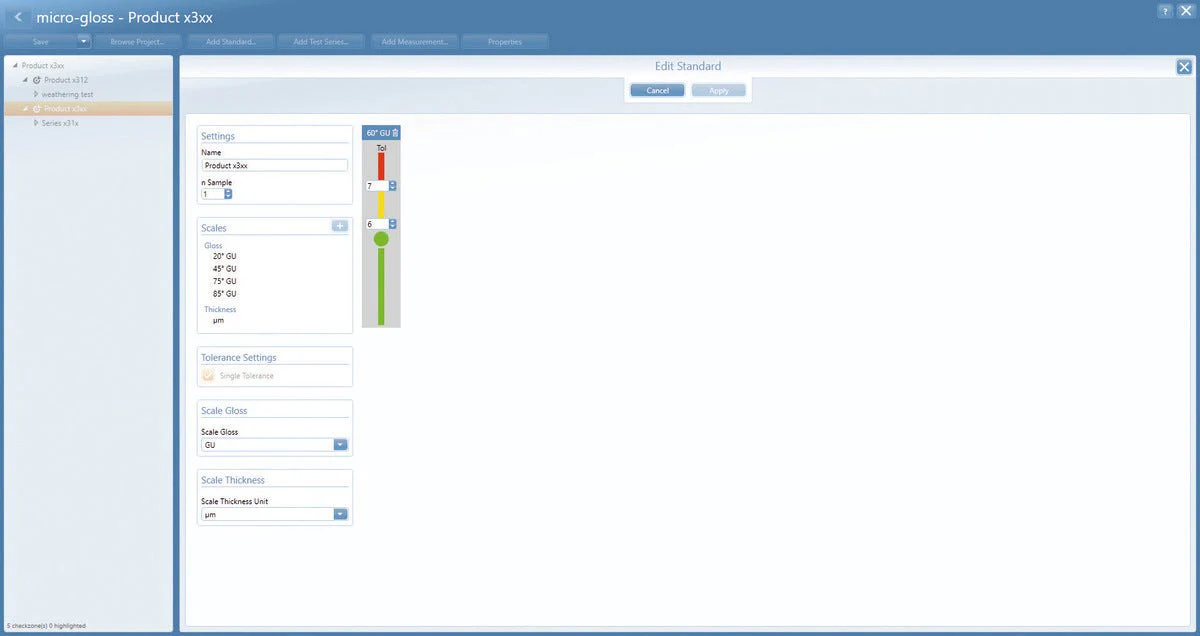

• Professional Reporting Software: Paired with smart-chart software to generate instant quality reports, complete with trend analysis and custom specifications.

Gloss Meter Micro-Gloss 60° XS-S Standard Package includes:

1. Glossmeter

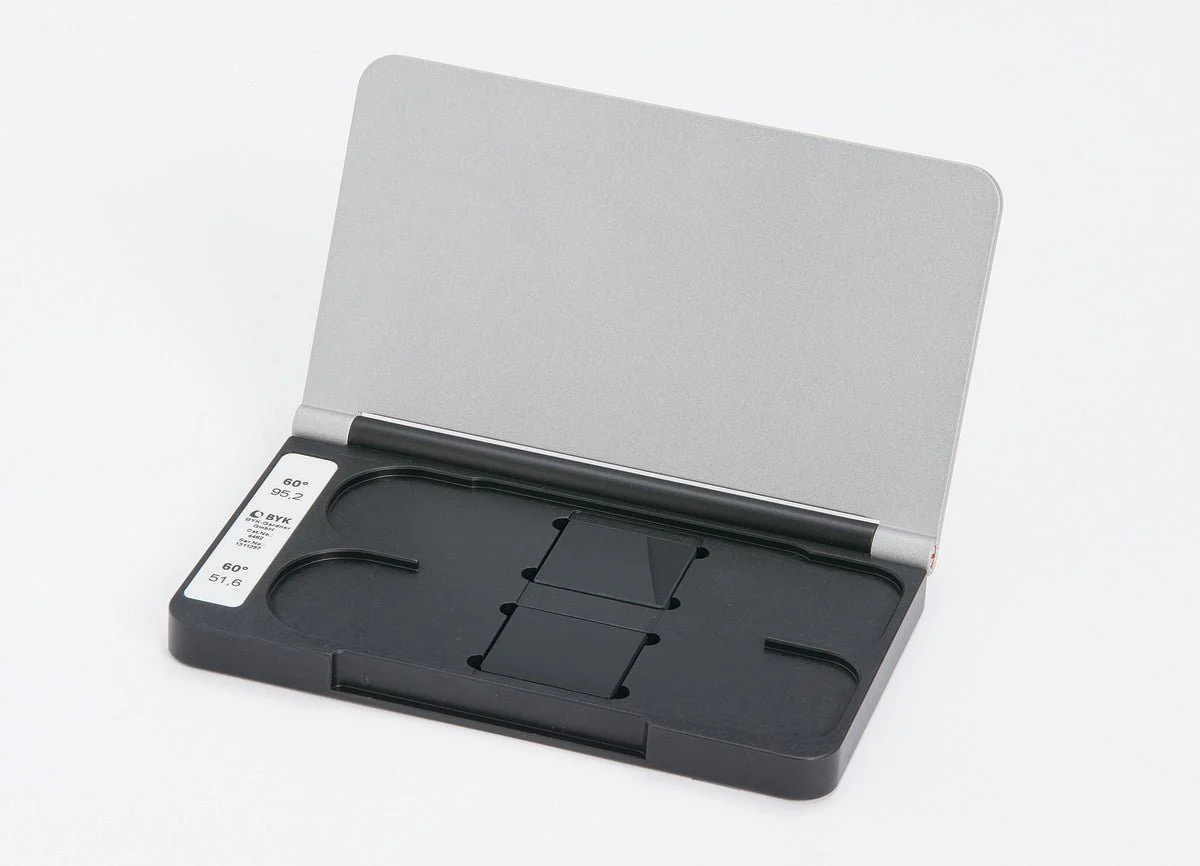

2. Calibration holder 60° XS (4559)
3. USB-cable micro-gloss (4405)
4. Software with 2 licenses for download:
5. smart-lab Gloss (4866) or smart-process Gloss (4867)
6. Battery
7. Traceable certificate
8. Manual
9. Carrying case

Gloss Meter Micro-Gloss 60° XS-S Technical Specifications:

Geometry	60°
Measurement Area / Performance	small area / high performance
Application	low to semi-gloss
Measuring Area	2 x 4 mm
Measuring Area	0.08 x 0.16 in
Gloss Measurement
Measuring Range	0 - 1000 GU
Repeatability	0 - 20 GU:  ± 0.1 GU 20 - 100 GU:  ± 0.2 GU 100 - 2000 GU:  ± 0.2 %
Repeatability Gloss 0-10	± 0.1 GU
Repeatability Gloss 10-100	± 0.2 GU
Reproducibility	0 - 20 GU:  ± 0.2 GU 20 - 100 GU:  ± 0.5 GU 100 - 2000 GU:  ± 0.5 %
Reproducibility Gloss 0-10	± 0.2 GU
Reproducibility Gloss 10-100	± 0.5 GU
Spectral sensitivity	CIE standard observer for illuminant CIE-C
General
Measuring time	0.5 seconds/geometry
Memory	999 readings with date and time
Interface	USB
Languages	English French German Italian Spanish
Power supply	one 1.5V AA Alkaline Battery, or via USB port
Battery Capacity	4,000 readings
Weight	0.4 kg
Weight	0.9 lb
Operating temperature	15 - 40 °C
Operating temperature	60 - 104 °F
Relative humidity	up to 85 %, non-condensing
Dimensions: L x W x H	15.5 x 4.8 x 7.3 cm
Dimensions: L x W x H	6.1 x 1.9 x 2.9 in
