Gloss Meter Micro-Gloss 60° S Robotic

Gloss Meter Micro-Gloss 60° S Robotic

For automated production lines requiring the highest precision in gloss measurement, particularly for matte finishes, the Gloss Meter Micro-Gloss 60° S Robotic is the definitive solution. This single-angle 60° gloss meter is specifically engineered for automated quality control, offering improved repeatability and inter-instrument agreement for the challenging low gloss range (below 20 gloss units). With a measuring area of 9 x 15 mm, it delivers precise and consistent data.

Experience seamless integration into your automated processes with the Micro-Gloss 60° S Robotic. Designed to ensure uniform and consistent product quality, this system provides a stable and unerring focus on appearance control. The micro-gloss robotic system integrates effortlessly into measurement setups, functioning like an XY-table for precise and repeatable positioning, which guarantees reliable and trustworthy results every time.

Key Features of the Micro-Gloss 60° S Robotic:

• Optimized for Automation: Streamlines appearance control in automated environments to ensure uniform and consistent quality.

• Intelligent Communication: Enables efficient communication and data transfer for intelligent gloss measurement within a production line.

• Superior Precision: Delivers unmatched repeatability and inter-instrument agreement, guaranteeing the highest precision in every reading.

• Smart Auto-Diagnosis: Constantly monitors its own accuracy and reliability, ensuring your measurements are always dependable.

• User-Friendly Interface: Features a brilliant color display for effortless reading and intuitive operation.

• Comprehensive QC Tools: Includes Statistics, Pass/Fail, and Memory functions, making it ideal for quality control and on-site checks.

• Uniformity Analysis: A continuous mode allows for the evaluation of gloss uniformity across large surface areas.

Standard Package Includes:

• Glossmeter with mounting plate

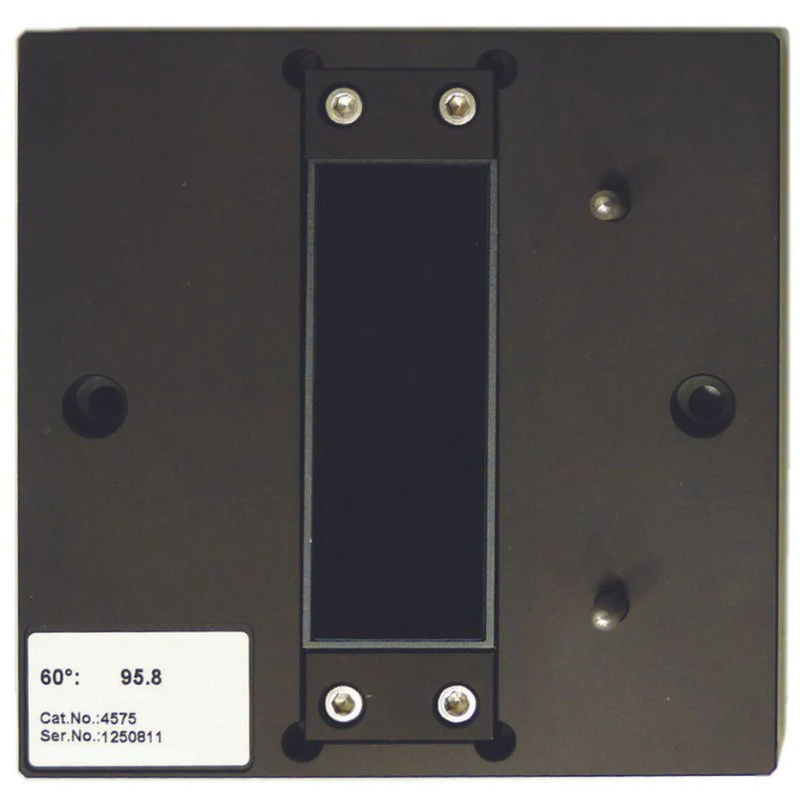

• Calibration tile 60° robotic (4575)

• USB-cable micro-gloss (4405)

• Battery

• Traceable certificate

• Manual

• Carrying case

Gloss Meter Micro-Gloss 60° S Robotic Technical Specifications:

Geometry	60°
Performance	high performance
Application	semi gloss
Measuring Area	9 x 15 mm
Measuring Area	0.35 x 0.6 in
Distance to Surface	contact
Gloss Measurement
Measuring Range	0 - 1000 GU
Repeatability	0 - 20 GU:  ± 0.1 GU 20 - 100 GU:  ± 0.2 GU 100 - 2000 GU:  ± 0.2 %
Reproducibility	0 - 20 GU:  ± 0.2 GU 20 - 100 GU:  ± 0.5 GU 100 - 2000 GU:  ± 0.5 %
Spectral sensitivity	CIE standard observer for illuminant CIE-C
General
Measuring time	0.5 seconds/geometry
Memory	999 readings with date and time
Interface	USB
Languages	English French German Italian Spanish
Power supply	one 1.5V AA Alkaline Battery, or via USB-port
Battery Capacity	4,000 readings
Weight	0.4 kg
Weight	0.9 lb
Operating temperature	15 - 40 °C
Operating temperature	60 - 104 °F
Relative humidity	up to 85 %, non-condensing
Dimensions: L x W x H	15.5 x 4.8 x 7.3 cm
Dimensions: L x W x H	6.1 x 1.9 x 2.9 in
