Gloss Meter Micro-Gloss 75°

Gloss Meter Micro-Gloss 75°

Single Angle Gloss Meter

Gloss meter for paper and vinyl siding

Micro-Gloss 75°: The Industry Benchmark in Gloss Measurement

The Gloss Meter Micro-Gloss 75° is the trusted industry benchmark for measuring gloss, setting the gold standard with its advanced micro-gloss technology. Specifically designed for applications requiring a 75° geometry, such as in the paper, cardboard, and vinyl industries, this instrument delivers unmatched performance.

Its user-friendly interface and intelligent features make gloss measurement with the Micro-Gloss 75° a breeze, ensuring exceptional performance in temperature control and inter-instrument consistency, which instills confidence in your quality control processes.

Key Features of the Gloss Meter Micro-Gloss 75°:

• Intelligent Gloss Measurement: Offers advanced capabilities with seamless communication for efficient data management.

• Unmatched Precision: Delivers dependable results through exceptional repeatability and inter-instrument agreement.

• Smart Auto-Diagnosis: A self-monitoring system ensures the meter provides consistently accurate readings.

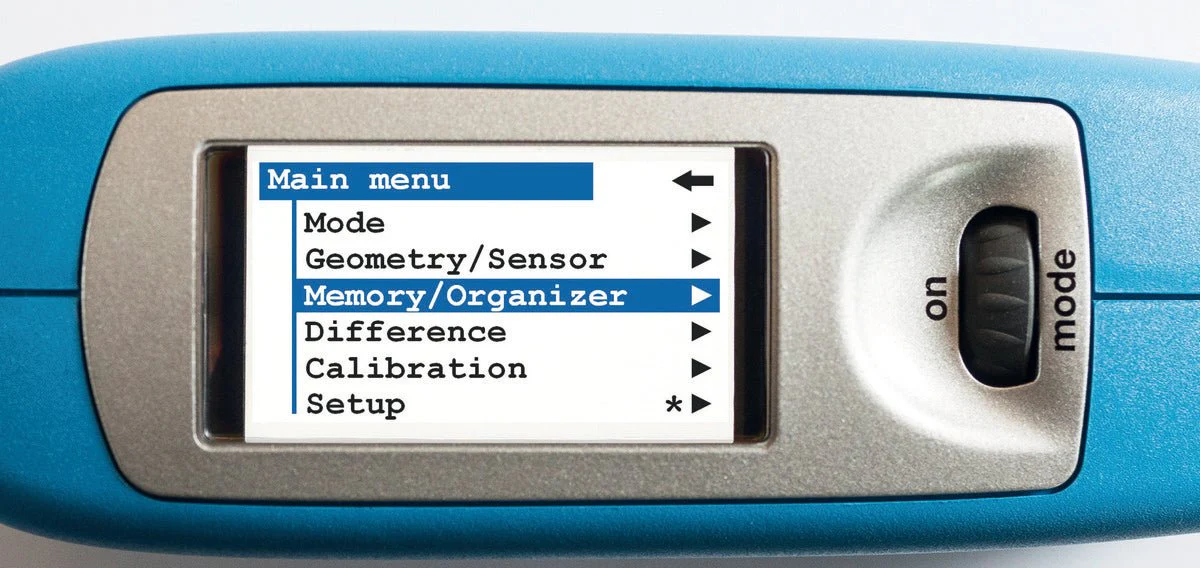

• Intuitive Interface: Features a vivid color display for effortless reading and simple operation.

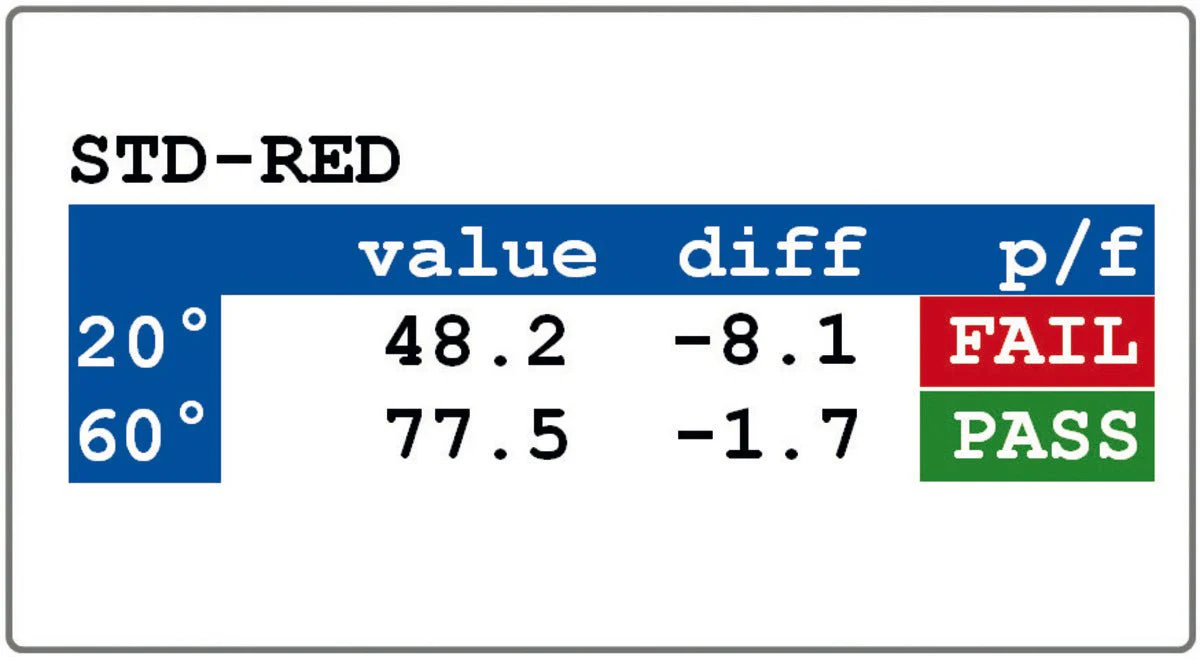

• Comprehensive QC Tools: Comes equipped with Statistics, Pass/Fail, and Memory functions, ideal for rigorous quality control and on-site checks.

• Uniformity Analysis: A continuous mode allows for the assessment of gloss uniformity across extensive surface areas.

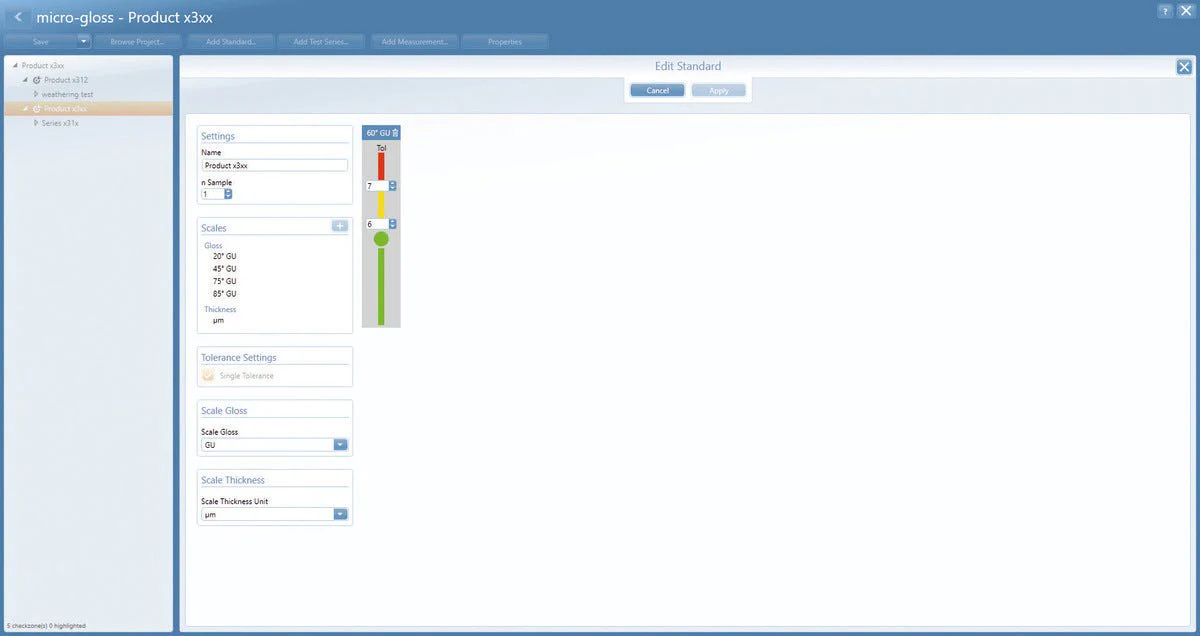

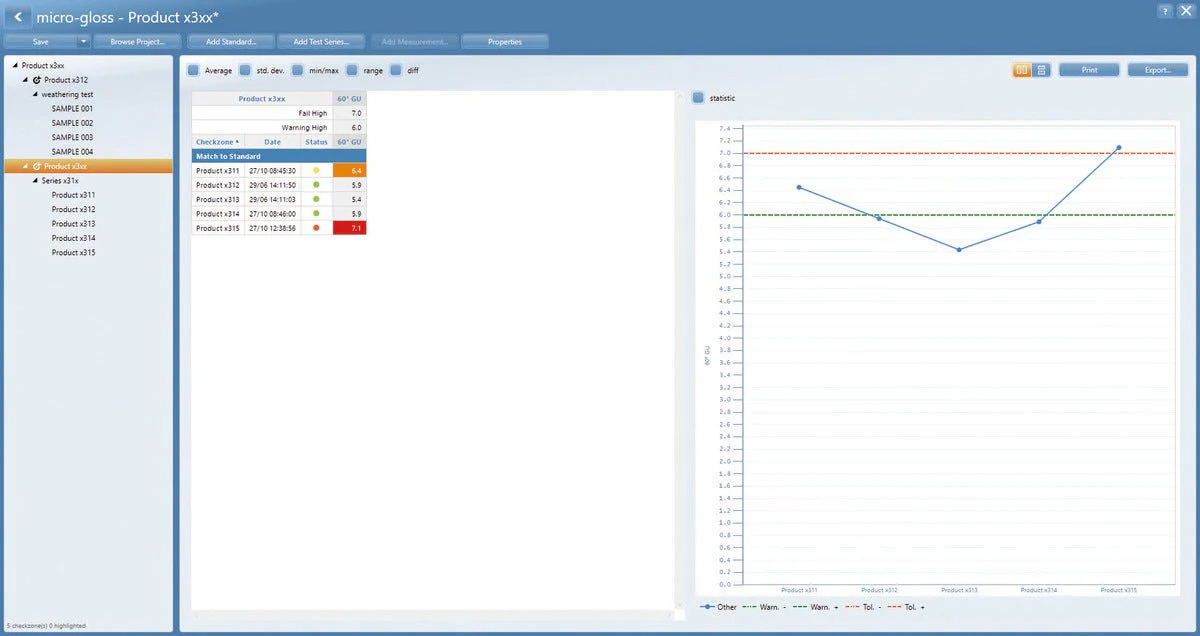

• Professional Reporting: Utilize the smart-chart software to generate instant QC reports, complete with trend graphs and customizable Pass/Fail limits.

Gloss Meter Micro-Gloss 75° Standard Package includes:

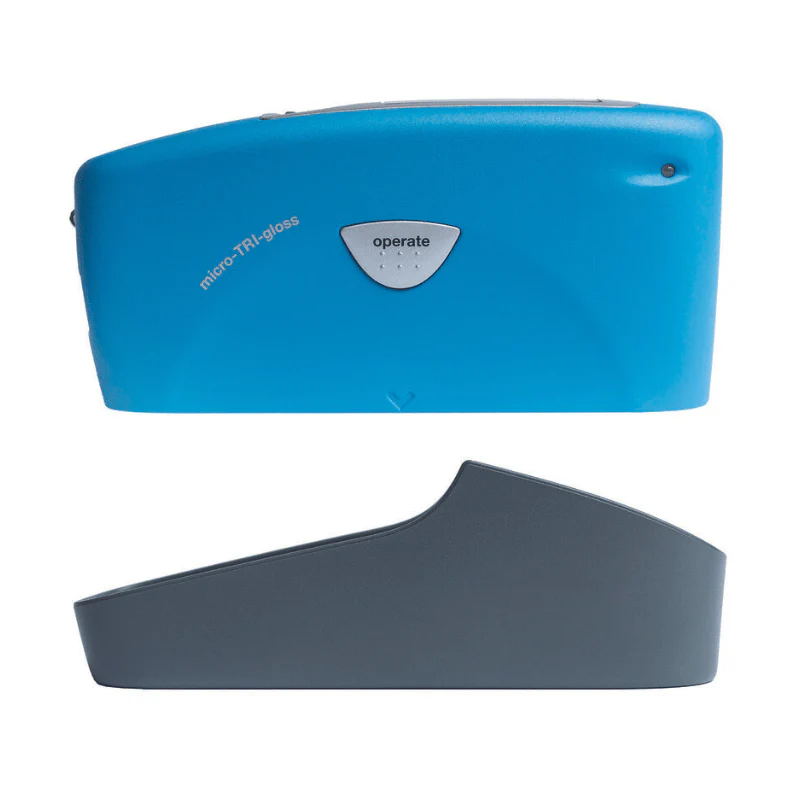

1. Glossmeter

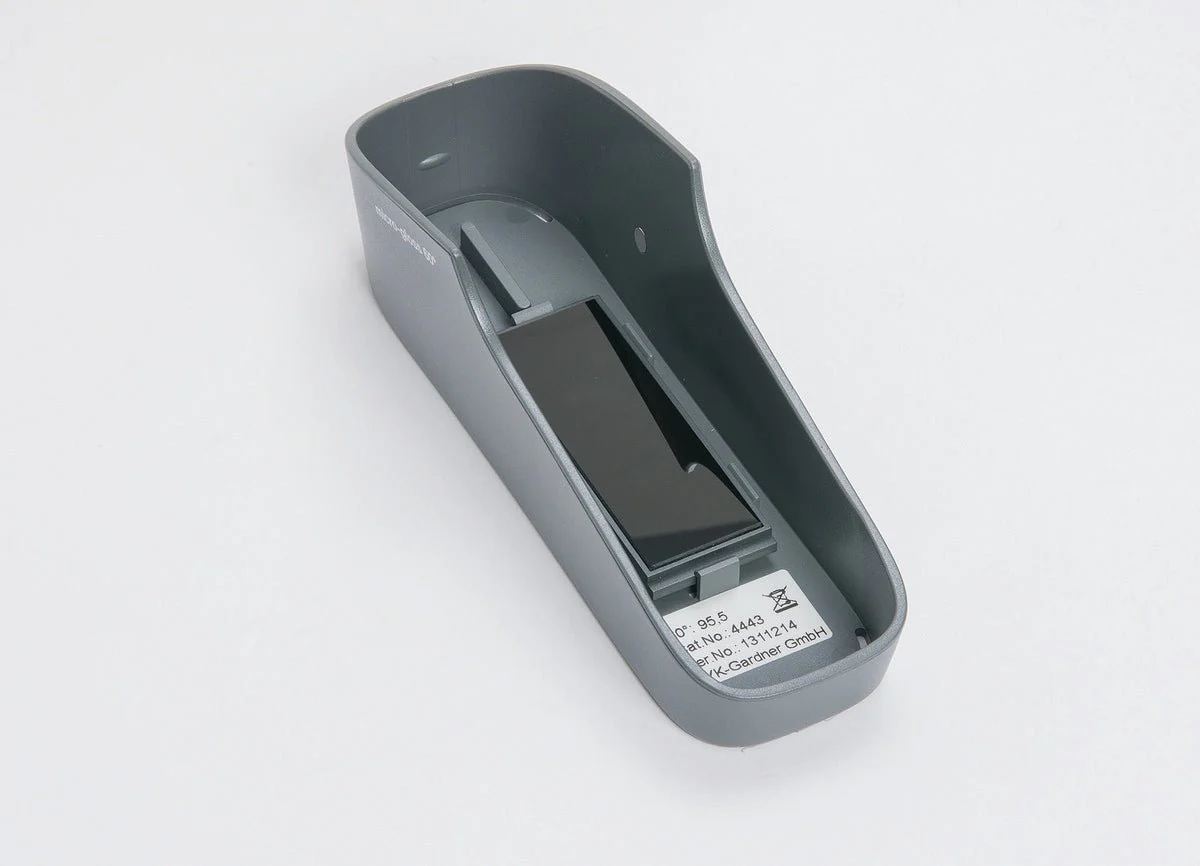

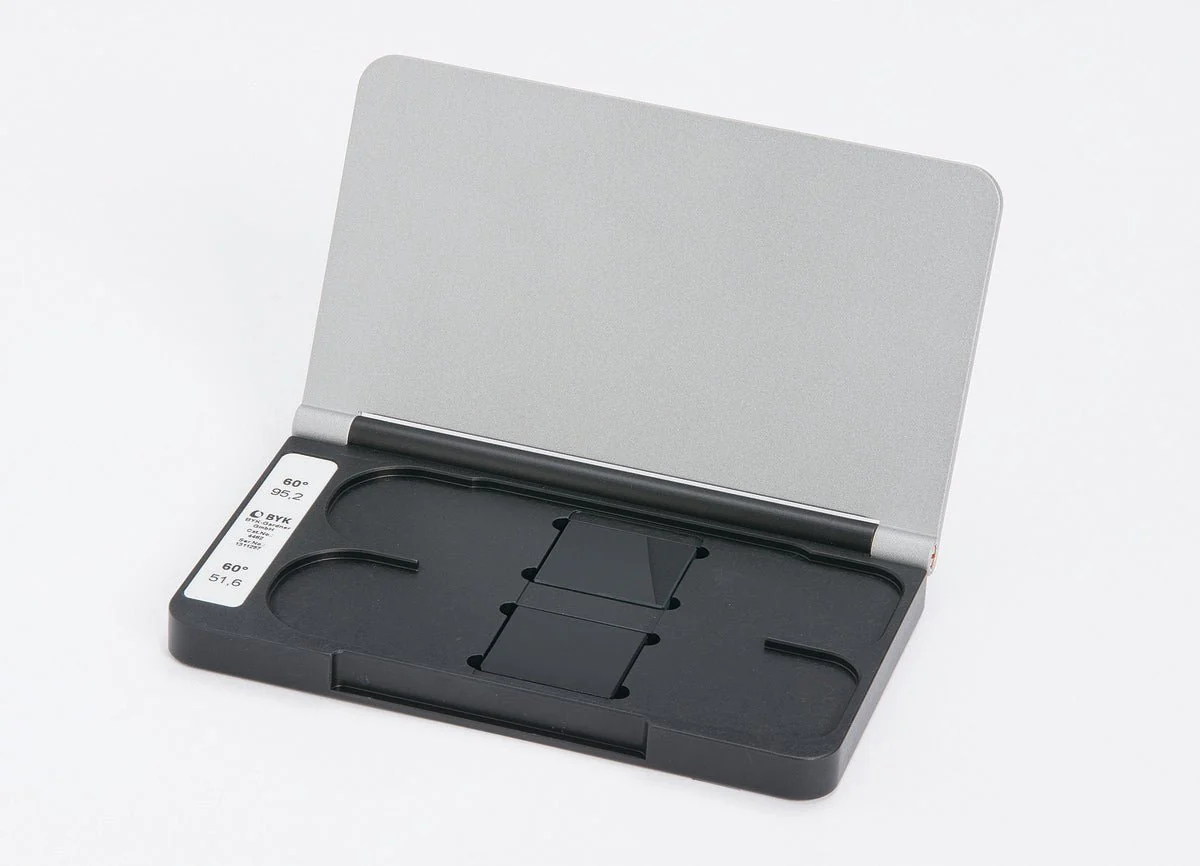

2. Calibration holder 60° XS (4559)
3. USB-cable micro-gloss (4405)
4. Software with 2 licenses for download:
5. smart-lab Gloss (4866) or smart-process Gloss (4867)
6. Battery
7. Traceable certificate
8. Manual
9. Carrying case

Gloss Meter Micro-Gloss 75° Technical Specifications:

Geometry	75°
Measurement Area / Performance	large area
Application	Paper, Vinyl Siding
Measuring Area	7 x 24 mm
Measuring Area	0.3 x 0.95 in
Gloss Measurement
Measuring Range	0 - 140 GU
Repeatability	0 - 100 GU:  ± 0.2 GU 100 - 2000 GU:  ± 0.2 %
Reproducibility	0 - 100 GU:  ± 0.5 GU 100 - 2000 GU:  ± 0.5 %
Spectral sensitivity	CIE standard observer for illuminant CIE-C
General
Measuring time	0.5 seconds/geometry
Memory	999 readings with date and time
Interface	USB
Languages	English French German Italian Spanish
Power supply	one 1.5V AA Alkaline Battery, or via USB port
Battery Capacity	4,000 readings
Weight	0.4 kg
Weight	0.9 lb
Operating temperature	15 - 40 °C
Operating temperature	60 - 104 °F
Relative humidity	up to 85 %, non-condensing
Dimensions: L x W x H	15.5 x 4.8 x 7.3 cm
Dimensions: L x W x H	6.1 x 1.9 x 2.9 in
