Gloss Meter for Automation - Micro-Gloss 60° robotic
Gloss meter 60° for automated measurement
- Single angle 60°
- For any material: paint, plastic, or even metals
- Measuring area 9 x 15 mm
Achieve seamless automation in your gloss measurement processes with the state-of-the-art Micro-Gloss 60° robotic. This system is engineered to provide uniform and consistent quality control through a stable and reliable operational process, maintaining a precise focus on appearance control. The Micro-Gloss 60° robotic is designed for effortless integration into automated measurement setups, functioning similarly to an XY-table to deliver precise and repeatable positioning for dependable results on every measurement.
Key Features of the Micro-Gloss 60° Robotic:
-
Streamlined Automation for Appearance Control: Guarantees uniform and consistent quality by integrating directly into your automated production line.
-
Intelligent Gloss Measurement: Offers advanced capabilities with efficient communication for seamless data integration.
-
Unmatched Precision: Delivers exceptional repeatability and inter-instrument agreement, ensuring the highest level of precision in all readings.
-
Smart Auto-Diagnosis: Maintains constant accuracy and reliability through an intelligent self-monitoring system.
-
Intuitive User Interface: A user-friendly, brilliant color display allows for effortless reading and simple operation.
-
Comprehensive QC Features: Comes equipped with Statistics, Pass/Fail, and Memory functions, making it perfectly suited for both quality control and on-site checks.
-
Surface Uniformity Analysis: A dedicated continuous mode enables the thorough evaluation of gloss uniformity across large surface areas.
Gloss Meter for Automation - Micro-Gloss 60° robotic Standard Package includes:
- Glossmeter with mounting plate

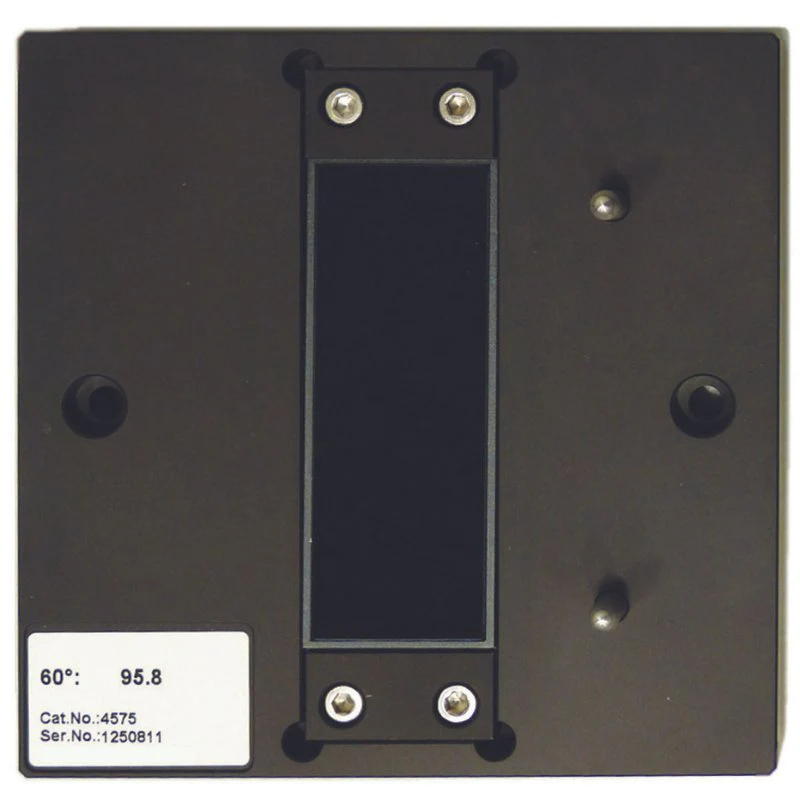

- Calibration tile 60° robotic (4575)
- USB-cable micro-gloss (4405)
- Battery
- Traceable certificate
- Manual
- Carrying case
Gloss Meter for Automation - Micro-Gloss 60° robotic Technical Specifications:
| Geometry | 60° |
| Performance | - |
| Application | semi gloss |
| Measuring Area | 9 x 15 mm |
| Measuring Area | 0.35 x 0.6 in |
| Distance to Surface | contact |
| Gloss Measurement | |
|
Measuring Range |
0 - 1000 GU |
| Repeatability |
0 - 100 GU: ± 0.2 GU |
| Reproducibility |
0 - 100 GU: ± 0.5 GU |
| Spectral sensitivity | CIE standard observer for illuminant CIE-C |
| General | |
|
Measuring time |
0.5 seconds/geometry |
| Memory | 999 readings with date and time |
| Interface | USB |
| Languages | English French German Italian Spanish |
| Power supply | one 1.5V AA Alkaline Battery, or via USB-port |
| Battery Capacity | 4,000 readings |
| Weight | 0.4 kg |
| Weight | 0.9 lb |
| Operating temperature | 15 - 40 °C |
| Operating temperature | 60 - 104 °F |
| Relative humidity | up to 85 %, non-condensing |
| Dimensions: L x W x H | 15.5 x 4.8 x 7.3 cm |
| Dimensions: L x W x H | 6.1 x 1.9 x 2.9 in |
Click Here to visit the product webpage
