Gloss Meter Micro-Gloss 60° S

Gloss Meter Micro-Gloss 60° S

Micro-Gloss 60° S: The Standard for Low-Gloss and Matte Finishes

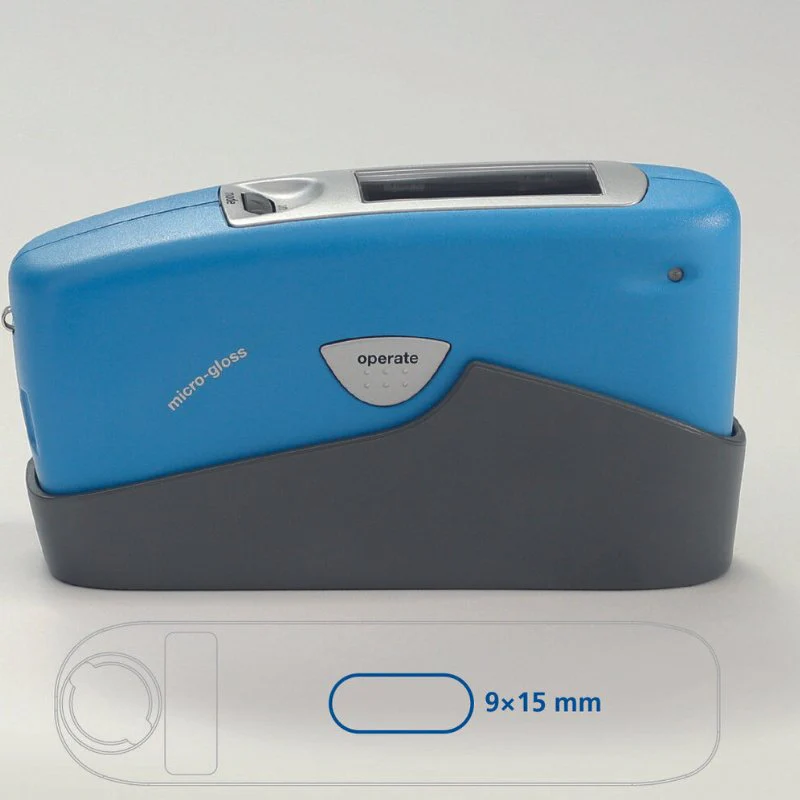

The Gloss Meter Micro-Gloss 60° S is the definitive industry benchmark for accurately measuring gloss, with a specialized focus on matte and low-gloss surfaces. Engineered with advanced micro-gloss technology, this single-angle 60° meter provides improved repeatability and superior inter-instrument agreement, especially in the critical low gloss range (below 20 gloss units). The Micro-Gloss 60° S is versatile enough to be used on any material—from paint, plastic, and leather to mirror-like metals—utilizing a 9 x 15 mm measuring area.

Its user-friendly interface and intelligent features make gloss measurement a breeze, ensuring exceptional performance and instilling absolute confidence in your quality control processes.

Key Features of the Micro-Gloss 60° S:

• Advanced Measurement Intelligence: Offers smart gloss analysis with efficient data communication for easy workflow integration.

• Superior Consistency for Low Gloss: The Gloss Meter Micro-Gloss 60° S delivers exceptional repeatability and agreement between units, a crucial feature for matte surfaces.

• Guaranteed Accuracy: An intelligent auto-diagnosis system continuously monitors the instrument’s calibration and status to ensure reliable results.

• Intuitive High-Contrast Display: Features a brilliant color screen that makes operation simple and readings easy to see in any lighting.

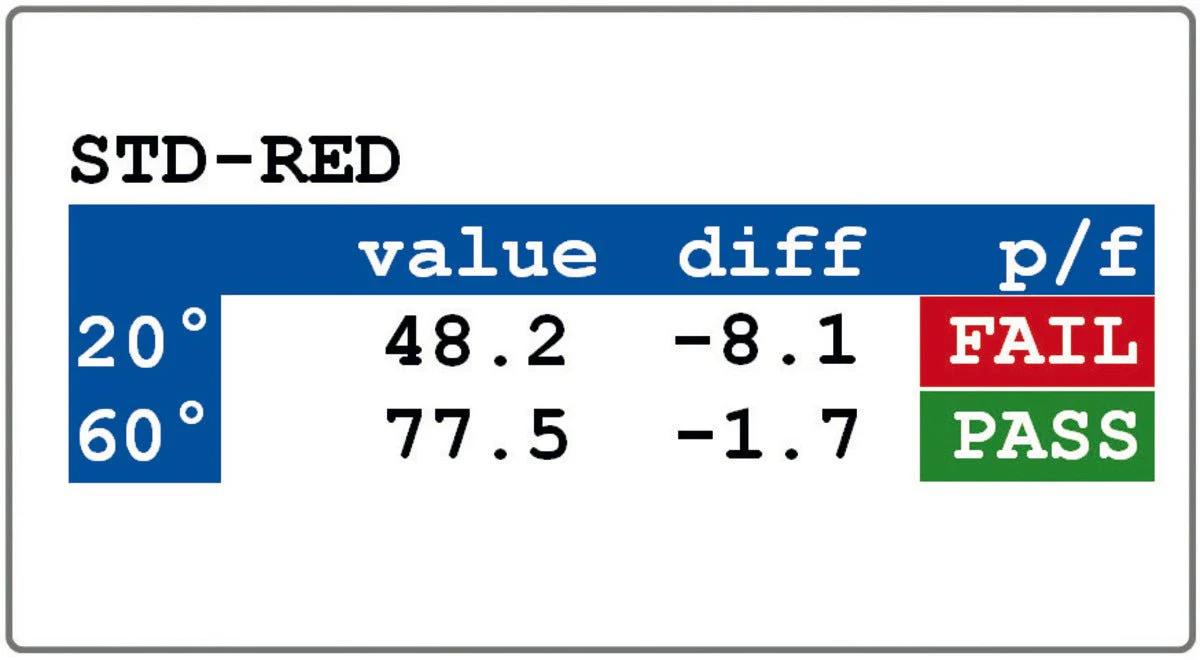

• Built-in QC Tools: Equipped with a full suite of functions including statistical analysis, Pass/Fail limits, and onboard memory for thorough quality assurance.

• Uniformity Scanning: A dedicated continuous mode allows for quick assessment of gloss consistency over large surface areas.

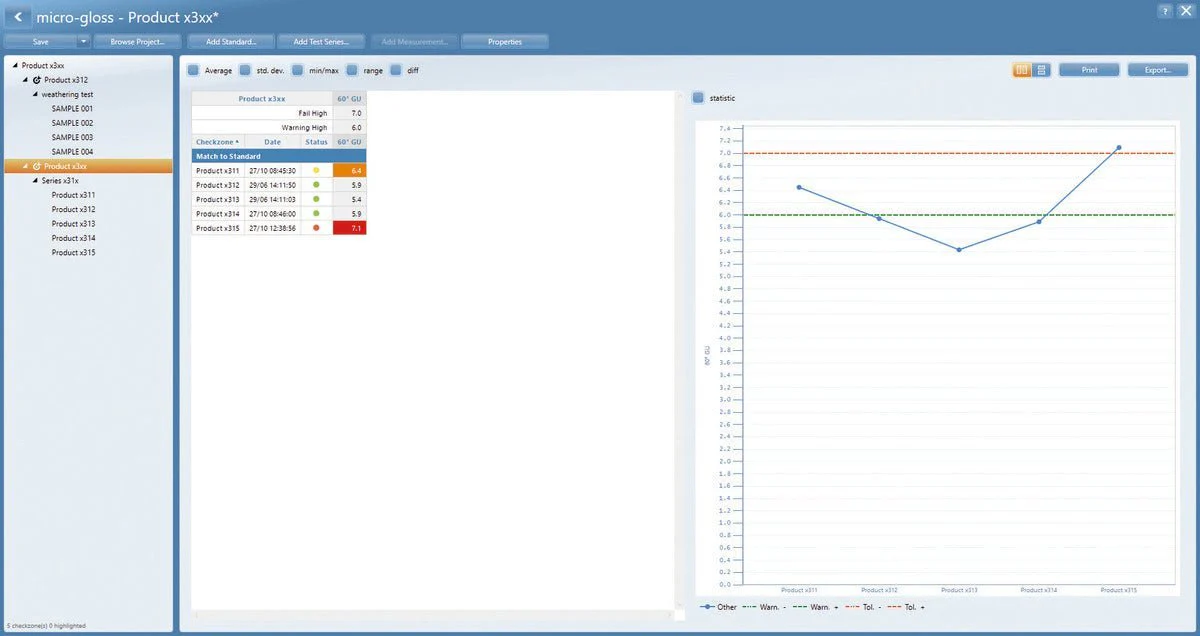

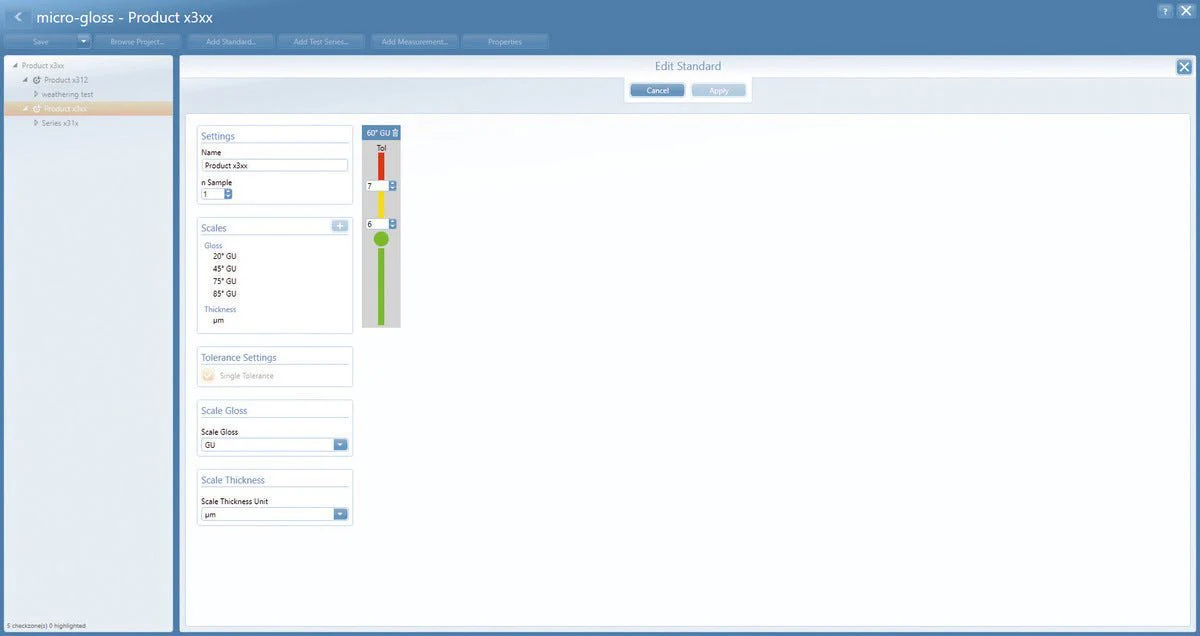

• Professional Reporting: Comes with smart-chart software to instantly generate detailed QC reports, complete with trend analysis and user-defined specifications.

Gloss Meter Micro-Gloss 60° S Standard Package includes:

1. Glossmeter

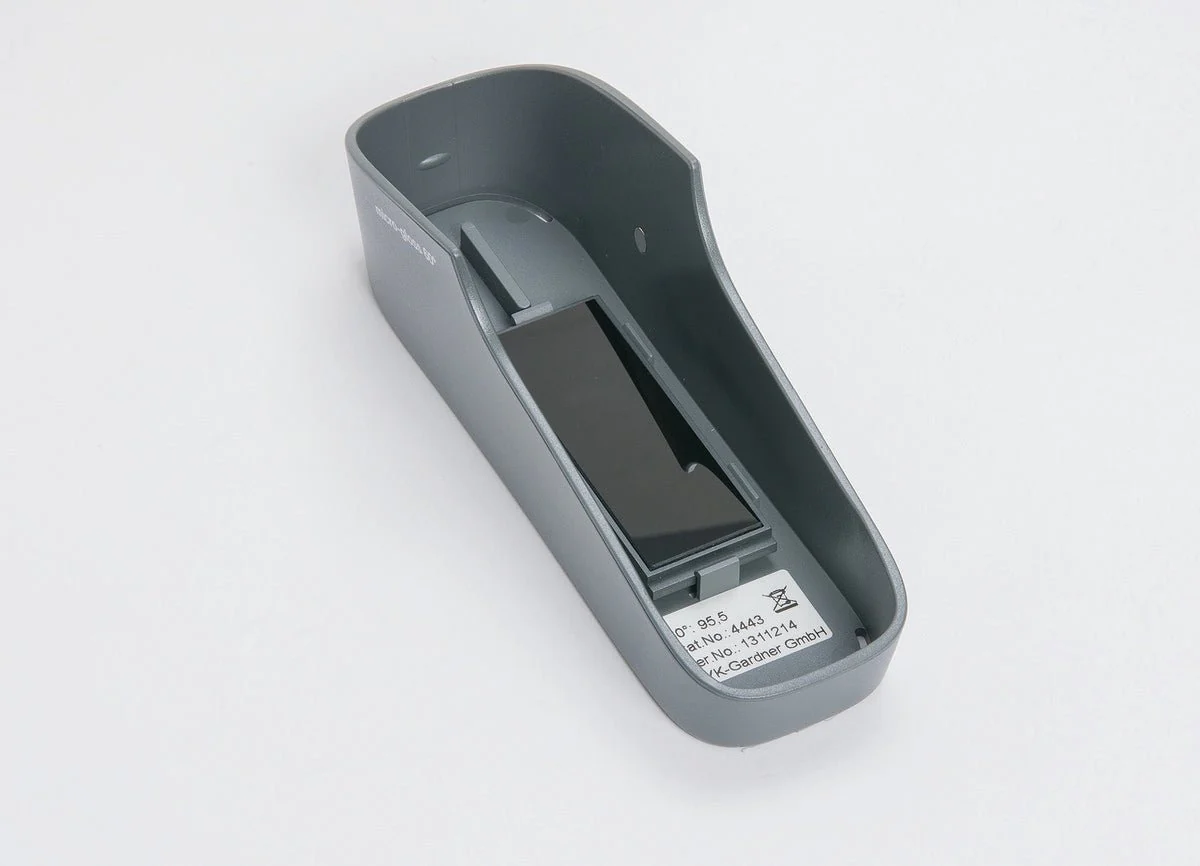

2. Calibration holder 60° (4443)
3. USB-cable micro-gloss (4405)
4. Software with 2 licenses for download:
5. smart-lab Gloss (4866) or smart-process Gloss (4867)
6. Battery
7. Traceable certificate
8. Manual
9. Carrying case

Gloss Meter Micro-Gloss 60° S Technical Specifications:

Geometry	60°
Measurement Area / Performance	large area / high performance
Application	low to semi gloss
Measuring Area	9 x 15 mm
Measuring Area	0.35 x 0.6 in
Gloss Measurement
Measuring Range	0 - 1000 GU
Repeatability	0 - 20 GU:  ± 0.1 GU 20 - 100 GU:  ± 0.2 GU 100 - 2000 GU:  ± 0.2 %
Reproducibility	0 - 20 GU:  ± 0.2 GU 20 - 100 GU:  ± 0.5 GU 100 - 2000 GU:  ± 0.5 %
Spectral sensitivity	CIE standard observer for illuminant CIE-C
General
Measuring time	0.5 seconds/geometry
Memory	999 readings with date and time
Interface	USB
Languages	English French German Italian Spanish
Power supply	one 1.5V AA Alkaline Battery, or via USB port
Battery Capacity	4,000 readings
Weight	0.4 kg
Weight	0.9 lb
Operating temperature	15 - 40 °C
Operating temperature	60 - 104 °F
Relative humidity	up to 85 %, non-condensing
Dimensions: L x W x H	15.5 x 4.8 x 7.3 cm
Dimensions: L x W x H	6.1 x 1.9 x 2.9 in
