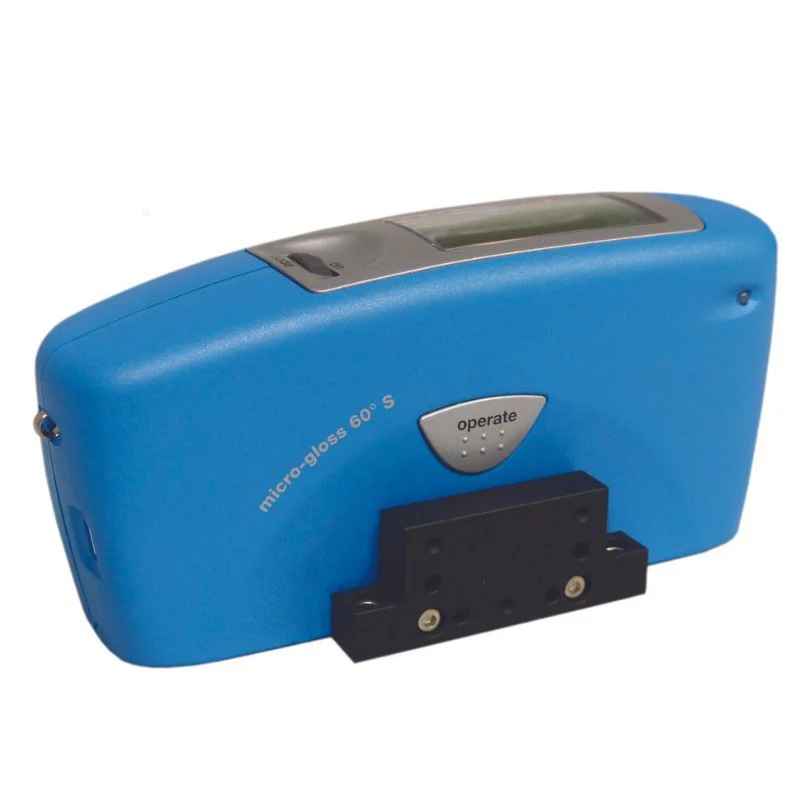

Gloss Meter Micro-Gloss 60° Robotic, Non Contact 3mm

Gloss Meter Micro-Gloss 60° Robotic, Non-Contact 3mm

Gloss meter 60° for automated measurement

• Single angle 60°
• Non-contact measurement with 3mm distance
• For any material: paint, plastic, or even metals
• Measuring area 9 x 15 mm

Experience seamless gloss measurement automation with our cutting-edge Gloss Meter for Automation. Achieve uniform and consistent quality through its stable running process, maintaining an unerring focus on appearance control. The micro-gloss robotic system integrates effortlessly into measurement setups, functioning akin to an XY-table for precise and repeatable positioning, ensuring reliable results every time.

Gloss Meter Micro-Gloss 60° Robotic, Non-Contact 3mm Key Features:

• Streamlined automation for appearance control, ensuring uniform and consistent quality
• Intelligent gloss measurement capabilities with efficient communication
• Unmatched repeatability and inter-instrument agreement, guaranteeing precision in readings
• Smart auto-diagnosis for constant accuracy and reliability
• User-friendly brilliant color display for effortless reading and intuitive use
• Comprehensive features: Statistics, Pass/Fail, and Memory, ideal for quality control and on-site checks
• Continuous mode to evaluate uniformity across extensive surface areas

Gloss Meter Micro-Gloss 60° Robotic, Non-Contact 3mm Standard Package includes:

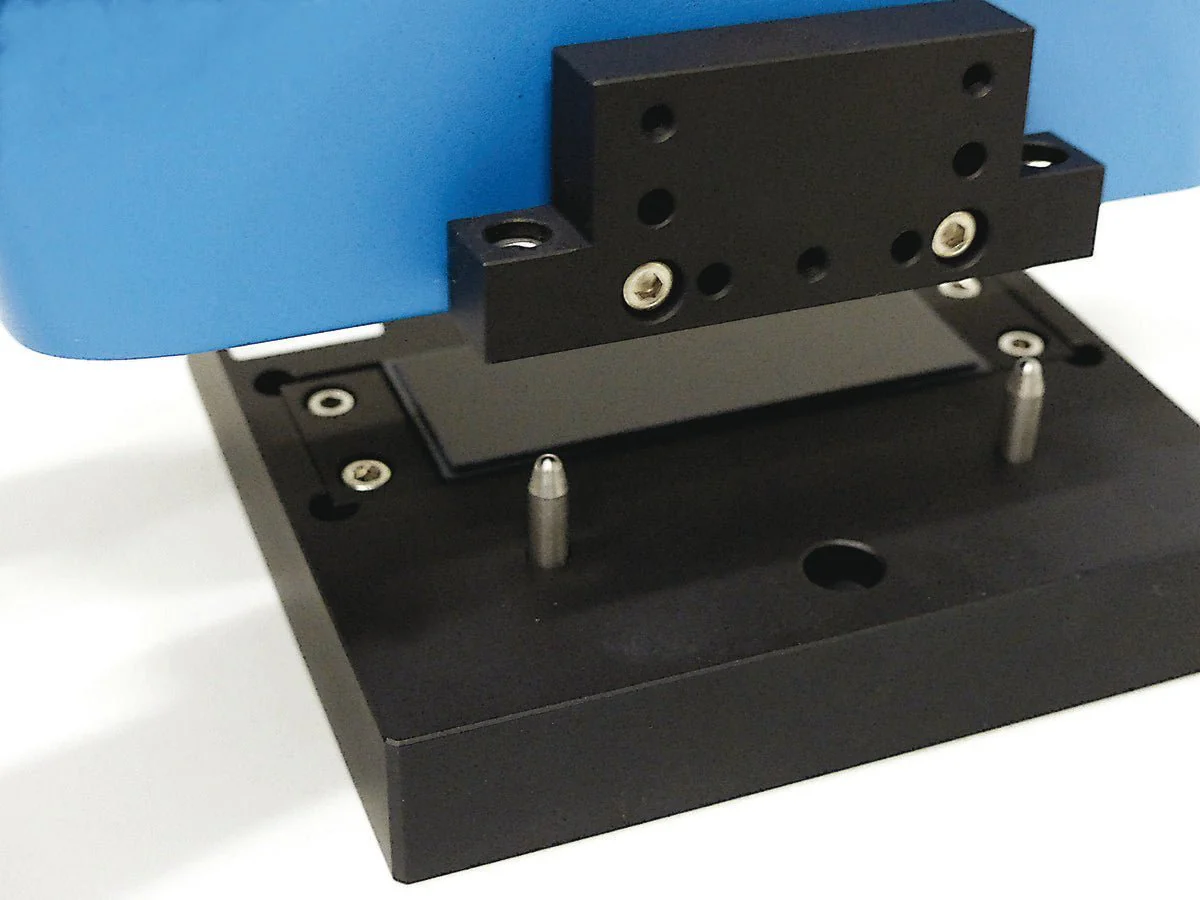

1. Glossmeter with mounting plate

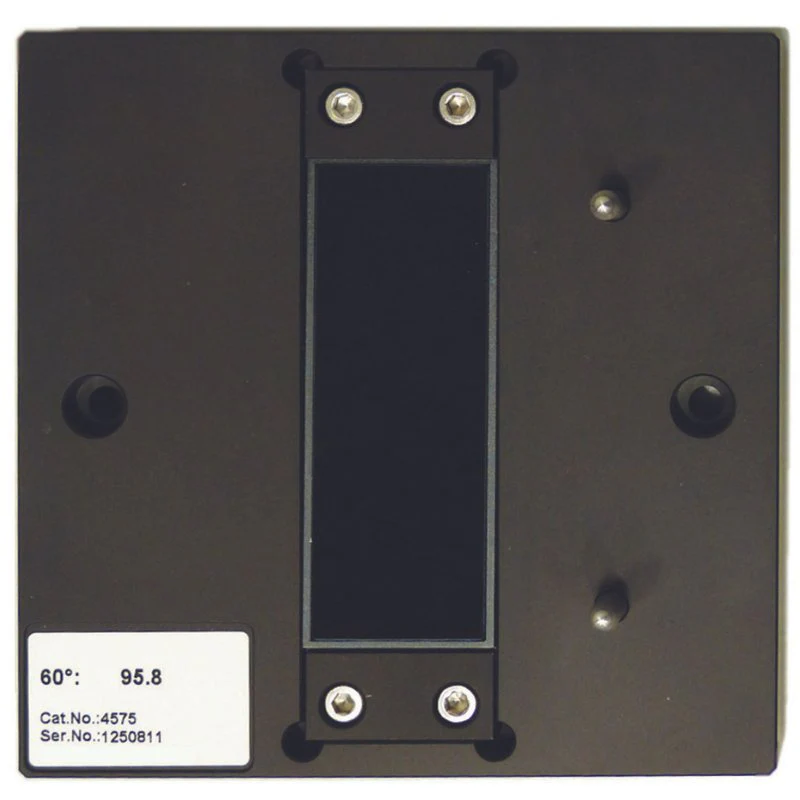

2. Calibration tile 60° robotic, non-contact 3mm (4602)
3. USB-cable micro-gloss (4405)
4. Battery
5. Traceable certificate
6. Manual
7. Carrying case

Gloss Meter Micro-Gloss 60° Robotic, Non-Contact 3mm Technical Specifications:

Geometry	60°
Performance	-
Application	semi-gloss
Measuring Area	9 x 15 mm
Measuring Area	0.35 x 0.6 in
Distance to Surface	non-contact
Gloss Measurement
Measuring Range	0 - 1000 GU
Repeatability	0 - 100 GU:  ± 0.2 GU 100 - 2000 GU:  ± 0.2 %
Reproducibility	0 - 100 GU:  ± 0.5 GU 100 - 2000 GU:  ± 0.5 %
Spectral sensitivity	CIE standard observer for illuminant CIE-C
General
Measuring time	0.5 seconds/geometry
Memory	999 readings with date and time
Interface	USB
Languages	English French German Italian Spanish
Power supply	one 1.5V AA Alkaline Battery, or via USB port
Battery Capacity	4,000 readings
Weight	0.4 kg
Weight	0.9 lb
Operating temperature	15 - 40 °C
Operating temperature	60 - 104 °F
Relative humidity	up to 85 %, non-condensing
Dimensions: L x W x H	15.5 x 4.8 x 7.3 cm
Dimensions: L x W x H	6.1 x 1.9 x 2.9 in
