Gloss Meter Micro-TRI-Gloss 20°, 60°, 85°

Gloss Meter Micro-TRI-Gloss 20°, 60°, 85°

Three Angle Gloss Meter

Universal gloss meter for high - semi-low gloss surfaces

The Micro-TRI-Gloss: Your All-in-One Gloss Measurement Solution

Our advanced gloss meter, the Micro-TRI-Gloss, is engineered for unparalleled accuracy in gloss assessment. Equipped with three essential measurement geometries (20°, 60°, and 85°), this instrument provides a comprehensive analysis for finishes across a wide range — from matte to high gloss. The Micro-TRI-Gloss helps you achieve compliance with international standards effortlessly and swiftly detect variations in quality.

Experience the epitome of gloss measurement precision and efficiency. The Micro-TRI-Gloss is the ultimate tool for assessing gloss variations comprehensively, making it an indispensable asset for your quality control process.

Gloss Meter Micro-TRI-Gloss 20°, 60°, 85° Key Features:

• Comprehensive Assessment: Combined 20°, 60°, and 85° angles in one unit for a complete gloss assessment.

• Material Versatility: Versatility across various materials, including paints, plastics, and even mirror-like metals.

• Efficient Analysis: Provides simultaneous measurement and results for all angles, streamlining your workflow.

• Intelligent Measurement: Features intelligent gloss measurement capabilities with seamless communication.

• Reliable Readings: Delivers exceptional repeatability and inter-instrument agreement for trustworthy results.

• Consistent Accuracy: A smart auto-diagnosis feature ensures the instrument provides consistently accurate readings.

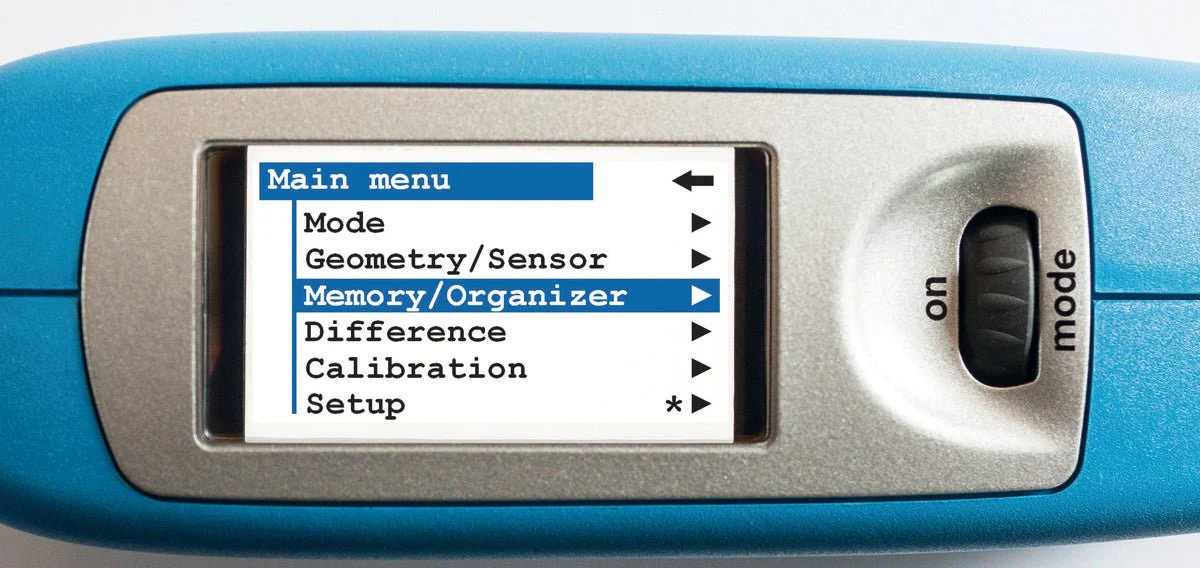

• User-Friendly Operation: A vivid color display allows for easy reading and intuitive use.

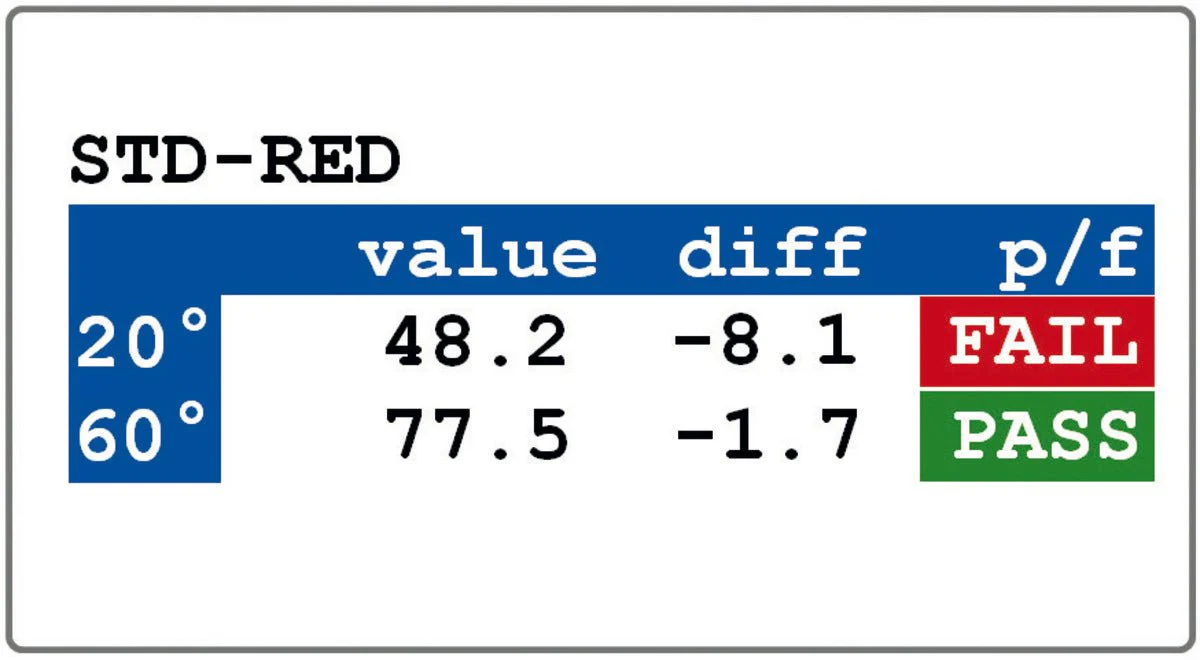

• Rigorous Quality Control: Includes comprehensive features like Statistics, Pass/Fail, and Memory, ideal for QC and field checks.

• Uniformity Assessment: A continuous mode allows for assessing uniformity over large surface areas.

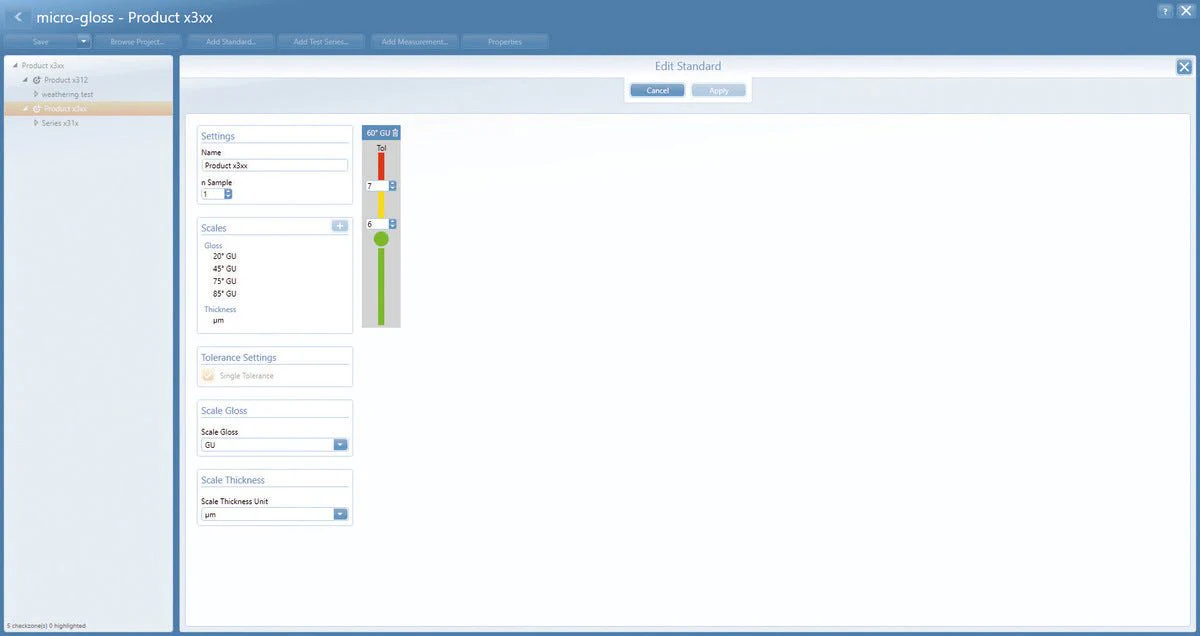

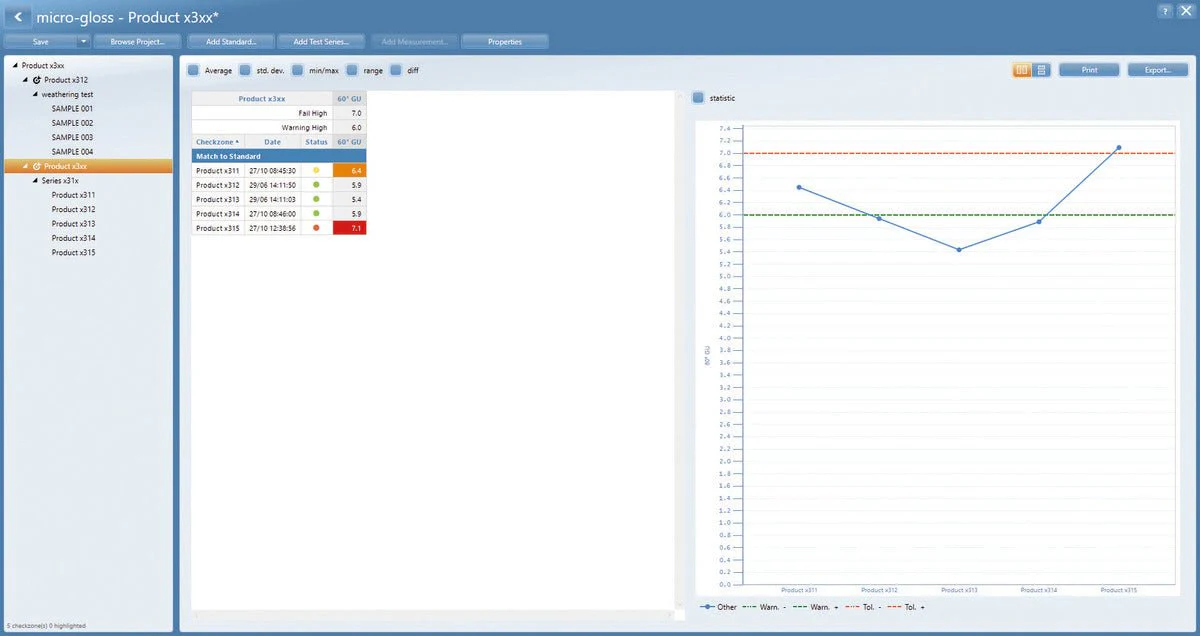

• Instant QC Reports: Utilize the included smart-chart software to generate reports with trend graphs and customizable Pass/Fail limits.

Experience the pinnacle of gloss measurement accuracy and efficiency with the Micro-TRI-Gloss, your go-to solution for superior gloss analysis.

Gloss Meter Micro-TRI-Gloss 20°, 60°, 85° Standard Package includes:

• Glossmeter

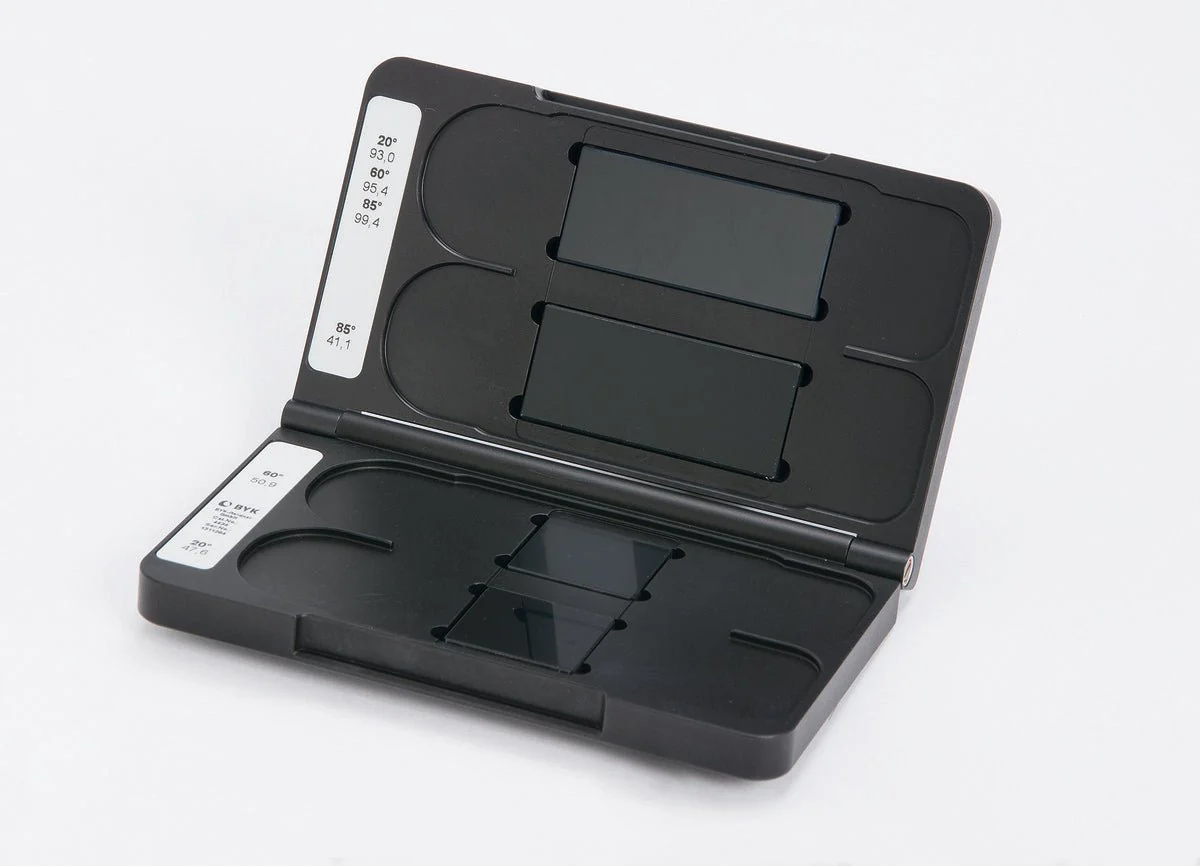

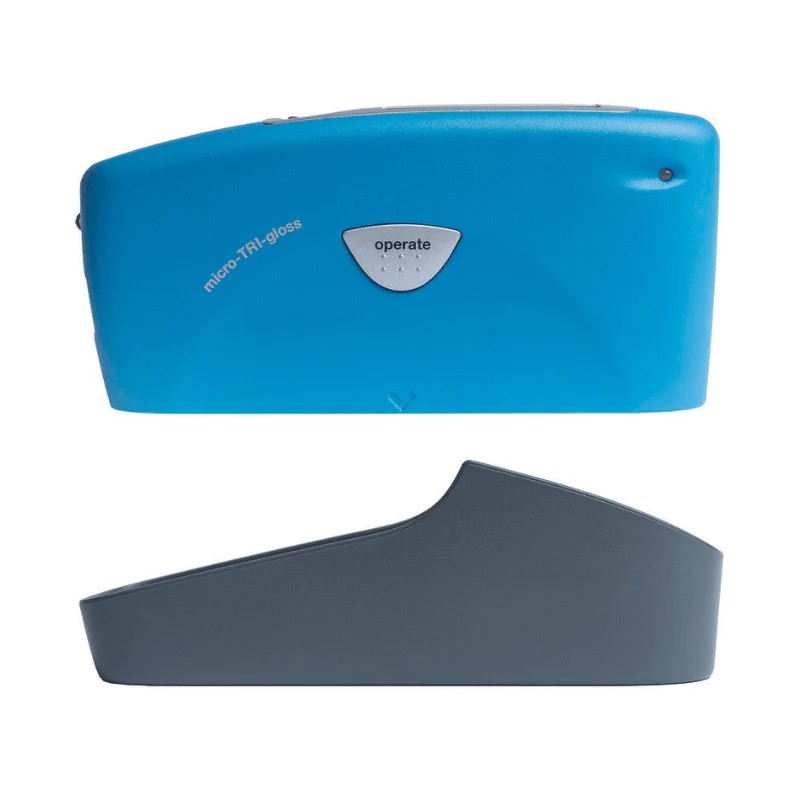

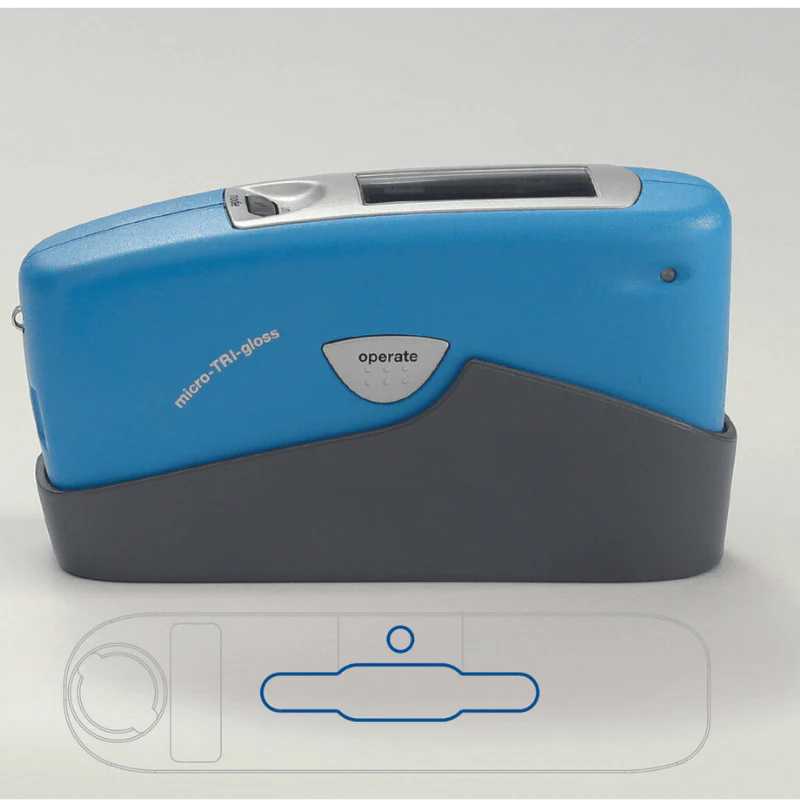

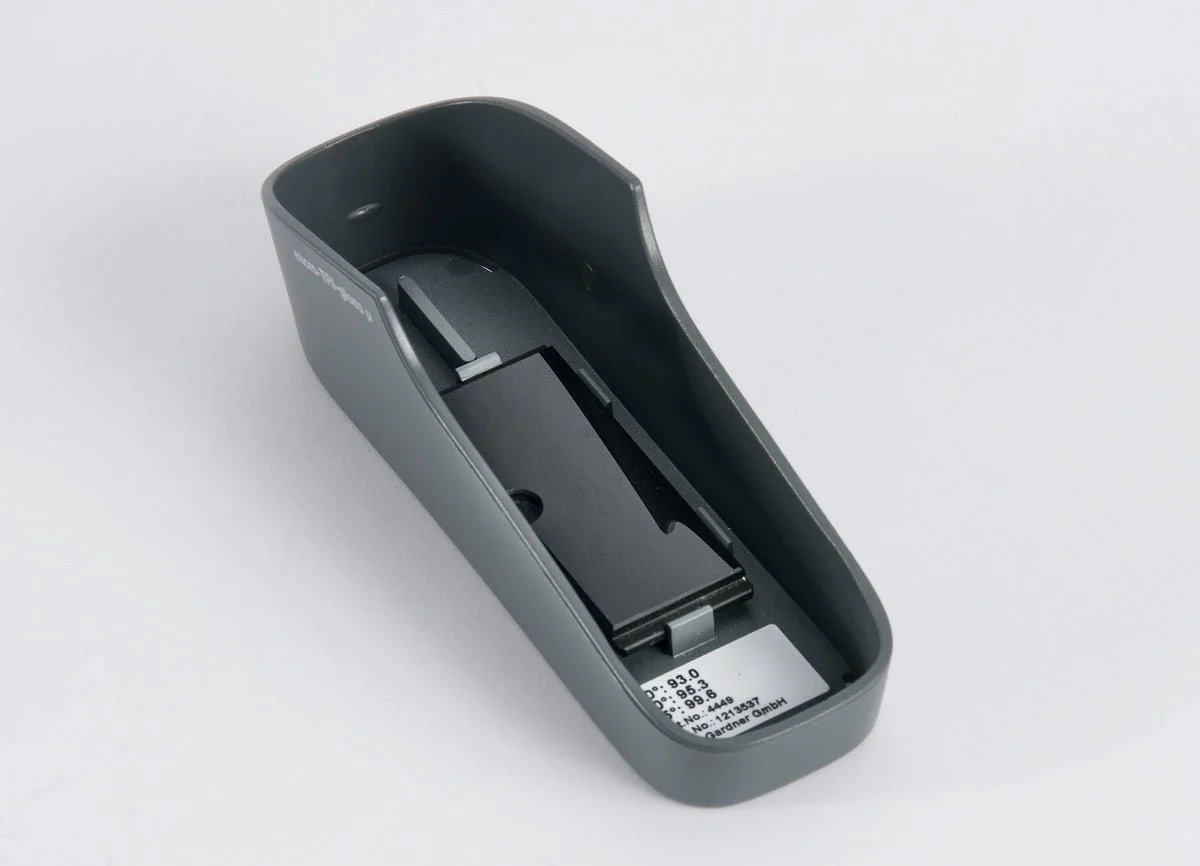

• Calibration holder TRI (4447)

• USB-cable micro-gloss (4405)

• Software with 2 licenses for download: smart-lab Gloss (4866) or smart-process Gloss (4867)

• Battery

• Traceable certificate

• Manual

• Carrying case



Gloss Meter Micro-TRI-Gloss 20°, 60°, 85° Technical Specifications:

Geometry	20°, 60°, 85°
Application	Universal
Measuring Area	20°:  10 x 10 mm 60°:  9 x 15 mm 85°:  5 x 38 mm
Measuring Area	20°:  0.4 x 0.4 in 60°:  0.35 x 0.6 in 85°:  0.2 x 1.5 in
Gloss Measurement
Measuring Range	20°:  0 - 2000 GU 60°:  0 - 1000 GU 85°:  0 - 160 GU
Repeatability	0 - 100 GU:  ± 0.2 GU 100 - 2000 GU:  ± 0.2 %
Reproducibility	0 - 100 GU:  ± 0.5 GU 100 - 2000 GU:  ± 0.5 %
Spectral sensitivity	CIE standard observer for illuminant CIE-C
General
Measuring time	0.5 seconds/geometry
Memory	999 readings with date and time
Interface	USB
Languages	English French German Italian Spanish
Power supply	one 1.5V AA Alkaline Battery, or via USB port
Battery Capacity	4,000 readings
Weight	0.4 kg
Weight	0.9 lb
Operating temperature	15 - 40 °C
Operating temperature	60 - 104 °F
Relative humidity	up to 85 %, non-condensing
Dimensions: L x W x H	15.5 x 4.8 x 7.3 cm
Dimensions: L x W x H	6.1 x 1.9 x 2.9 in
