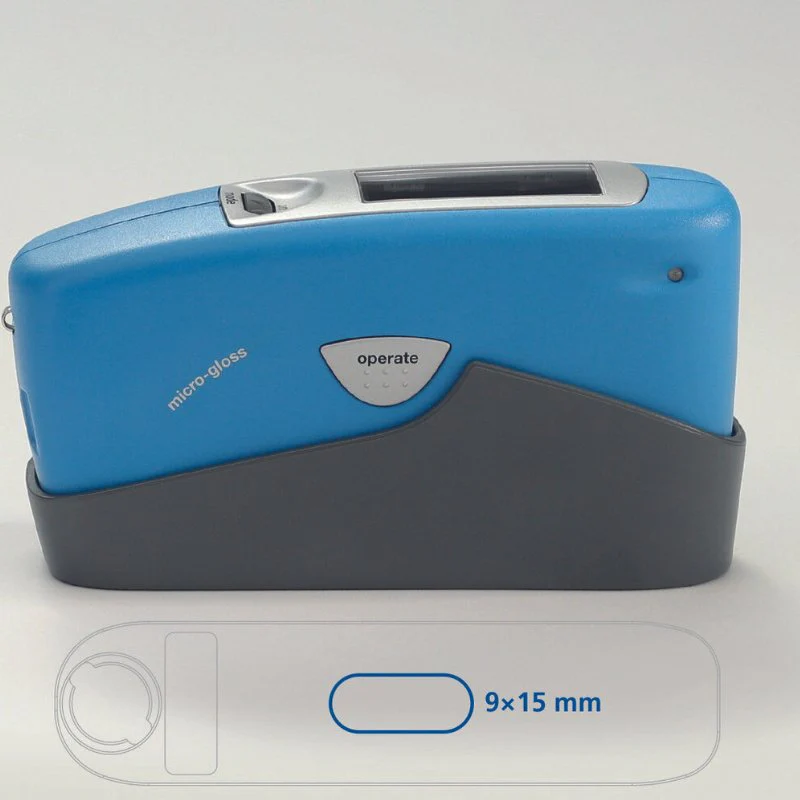

Gloss Meter Micro-Gloss 60° XS

Gloss Meter Micro-Gloss 60° XS

Single Angle Gloss Meter

Gloss meter 60° with ultrasmall measurement port

Micro-Gloss 60° XS: Precision Gloss Measurement for Small Components

The Gloss Meter Micro-Gloss 60° XS stands as the trusted industry benchmark for measuring gloss on small parts and surfaces. It sets the gold standard with its advanced micro-gloss technology, specifically adapted for challenging applications where the measurement area is limited.

The user-friendly interface and intelligent features of the Micro-Gloss 60° XS make the entire process a breeze. It ensures exceptional performance, with superior temperature control and inter-instrument consistency that instills complete confidence in your quality control processes.

Key Features of the Micro-Gloss 60° XS:

• Smart Measurement Capabilities: The Gloss Meter Micro-Gloss 60° XS offers intelligent gloss analysis combined with streamlined data communication for easy integration.

• Outstanding Consistency: Delivers dependable results through unmatched measurement repeatability and agreement between different units.

• Automatic Accuracy Checks: A smart auto-diagnosis function continuously monitors the Gloss Meter Micro-Gloss 60° XS to ensure your readings are always accurate.

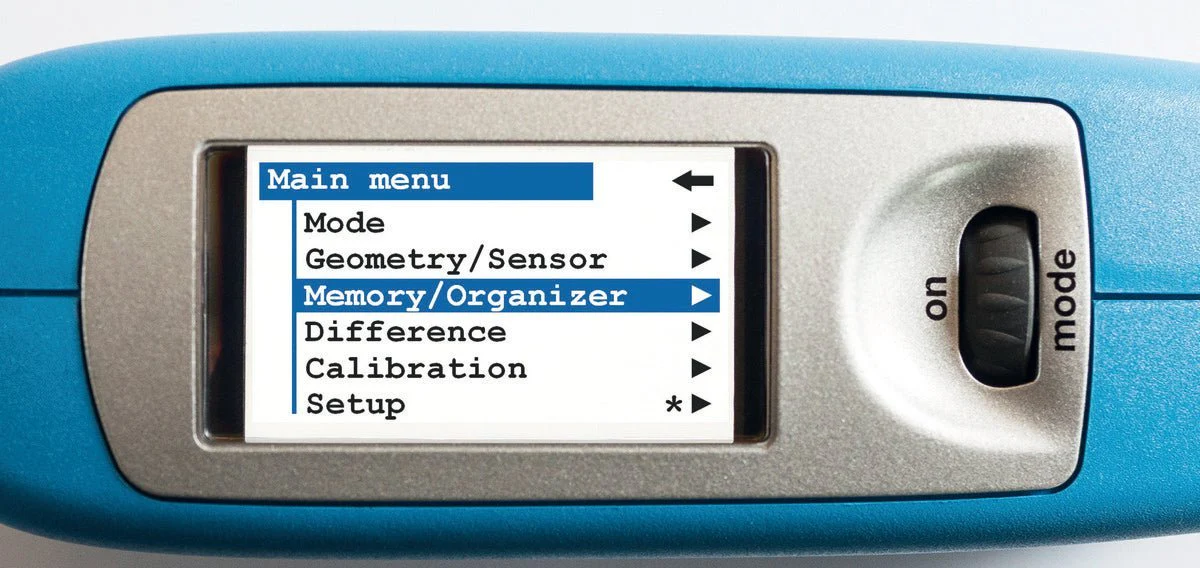

• High-Contrast Color Display: Features a brilliant and vivid screen that makes reading measurements and navigating menus effortless.

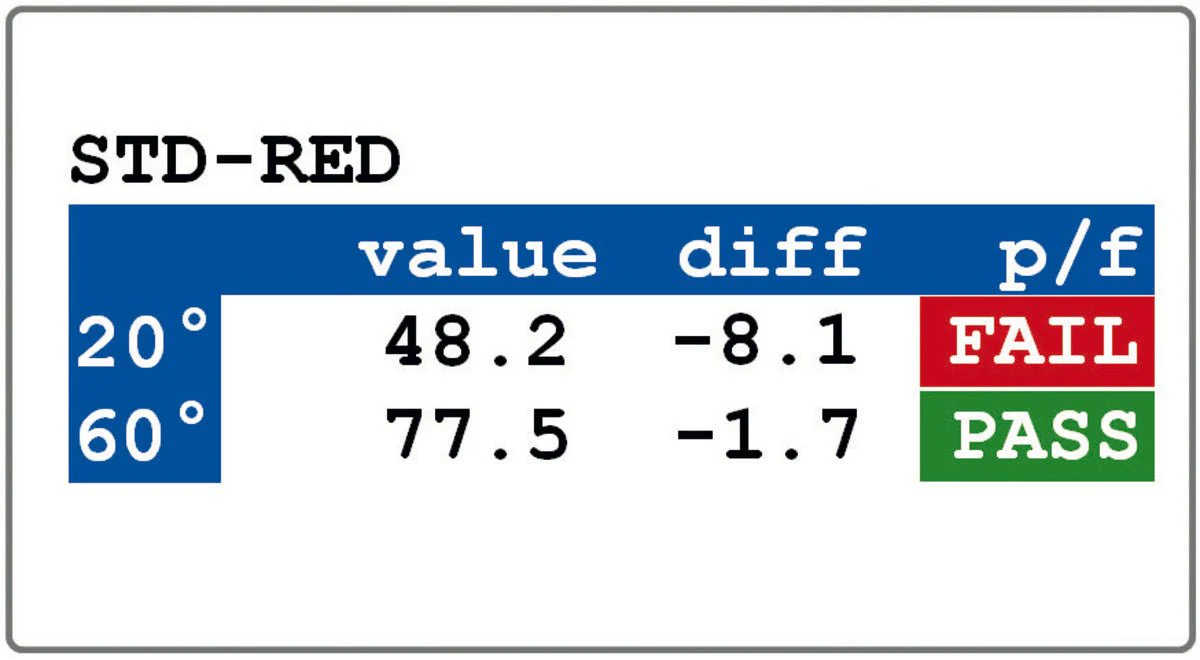

• Integrated QC Functions: The Gloss Meter Micro-Gloss 60° XS comes equipped with a full suite of tools, including statistical analysis, Pass/Fail criteria, and internal memory for comprehensive checks.

• Surface Uniformity Scanning: A continuous measurement mode allows for quick evaluation of gloss consistency across a surface.

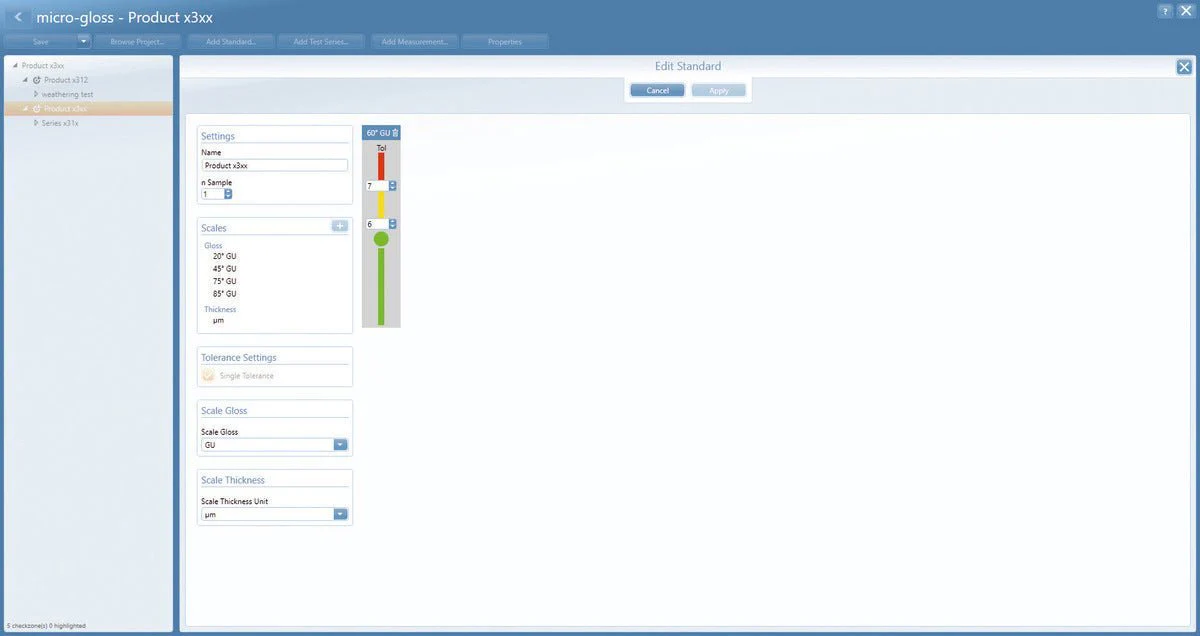

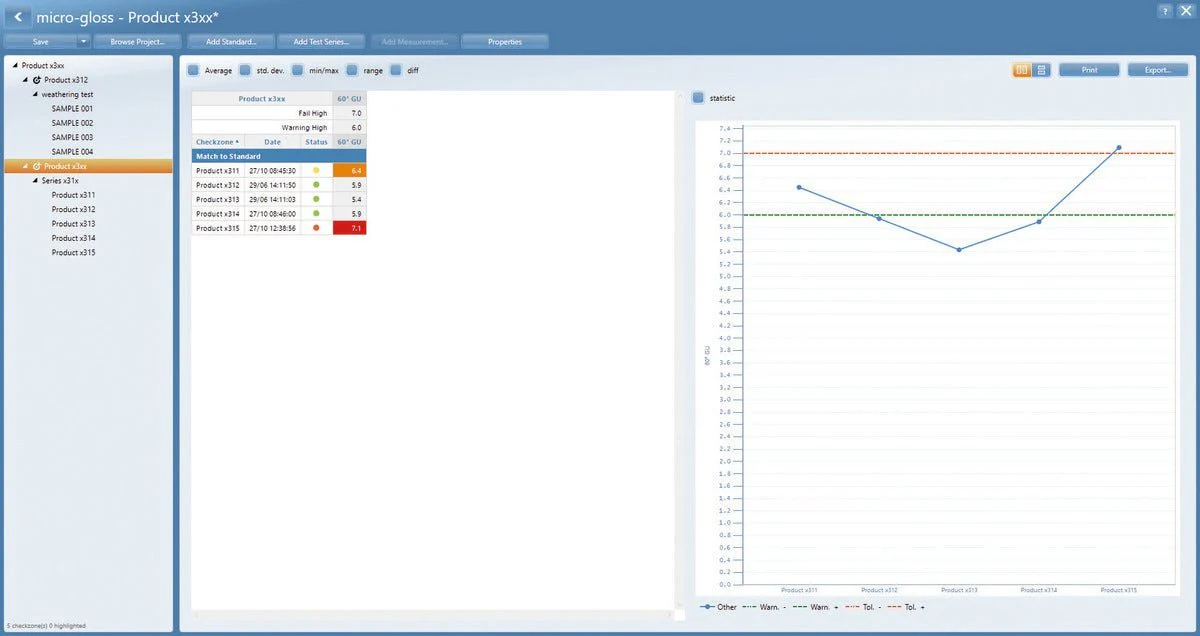

• Professional Reporting Software: Includes smart-chart software to generate instant QC reports, complete with trend graphs and customizable tolerance limits.

Experience the pinnacle of gloss measurement accuracy and efficiency with the Micro-Gloss 60° XS, your go-to solution for superior gloss analysis on the smallest of parts.

Gloss Meter Micro-Gloss 60° XS Standard Package includes:

• Glossmeter

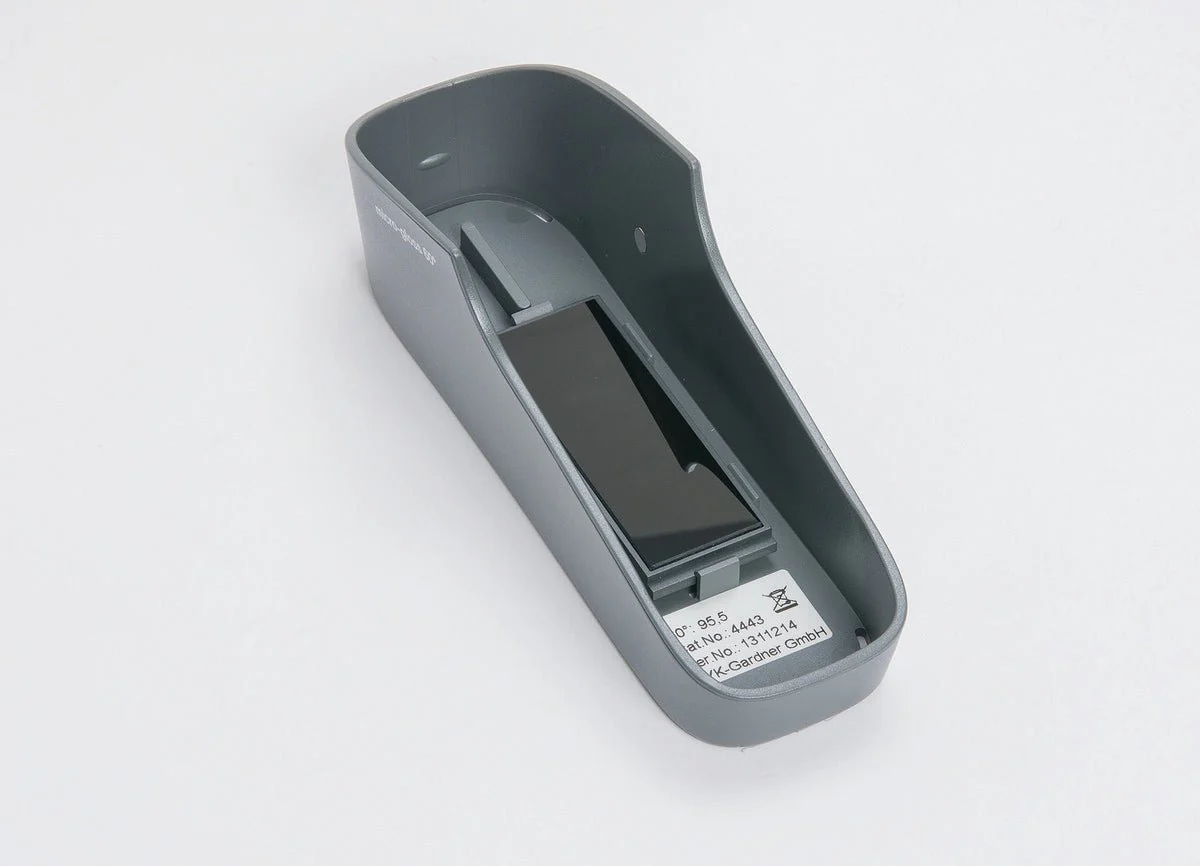

• Calibration holder 60° XS (4559)

• USB-cable micro-gloss (4405)

• Software with 2 licenses for download: smart-lab Gloss (4866) or smart-process Gloss (4867)

• Battery

• Traceable certificate

• Manual

• Carrying case

Gloss Meter Micro-Gloss 60° XS Technical Specifications:

Geometry	60°
Measurement Area / Performance	small area
Application	semi-gloss
Measuring Area	2 x 4 mm
Measuring Area	0.08 x 0.16 in
Gloss Measurement
Measuring Range	0 - 1000 GU
Repeatability	0 - 100 GU:  ± 0.2 GU 100 - 2000 GU:  ± 0.2 %
Reproducibility	0 - 100 GU:  ± 0.5 GU 100 - 2000 GU:  ± 0.5 %
Spectral sensitivity	CIE standard observer for illuminant CIE-C
General
Measuring time	0.5 seconds/geometry
Memory	999 readings with date and time
Interface	USB
Languages	English French German Italian Spanish
Power supply	one 1.5V AA Alkaline Battery, or via USB port
Battery Capacity	4,000 readings
Weight	0.4 kg
Weight	0.9 lb
Operating temperature	15 - 40 °C
Operating temperature	60 - 104 °F
Relative humidity	up to 85 %, non-condensing
Dimensions: L x W x H	15.5 x 4.8 x 7.3 cm
Dimensions: L x W x H	6.1 x 1.9 x 2.9 in
