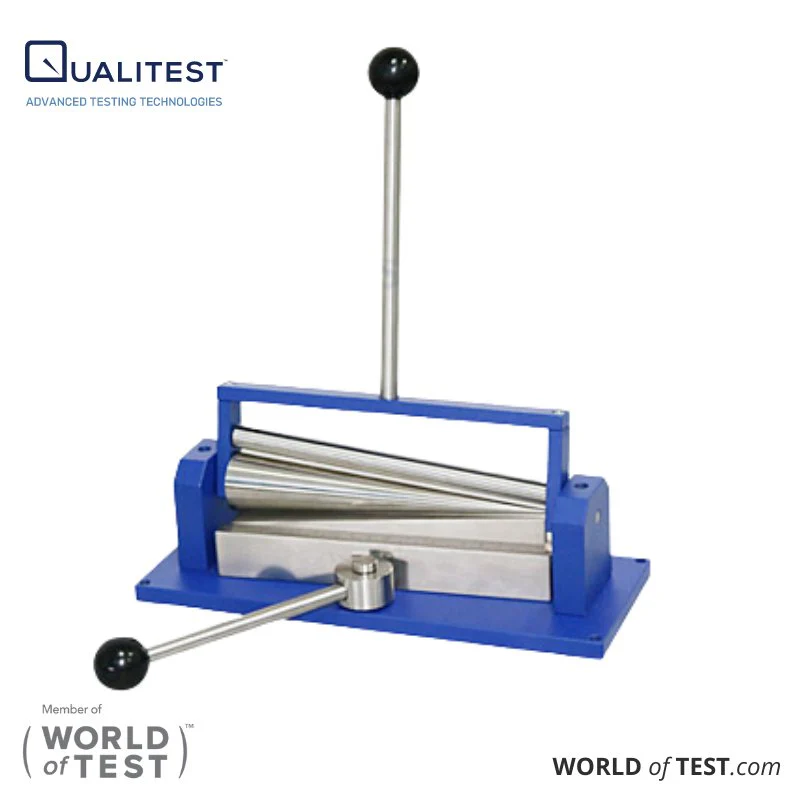

Conical Mandrel Bend Tester

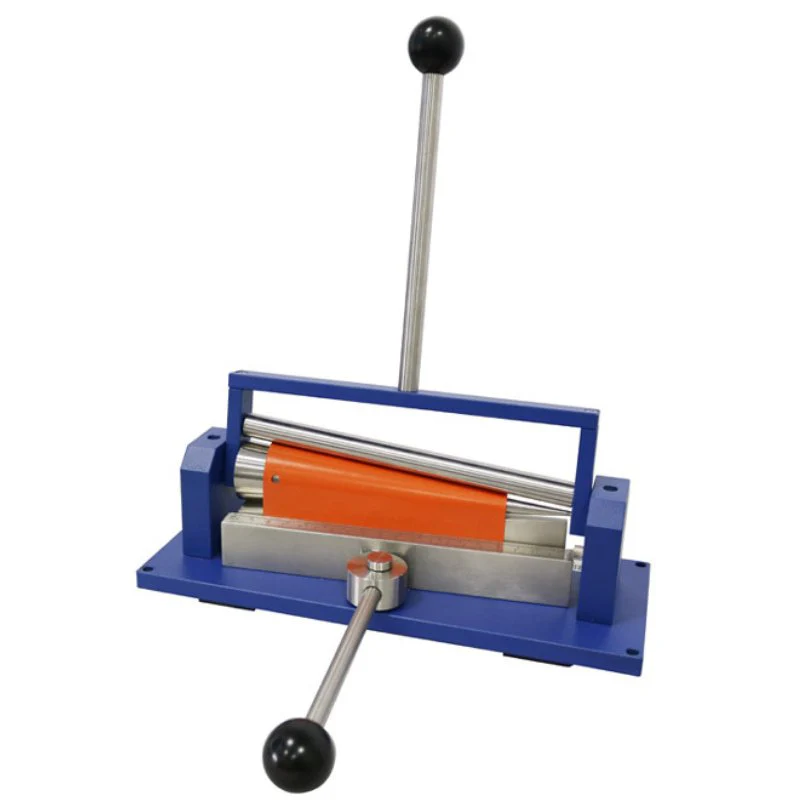

The QT-CMT Conical Mandrel Tester is designed to assess the cracking and flexibility of paint coatings on metal panels. These panels are clamped in position and formed around the conical mandrel by rotating the roller frame. The coated surface, subjected to standard conditions, is evaluated for crack resistance and detachment from the metal substrate. This tester complies with ASTM D 522, D1737, BS 3900E11, and ISO 6860 Standards.

This instrument enables easy identification, in a single operation, of coating failures at specified diameters over part or the entire length of the mandrel.

Conical Mandrel Bend Tester Technical Specifications:

Conical Mandrel Dimensions	Large end: Φ38±0.1mm Small end: Φ3.1±0.1mm Length: 203±0.3mm
Clamping Device	A new clamping device facilitates faster and more convenient sample fixing.
Suitable Test Panel Sizes	Length ≤ 200mm Width < 100mm Thickness ≤ 0.8mm
Overall Dimensions	300mm × 120mm × 83mm (L × W × H)
Calibration Certification	Comes with Calibration Certification
Weight	7kg
