Gardner-type Impact Testers – Tubular Impact Tester

The Gardner Impact test method evaluates the resistance of a dry film of paint, varnish, or related products to cracking or peeling from a substrate under deformation caused by a falling weight. The test involves applying the coating under examination to suitable, thin metal panels. Once the coating has cured, a standard weight is dropped onto each panel from a height sufficient to induce deformation in both the coating and the substrate.

This test can be conducted with the coated side of the panel facing either upwards, towards the falling weight, or downwards, away from the weight. By incrementally increasing the drop height, the point of failure can be determined. Typically, films fail due to cracking, which can be more easily observed using a magnifier.

The Gardner Impact Test method was developed together with the Society of the Plastics Industry (SPI) for evaluating impact resistance of rigid sheets of PVC (30-60 mils thick) and other plastics and materials exceeding the 160 inch-pounds limit of the Heavy-Duty Impact Tester.

Gardner-type Impact testers can be used in two ways:

1. Pass/fail test: Conducted at a specific drop height and with a designated mass to assess compliance with particular specifications.
2. Classification test: Gradually increasing the drop height and/or mass to determine the minimum mass and/or drop height at which the coating cracks or peels from its substrate.

Qualitest offers a range of Gardner-type impact testers designed to meet various standards. These testers typically include a solid base with guide tube support, different weight hammers, falling weights, and punches of various diameters. Users have the flexibility to select different hammer sizes and weights to simulate painting conditions in different environments.

Available Model:

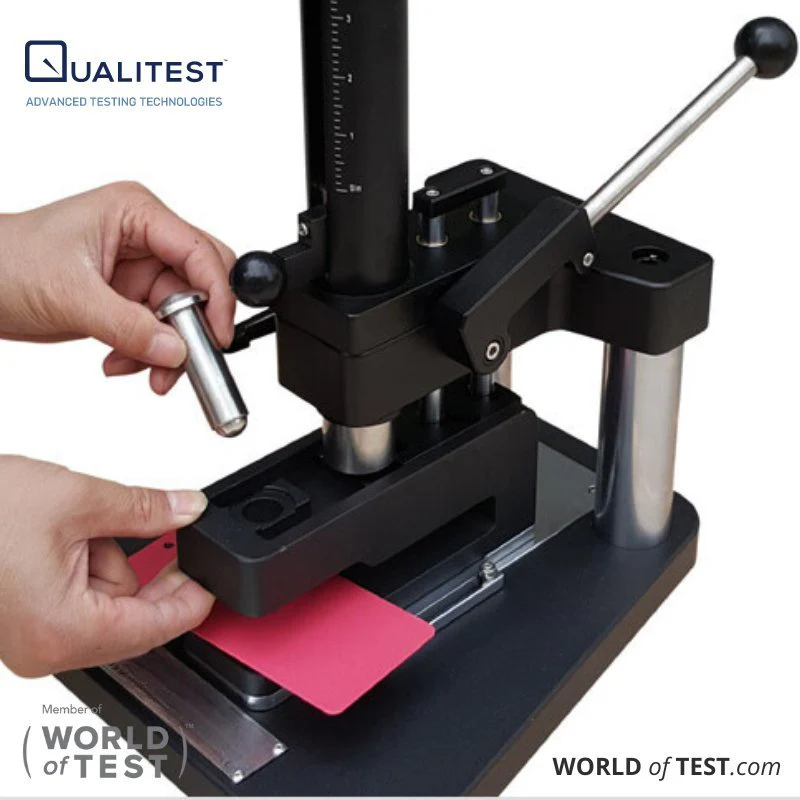

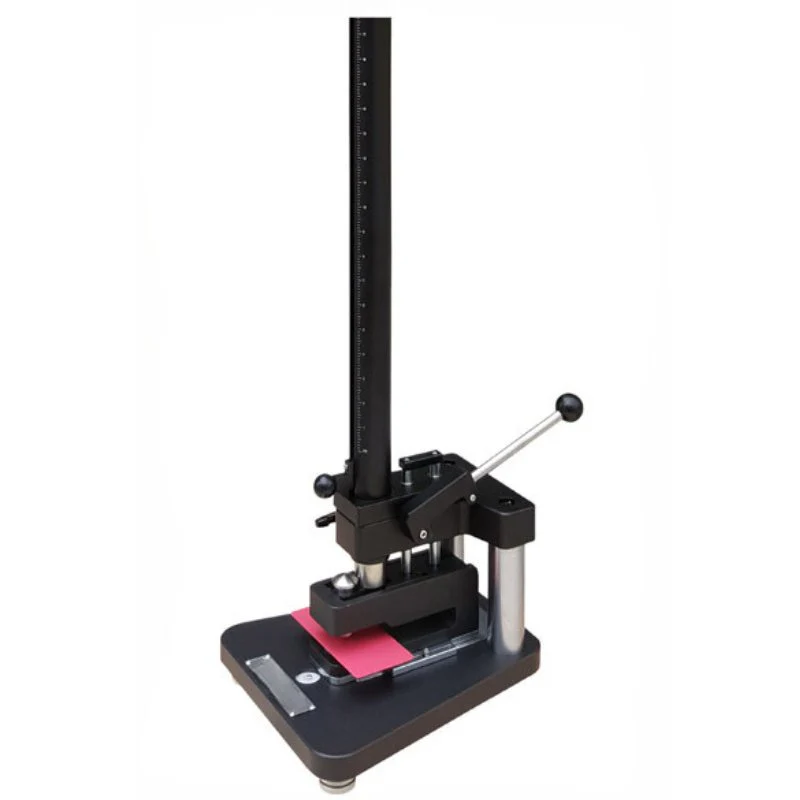

• Heavy Duty Gardner-type Tubular Impact Tester Model Q-HDGIT
  New design, ø 12.7mm+ø 15.9mm；ASTM D2794 / ISO 6272.2

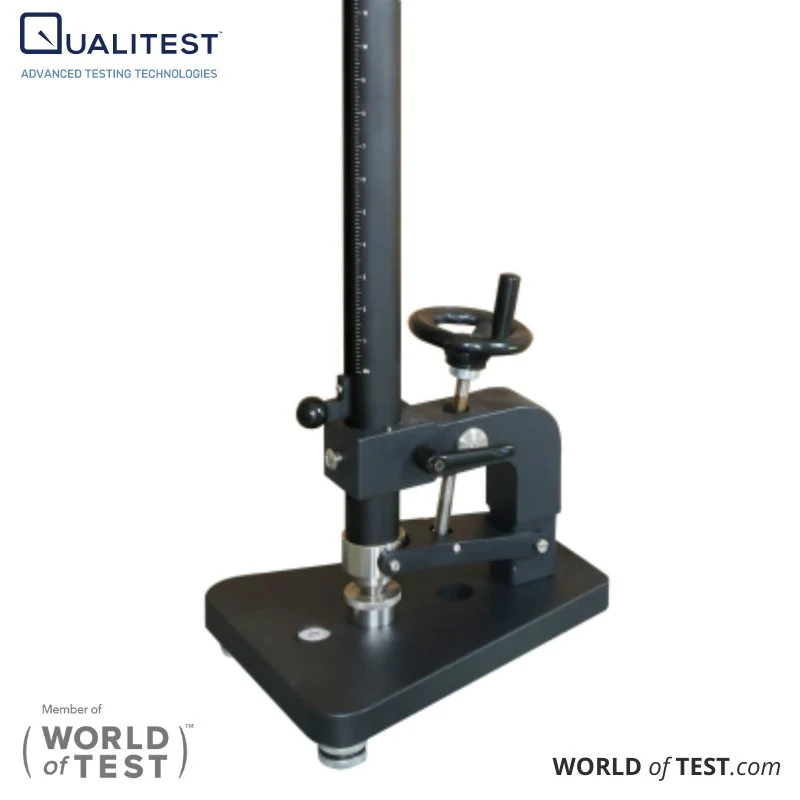

• ISO Gardner-type Tubular Impact Tester Model Q-ISOGIT
  ø 20mm；ISO 6272.1

Gardner-type Impact Testers – Tubular Impact Tester Technical Specifications:

Ordering Information → Technical Parameter↓	Heavy Duty Gardner-type Tubular Impact Tester Q-HDGIT	ISO Gardner-type Tubular Impact Tester Q-ISOGIT
Features	- Latest design facilitates easier and faster changes of punch, weight, and die. - The aluminum oxide guide tube is crafted using special technology, ensuring resistance to fading and rust. - Special structural design ensures the impact groove remains aligned indefinitely, eliminating the need for calibration. - Includes a Certificate for added assurance.	- Features ring slots for height limitation, enabling operators to conveniently adjust impact depth for different requirements. - Crafted using special technology, the aluminum oxide guide tube ensures resistance to fading and rust. - Precision-controlled gap between the guide tube and weight, achieved through special mold production. - Includes a Certificate for added assurance.
Instrument scale length	0-100cm（40inch)
Graduation	1cm

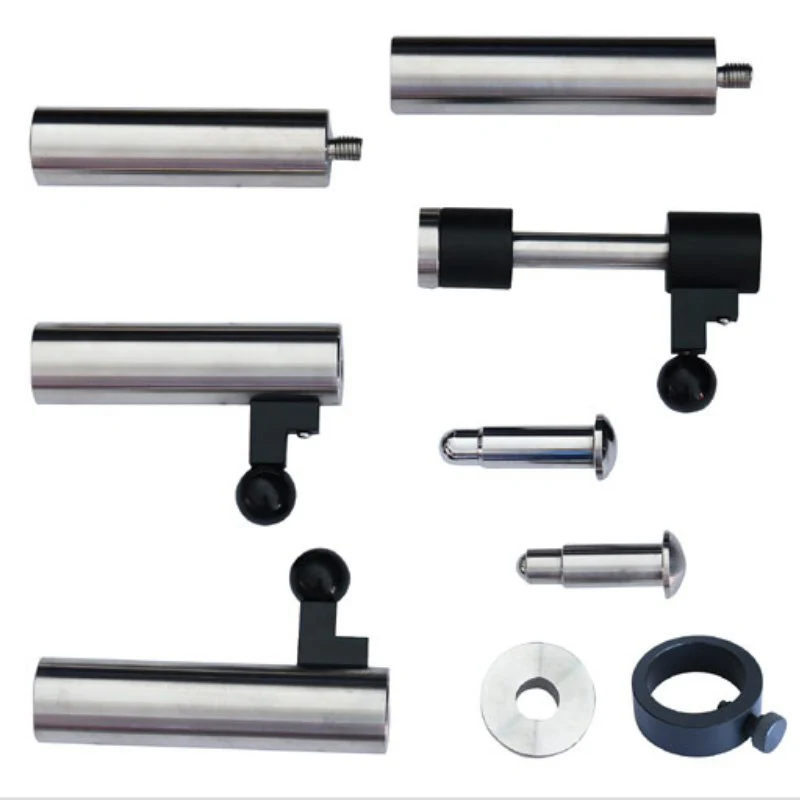

Falling Weights	1000g（2 pcs） 300g（1 pc） 2 lb（2 pcs）	Main weight with indenter：1000g（1 pc） Additional weight：1000g（1 pc） Additional weight：2000g（1 pc）
Indenter Diameter	Ф 12.7mm（1/2 inch） Ф 15.9mm（5/8 inch）	Ф 20 mm
Diameter Inside The Die	Ф 16.3mm	Ф 27 mm
Standards	ASTM D 2794 ISO 6272.2	ISO 6272.1
